3//8",7/16",1/2",5/8",3/4",1",11/4"
0.150"-0.06"
Polyester
Manual or Machine Use
Eco-Friendly
YES
China
Green/Black/White/Other Customized Colors
9,11,12,16,19,25,32
0.38-1.52
| Availability: | |
|---|---|

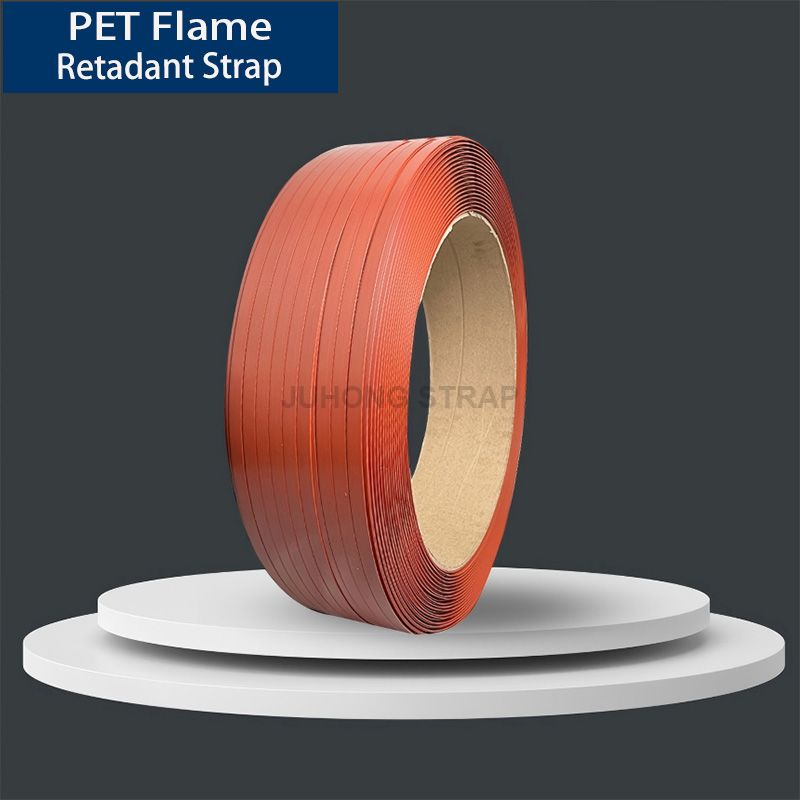

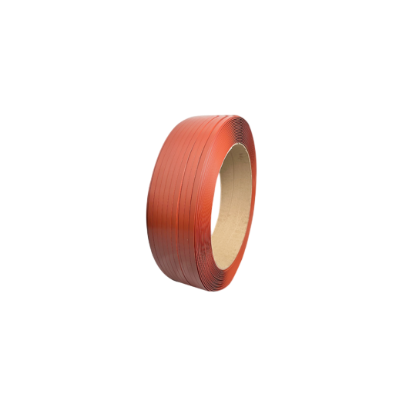

JUHONG PET Strapping Overview

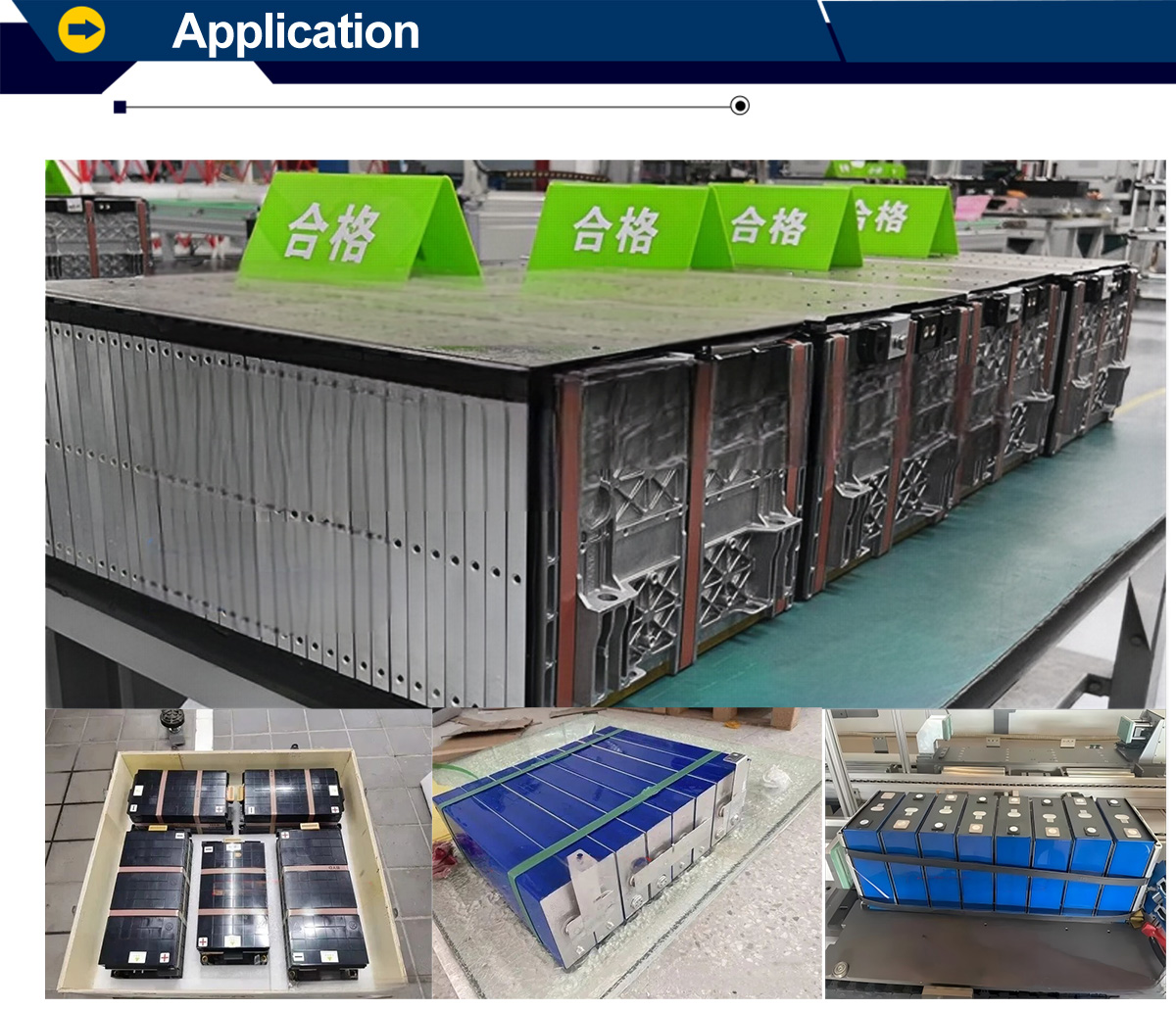

The flame-retardant PET Strapping is made by using the high-temperature cross-linking flame-retardant modification technology to produce PET Strapping. Compared with ordinary PET Strapping, it has the advantages of high strength, large tensile force, strong flame retardancy, high temperature resistance, and good thermal stability. The flame retardant grade reaches V0 level. During high-temperature combustion, it can quickly dissolve without catching fire, and will not produce toxic gases or harmful substances. Thanks to its superior performance, this product has replaced steel strips and is widely used for packaging of transformer cells, automotive lithium batteries, battery modules, etc.
he self-extinguishing time during combustion is ≤ 10 seconds, effectively reducing the fire risk caused by thermal runaway in lithium battery modules;
The surface contains no metal components. During bundling, no sparks are generated due to friction, eliminating potential safety hazards.
Tensile strength ≥ 2000 kgf, comparable to steel strips but with a weight only 1/6 of that of steel strips;
Elongation rate remains stable at 12-18%, maintaining a 5% tightening force for a long time to prevent displacement and loosening during the transportation of the module.
Temperature tolerance range: -40°C to 120°C, meeting the requirements for high-temperature aging tests of lithium battery modules and low-temperature storage;Corrosion-resistant and UV-resistant, capable of adapting to humid warehouses and outdoor transportation environments
Certified by SGS, free of halogens and heavy metals, compliant with RoHS and international lithium battery transportation standards.
| Parameter Name | Data Results | ||
| Flame retardant | Horizontal combustion meets HB grade Vertical combustion meets V0 grade | ||
| Tensile fracture stress | >=450 Mpa | ||
| Tensile fracture strain | <=15% | ||
| Stable ioint strength | <=360 Mpa | ||
| Insulation properties | DC 1000V insulation resistance>6000M | ||
| Resistant to heat and humidity | Interface tensile stress retention rate>=72%(324Mpa) | ||
| Resistant to heat air oxidation | Interface tensile stress retention rate>=72%(324Map) | ||
| Anti-Sillicone oil oxidation | Interface tensile stress retention rate>=72%(324Map) |
Transportation Resilience: Our strapping remains intact and no cracking during transit, minimizing the risk of load shifts or product damage.
