Ridge™ Steel Strapping – Budget‑Friendly Regular‑Duty Steel Banding for Pallet & Export Packaging

Core Benefits & Product Overview – Affordable Steel Strapping for Light to Medium Loads

• It is  designed for demands that  require metal straps with a common tensile strength grade of 750N/mm².

• There are three surface treatment methods for our steel banding.

Full Range of Surface Treatments: Comparison of Blue Tempered, Painted, and Galvanized Finishes for Anti-Rust Needs

Blue Tempered & Waxed

The surface of the steel metal strapping determines its anti-rust property. Therefore, "bare wax" has no anti-rust effect, while the common "blue tempered & wax" has already shown a satisfactory protective effect.

Black Painted & Waxed

If better anti-rust quality is required, after bluing heat treatment, apply black varnished, then drying it and then waxing. In this way, a better anti-rust effect can be achieved.

Green Painted & Waxed

As a large-scale metal strapping manufacturer in China, the colors of our painted steel strips can be customized, such as black, green, red, etc.

Galvanized

zinc dust varnished has the best anti-rust effect. We have two types of galvanized steel stripping,One is hot rolled steel strapping,the other one is cold rolled steel strapping

Precision Manufacturing Process: Ensuring Smooth Edges and Burr Removal for Operator Safety

Focusing on meticulous craftsmanship and quality, we forge outstanding steel strips

Smooth edge with burr removal: Our steel strapping undergoes a proprietary deburring process, ensuring smooth, rounded edges that eliminate the risk of cuts or abrasions during handling. This feature not only enhances operator safety but also minimizes damage to packaged goods.

Coil Formats & Winding Types – Ribbon, Oscillated & Jumbo Coils for Different Packaging Methods

Ridge™Steel Strapping have three wind ways

1.Ribbon‑Wound Coils – Ideal for Manual or Pneumatic Strapping Tools (Light/Medium Pallets)

Ribbon wound coil steel strapping with a width 12.7mm/16mm/19mm is usually 25-30kgs per roll.25mm steel strapping:36-40kgs per rolls.32mm steel banding:45-50kgs per roll.around 1 ton per pallet.Ribbon is  generally suitable for manual strapping tools and pneumatic strapping tools.

2.Oscillated‑Wound Coils – Balanced Format for Semi‑Automatic or Automatic Strapping Use

Oscillate wound coil steel strapping with a width 12.7mm/16mm/19mm is usually 40-50kgs per roll.12-18 rolls per pallet.Oscillated is generally suitable for manual strapping tools or pneumatic strapping tools or steel strapping machine.

3.Jumbo / Bulk Coils – Economical Bulk Format for Warehouse, High‑Volume Export or Large Batches

Jumbo wound coil steel strapping with a width 32mm is usually 180kgs/280kgs/360kgs/400kgs/500kgs/1000kgs.Jumbo is generally suitable for steel strapping machine.

4.Customization & OEM / Private‑Label Services – Custom Strap Sizes, Coil Formats, Surface Treatments & Packaging for Global Buyers

The dimensions and weights of the steel strips mentioned above are some of our more common standards. If you need other width dimensions or required weights, we can accept customization. Welcome to consult!

Technical Specifications – Strap Width, Thickness, Tensile Strength & Load Capacity Chart

Dimensions Range: Available in a wide range of widths (9.5-50mm) and thicknesses (0.3-1.27mm).

Weight Range: Roll weights vary from 5kg mini rolls to 1000kg jumbo rolls.

Stable Tensile Strength and elongation rate: Engineered with multiple tensile mold, regular tensile, high tensile and low elongation, high tensile and high elongation. our strapping resists breakage even under extreme tension, securing cargo integrity throughout rigorous handling processes.

Downloadable Resources & Documentation – Specification Sheets, Test Reports & Export Packaging Guidelines for International Clients

JuHong Packing materials steel strapping specification(1).pdf

Juhong Packing Materials'  Brochure.pdf

Steel Strapping SGS Certification.pdf

Quality Control & Compliance – Factory‑Direct Production, ISO / ASTM / EN / GB Standards, Safe Edge‑Deburring, Consistent Band Integrity

ISO9001

ISO14001

ISO45001

1-1/4 Steel Strapping SGS

3/4 Steel Strapping SGS

Ridge™Steel Strapping Packaging

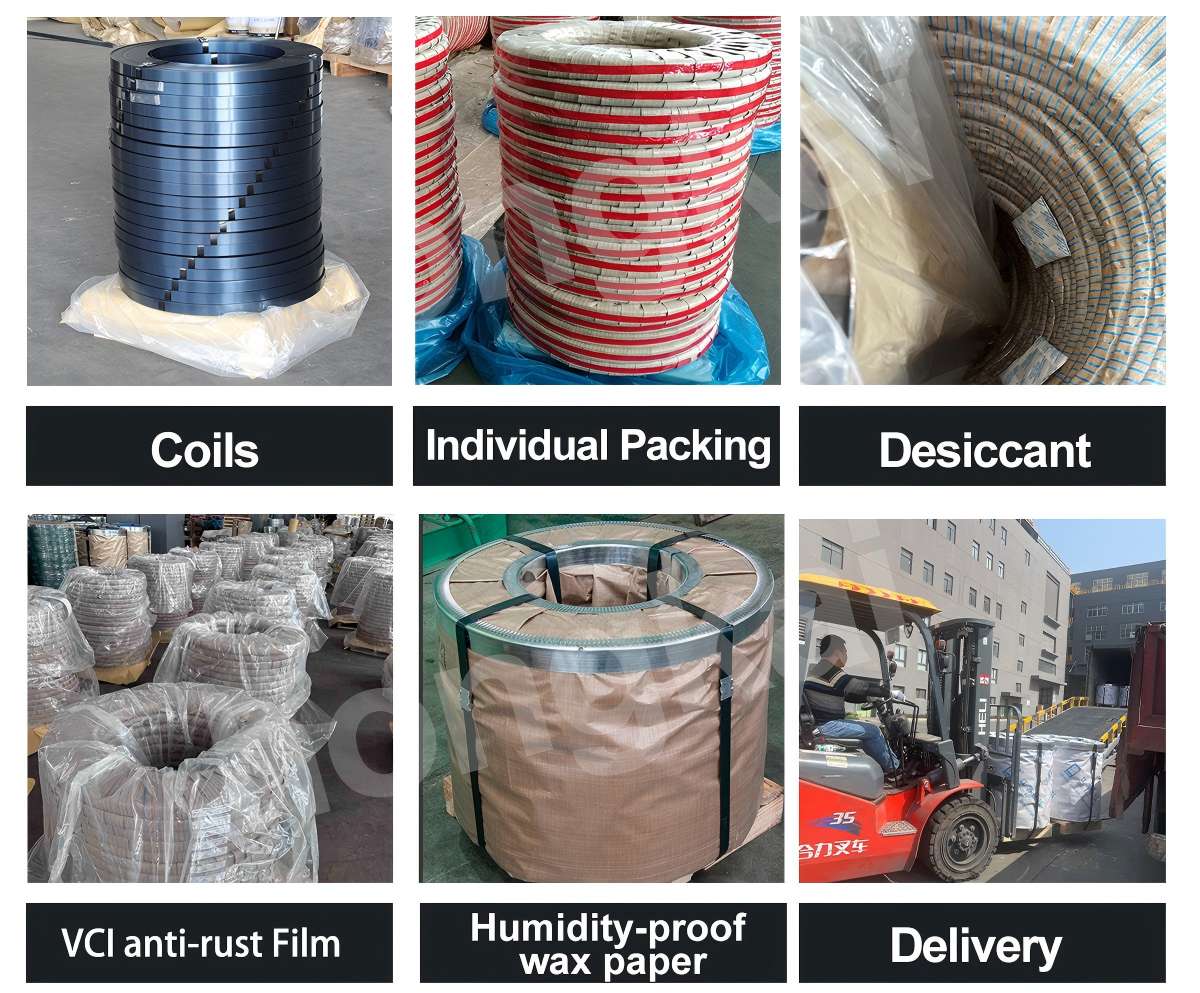

Sea-worthy packaging:Each pallet is equipped with metal rust-preventive desiccants inside,enveloped with VCI anti-rust film,covered with moisture-resistant wax paper externally,reinforced with four straps.Fixed on fumigation free wooden pallets or steel pallets.

Recommended Applications & Use Cases – Pallets, Cartons, Building Materials, Light Industry & General Export Cargo

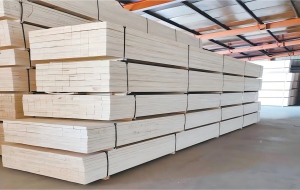

Lumber Packaging

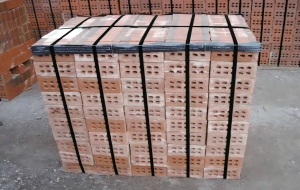

Brick Packaging

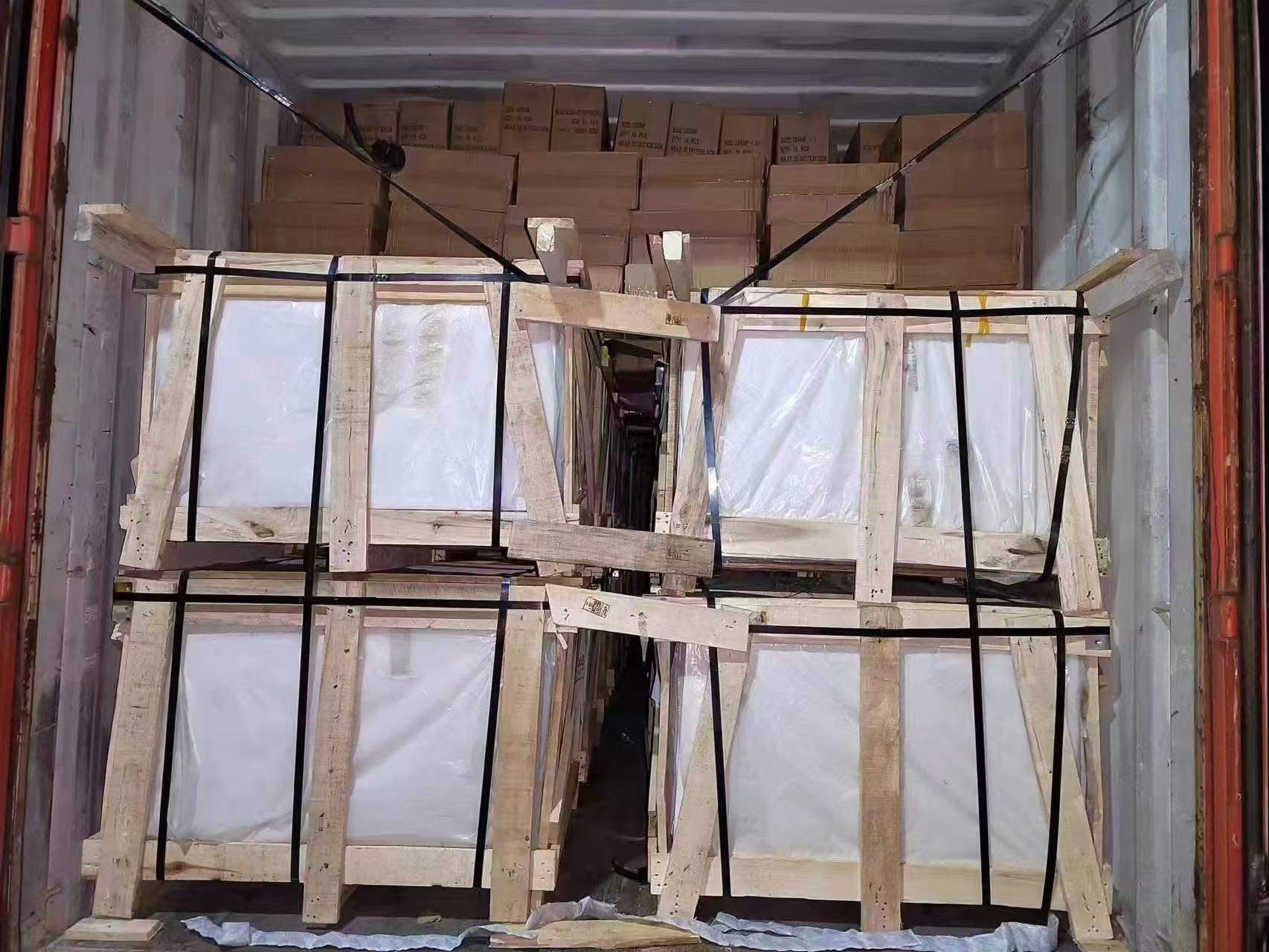

Container Shipping

FAQ — Ridge Steel Strapping (Regular-Duty Steel Banding for Pallets & Export Packaging)

Q1: What is Ridge Steel Strapping and what kind of applications is it suitable for?

A: Ridge Steel Strapping is a regular-duty carbon steel band designed for light to medium load securing — ideal for pallet bundling, carton packaging, wood crates, brick bundles, and general export cargo where heavy-coil-grade tensile strength is not required. Its smooth-edge, consistent band quality and compatibility with standard strapping tools make it a cost-effective choice for everyday industrial packaging, export pallets, brick, wood or construction-material bundling.

Q2: What makes Ridge™ Steel Strapping the ideal choice for securing building materials?

A :Ridge™ Steel Strapping is an economic yet robust Regular Duty solution engineered with a 750 N/mm² (750MPa) tensile strength, which is perfectly suited for medium-to-heavy loads in the construction sector. It is specifically designed to handle materials like bricks, stones, and wood. Its major benefit is its exceptional cost-effectiveness—it delivers strong, dependable heavy-duty securement at a price up to 15% lower than the market average.

Q3: What is the "Edge Strengthening Treatment," and how does it prevent damage?

A :The Edge Strengthening Treatment is a proprietary manufacturing process that minimizes the sharpness of the strap edges. This feature provides two key benefits:

1. Reduced Wear: It lowers the risk of corner wear and damage by up to 90% during tensioning and transit, protecting your cargo.

2. Operator Safety: Our proprietary burr removal technology ensures smooth edges, significantly improving operator safety during manual handling and application.

Q4: What surface finishes are available and how do I choose the right finish for my shipping or storage environment?

A: Ridge straps are offered in multiple surface finishes: waxed/painted, galvanized (zinc-coated), or custom coatings.

• Use waxed or painted finish for dry-storage, domestic transport or short-term shipments.

• Use galvanized / zinc-coated finish for export, container shipping, humid or coastal climates — the zinc layer significantly improves corrosion resistance, extending service life and maintaining safety during long-distance transport.

• Custom color or coating finishes (private-label / OEM) are available for buyers needing special appearance or branding.

Q5: What coil types and winding formats does Ridge offer and how do I choose the right coil type for my packing method or tools?

A: Ridge Steel Strapping is supplied in various coil/winding formats — including ribbon-wound (RW), oscillated-wound (OW), and jumbo/bulk coils. Each serves different needs:

• Ribbon-wound coils — suitable for manual or pneumatic strapping tools used for pallets, cartons or light bundles.

• Oscillated-wound coils — balanced format for semi-automatic or automatic strapping, good for medium-volume packaging or mixed loads.

• Jumbo / bulk coils — efficient and cost-effective for high-volume orders, warehouse packing, or export pallets requiring large strap usage.

When selecting coil type, consider your tooling (manual / pneumatic / machine), load weight/size, and packaging volume or frequency.

Q6: What are the technical specifications available (width, thickness, tensile strength), and how to choose correct spec for my cargo?

A: Ridge Steel Strapping is available in a range of widths, thicknesses and strap dimensions to suit different cargo types — from light pallet loads to heavier bundled goods. Standard widths (e.g. 12.7 mm, 16 mm, 19 mm) and varying thicknesses enable flexibility. Matching strap spec to cargo weight, shape and packaging method ensures secure bundling and minimizes risk of strap failure or load shifting.

When selecting:

• Use narrower/ thinner strap for lighter pallets or cartons.

• Use wider/ thicker strap if load weight is higher or bundles are larger/heavier.

Q7: What export-ready packaging and shipping precautions are applied to ensure safe delivery for overseas customers?

A: For export orders, Ridge straps can be packed in export-grade packaging: individual coils wrapped in VCI anti-rust paper or film, palletized bundles with moisture-proof film, desiccants if needed, and secure outer wrapping for container loading. This export-ready packing protects against corrosion, moisture, and damage during long-distance shipping — essential for container shipments, overseas freight and storage in humid climates.Q8: What types of cargo or industry sectors commonly use Ridge Steel Strapping (light/medium-duty banding)?

Q8: What are the key safety and handling tips when using steel strapping like Ridge?

A: When applying steel strapping, ensure correct tension — over-tightening can damage goods or snap the strap; too loose can result in shifting loads. Always use appropriate tools (manual, pneumatic, or machine) and inspect strap edges and coil ends for burrs or sharp edges to avoid safety risks. Regular tool maintenance and correct sealing method are also critical for secure bundling.
