JUHONG
5/8", 3/4" ,1", 1-1/4"
0.02" ,0.023", 0.028" ,0.031" ,0.035"
Manual or Full Automatic
Durable
SGS,ISO
16,19,25,32
0.51,0.58,0.71,0.79,0.89
406mm
Colour: | |
---|---|
Availability: | |
Dual Defense, Zero-Rust Guarantee

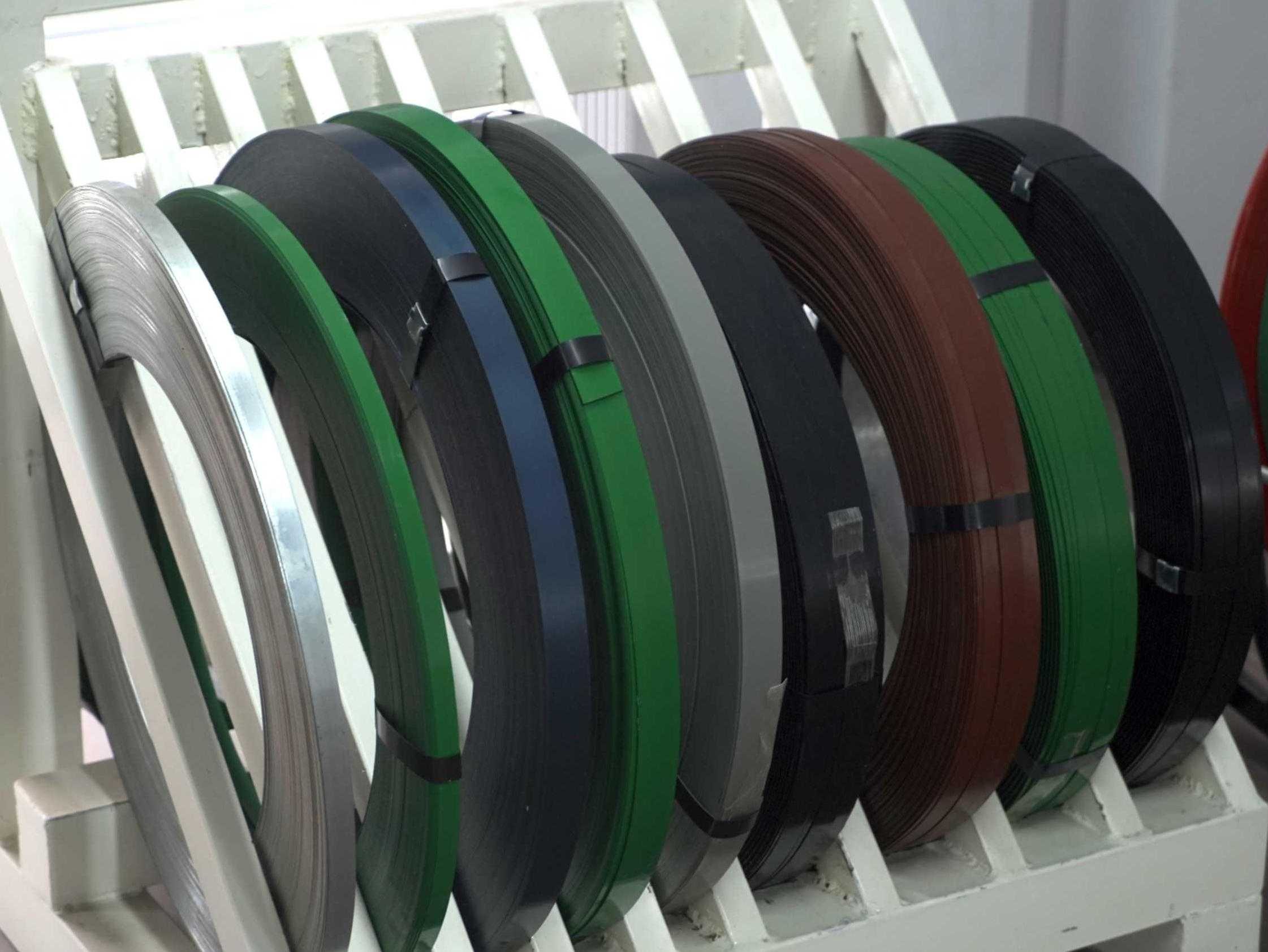

Painted and waxed steel strapping is the most widely used strapping in all applications. The waxed property improves tension transmission around load corners, while the paint improves corrosion resistance.
Wax fills abrasion gaps, +50% corrosion resistance
Cut cargo damage claims, reduce packaging costs

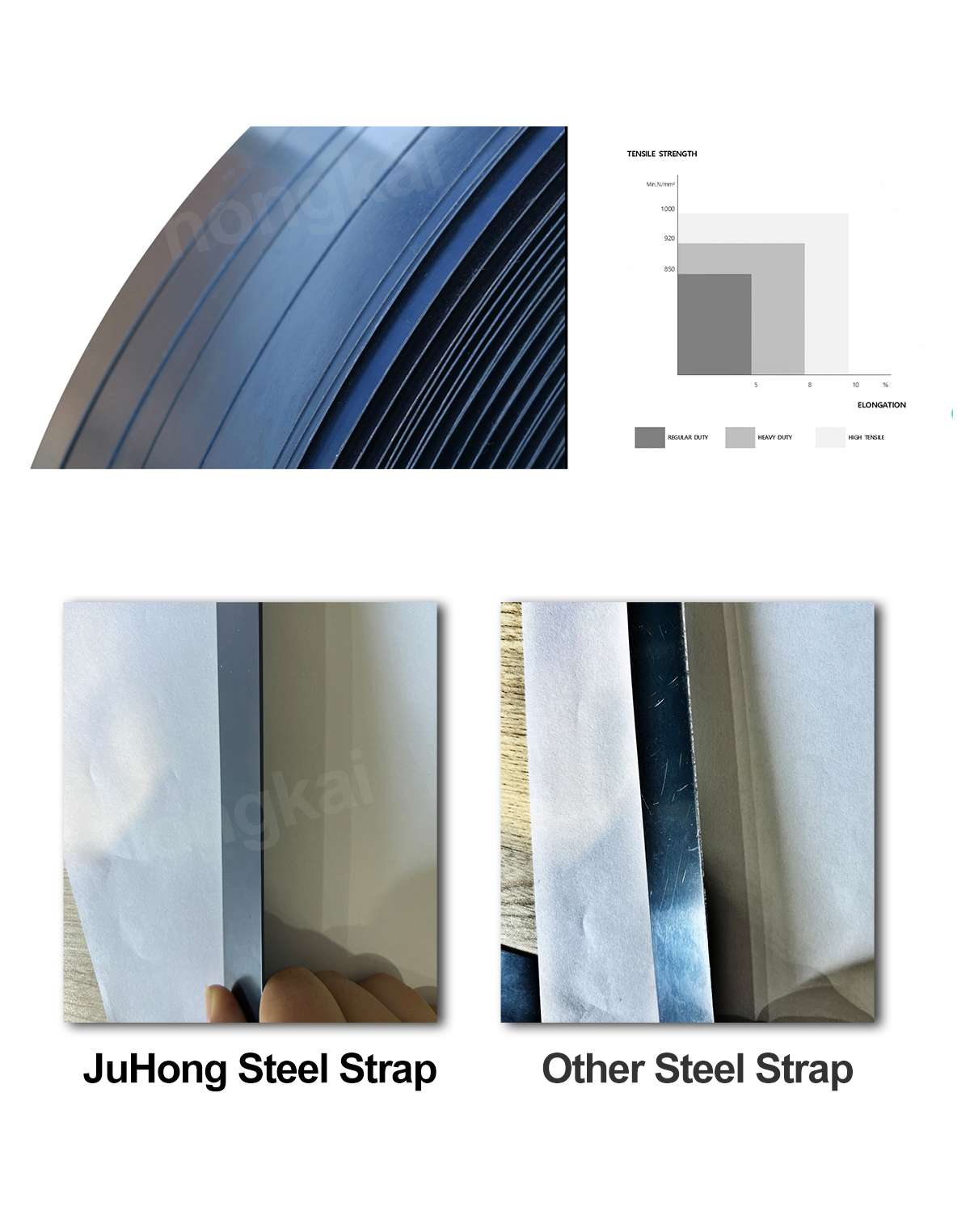

Engineered with multiple tensile mold, regular tensile, high tensile and low elongation, high tensile and high elongation ,we have regular duty steel strapping;regular duty plus steel strapping;high tensile steel strapping,tensille strength up to 1020N/mm² .
Smooth edge with burr removal: Our steel strapping undergoes a proprietary deburring process, ensuring smooth, rounded edges that eliminate the risk of cuts or abrasions during handling. This feature not only enhances operator safety but also minimizes damage to packaged goods.

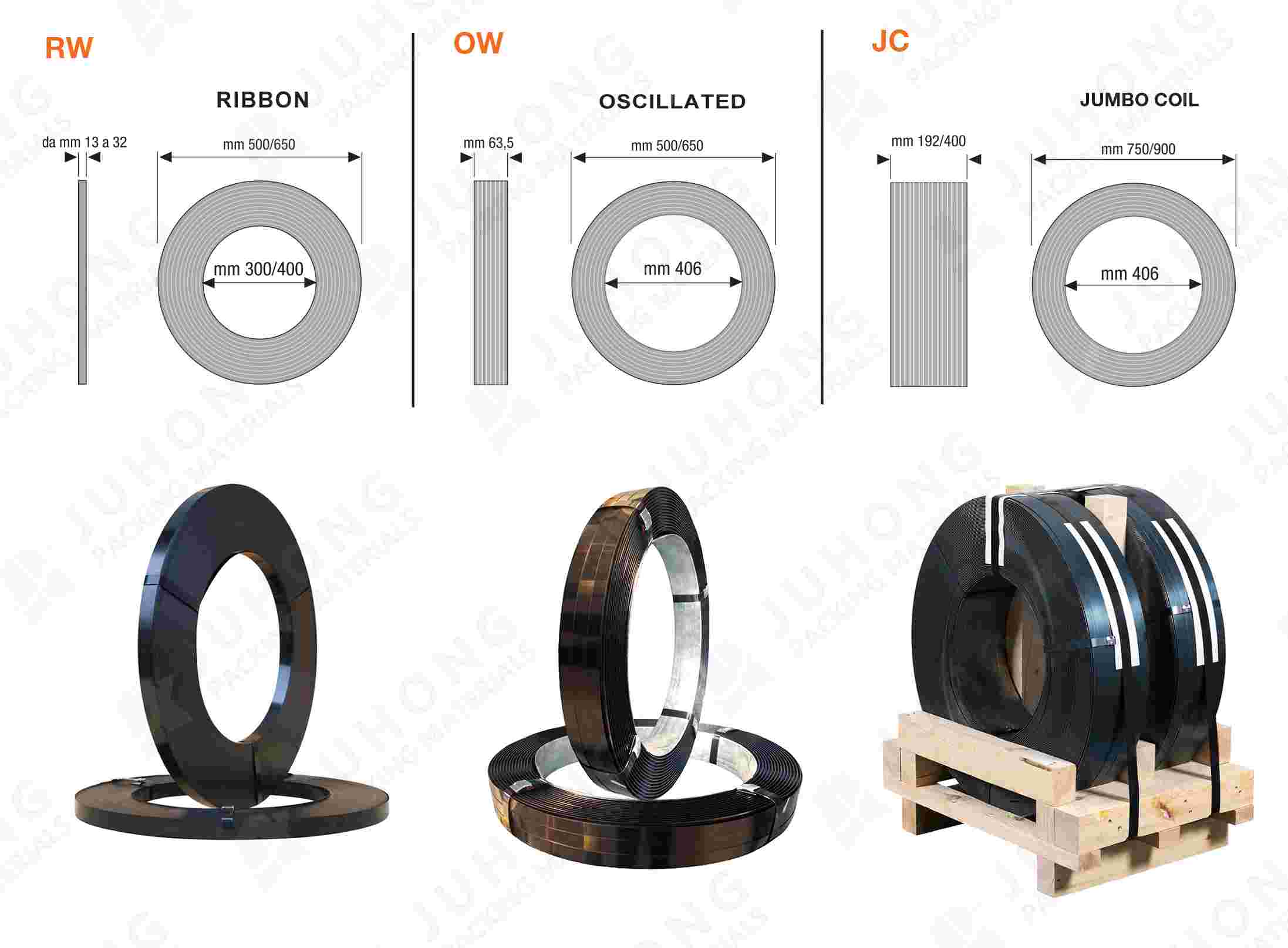

Ribbon wound coil steel strapping with a width 12.7mm/16mm/19mm is usually 25-30kgs per roll.25mm steel strapping:36-40kgs per rolls.32mm steel banding:45-50kgs per roll.around 1 ton per pallet.Ribbon is generally suitable for manual strapping tools and pneumatic strapping tools.
Oscillate wound coil steel strapping with a width 12.7mm/16mm/19mm is usually 40-50kgs per roll.12-18 rolls per pallet.Oscillated is generally suitable for manual strapping tools or pneumatic strapping tools or steel strapping machine.

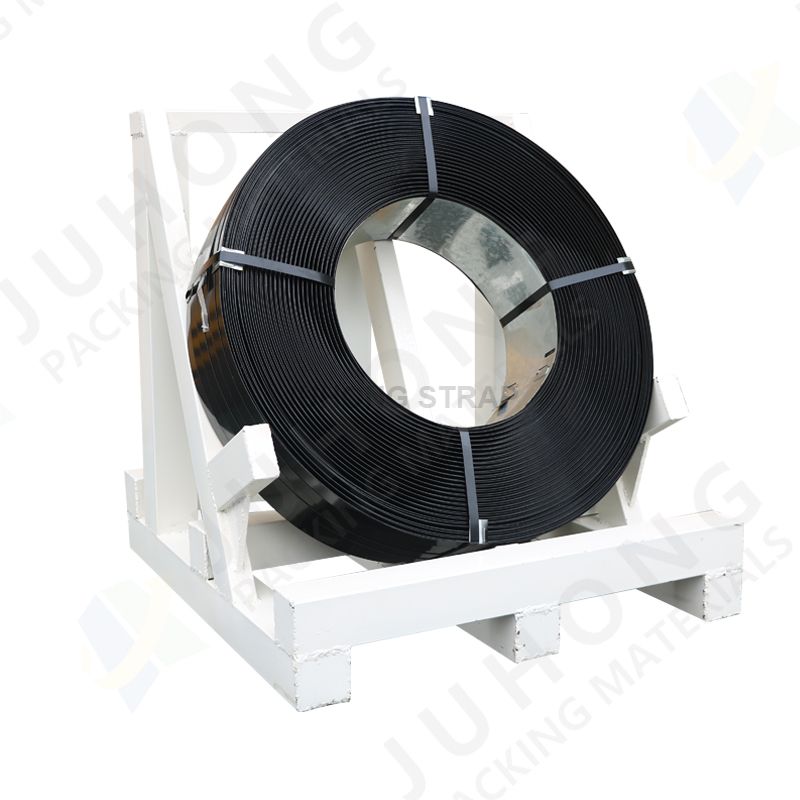

Jumbo wound coil steel strapping with a width 32mm is usually 180kgs/280kgs/360kgs/400kgs/500kgs/1000kgs.Jumbo is generally suitable for steel strapping machine.
Regular Tensile | ||||
Width | Thickness | Tensile Range | ||
Inch | mm | Inch | mm | N/mm² |
3/8" | 9.5 | 0.015" | 0.38 | 600-1000+ |
1/2" | 12.7 | 0.020" | 0.51 | 600-1000+ |
5/8" | 16 | 0.023" | 0.6 | 600-1000+ |
3/4" | 19 | 0.028" | 0.7 | 600-1000+ |
1" | 25 | 0.031" | 0.8 | 600-1000+ |
1-1/4" | 32 | 0.035" | 0.9 | 600-1000+ |
2" | 50 | 0.040" | 1 | 600-1000+ |
High Tensile and High Elongation | |||||
Width | Thickness | Tensile Range | Elongation | ||
Inch | mm | Inch | mm | N/mm² | both ASTM and EN standard |
3/4" | 19 | 0.031" | 0.8 | 1000+ | 10% |
1-1/4" | 32 | 0.031" | 0.8 | 1000+ | 10% |
Whether you need conventional steel straps such as 3 4 steel banding or 1 2 inch steel strapping, or 2 inch wide metal strapping, as a painted and waxed steel strapping factory in China, we can meet your demands. Available in a wide range of widths (9.5-50mm) and thicknesses (0.3-1.27mm), our strapping adapts seamlessly to diverse load requirements, from lightweight pallets to heavy-duty industrial shipments cargo.Comprehensive one-stop solution for packing materials.

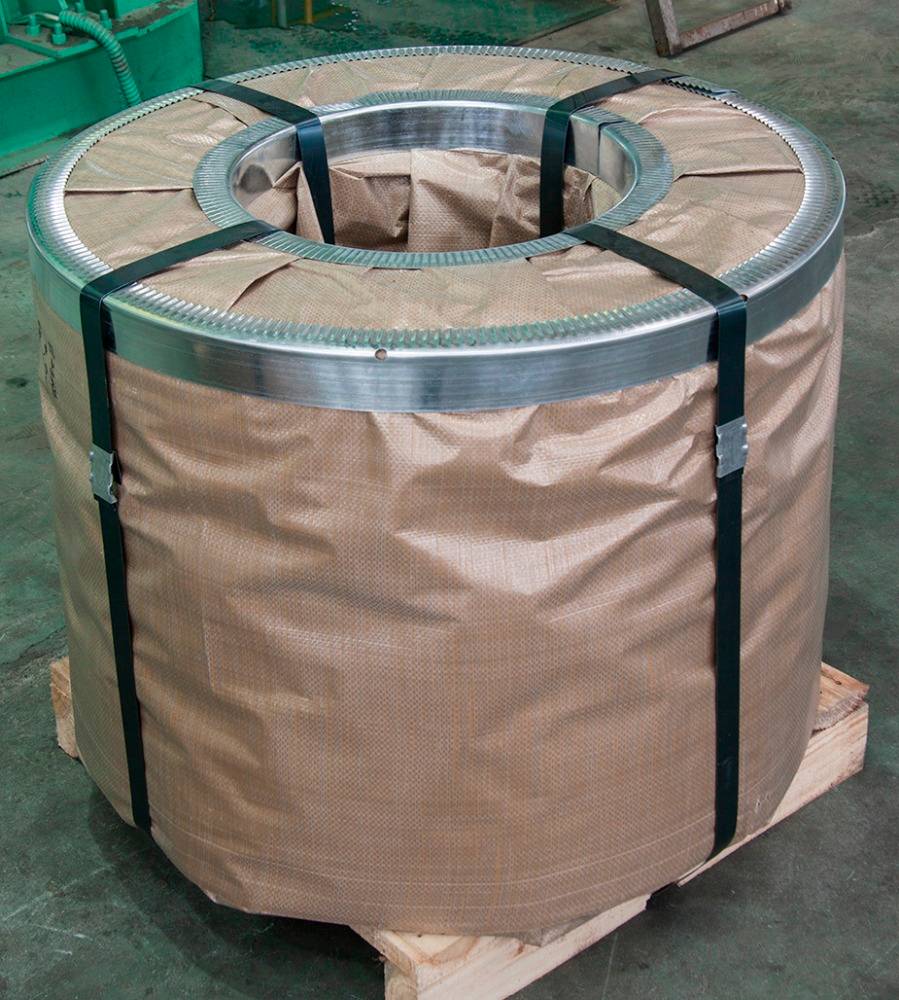

Netural pack

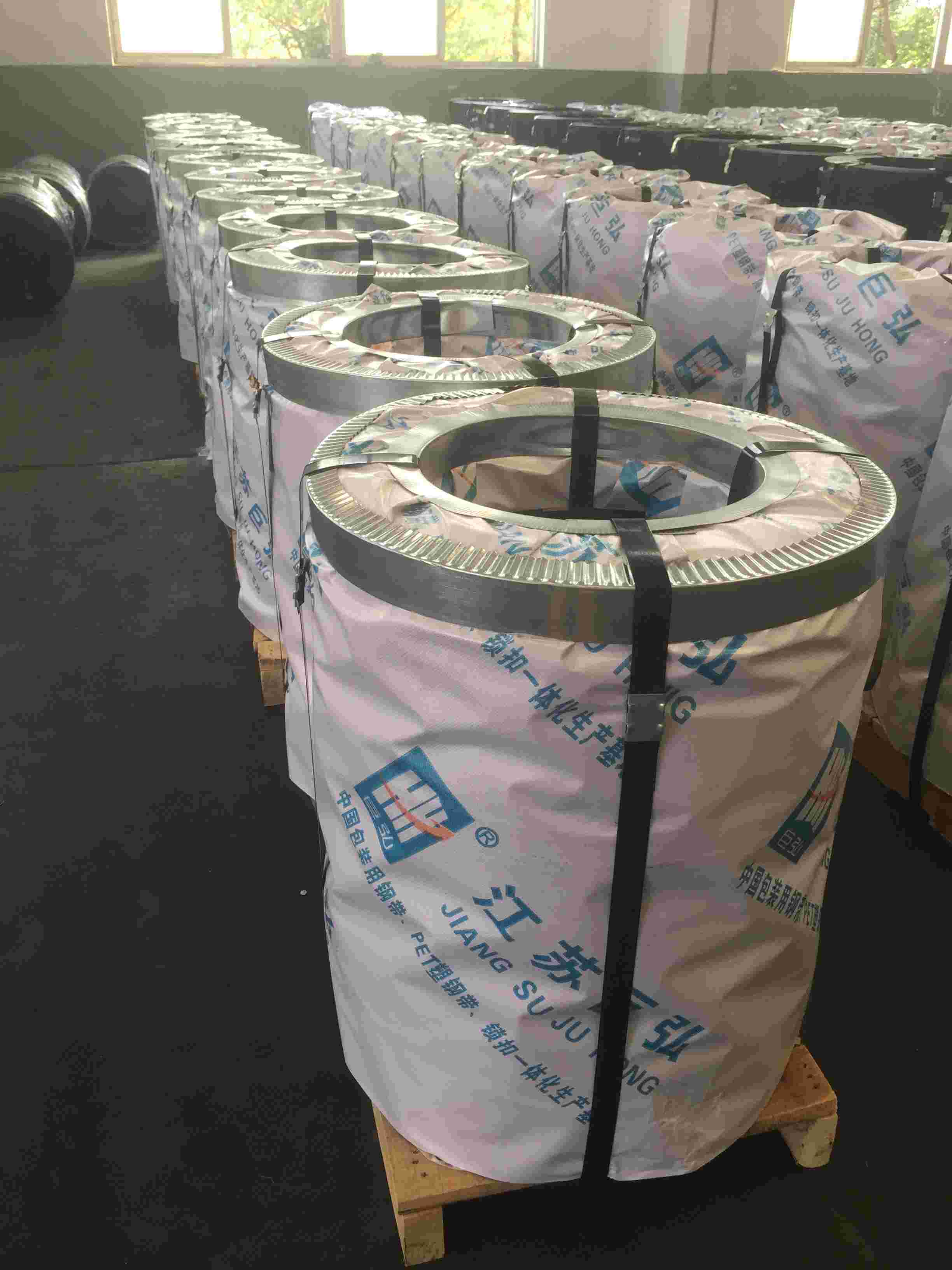

Juhong pack

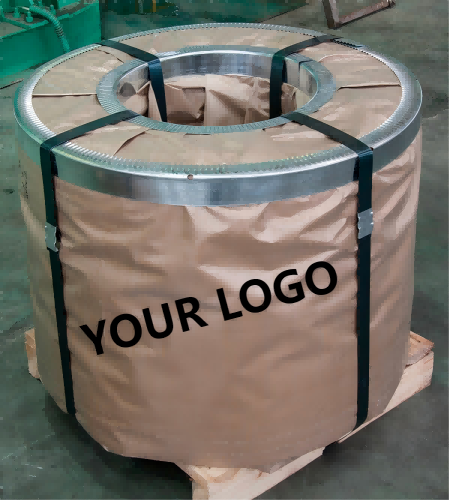

Customized pack
AS a steel strapping factory,we have over 27 years of production experience. Painted steel strapping surfacecan be coated with environmentallyfriendly water paint and water wax,according to customer's require-ment , such as black, green, red and other painted steel straps.

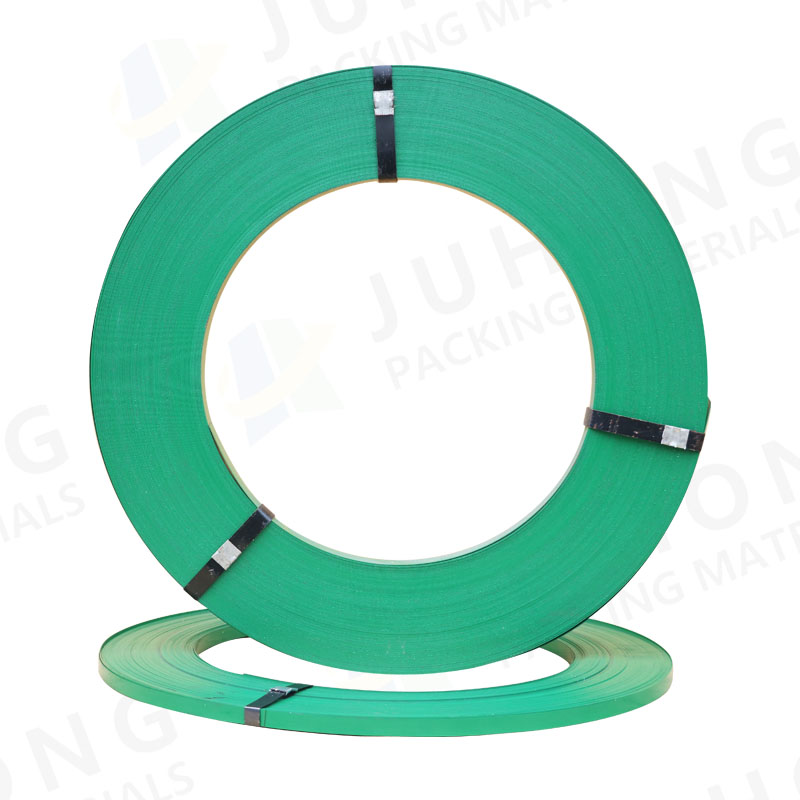

Green Steel Strapping

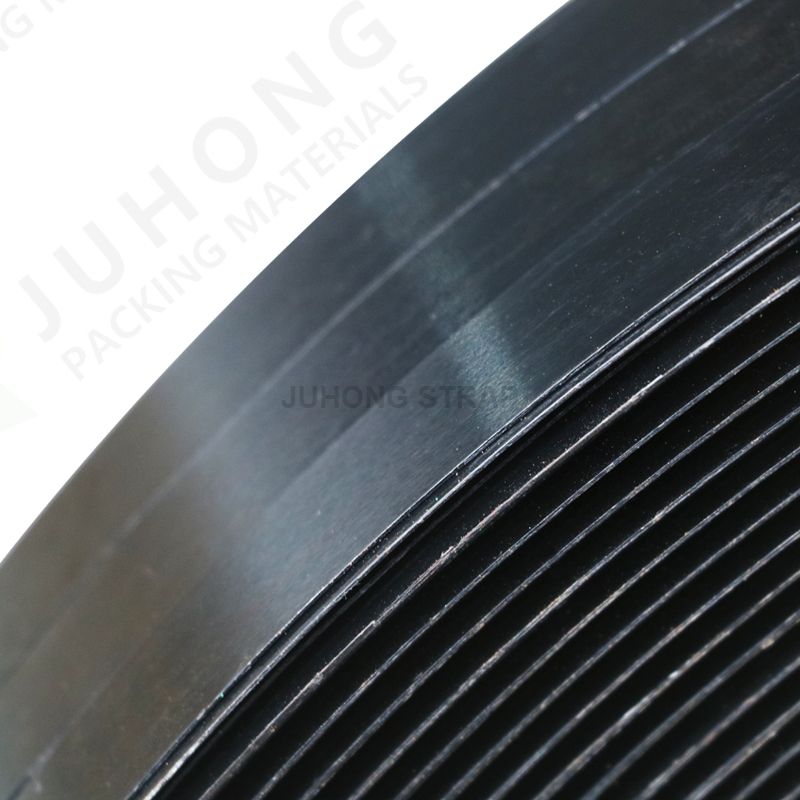

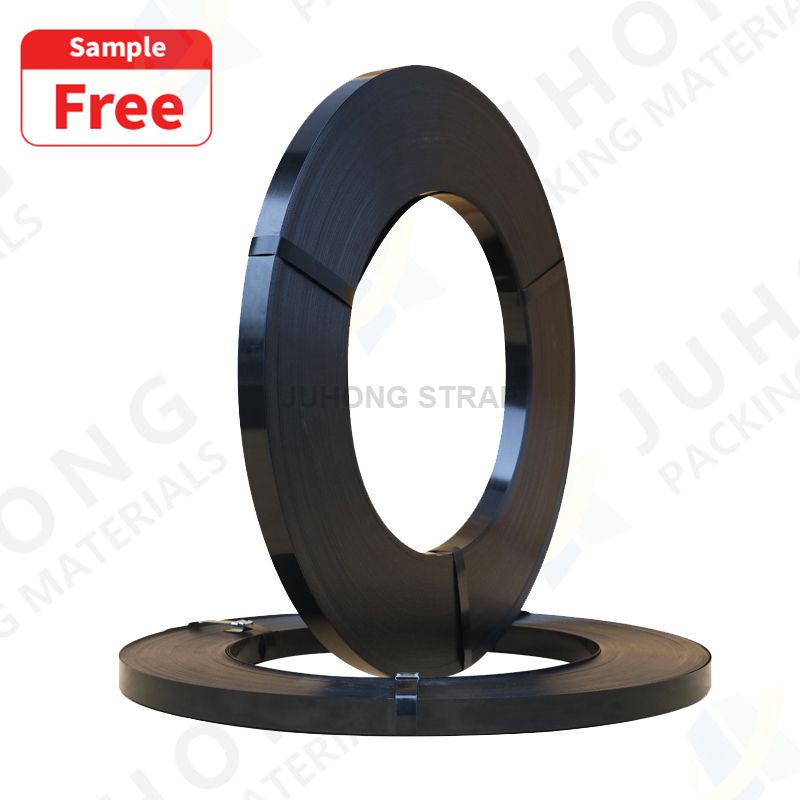

Black Steel Strapping
Colour Painted ribbon wound coil steel strapping
JuHong Packing materials steel strapping specification(1).pdf

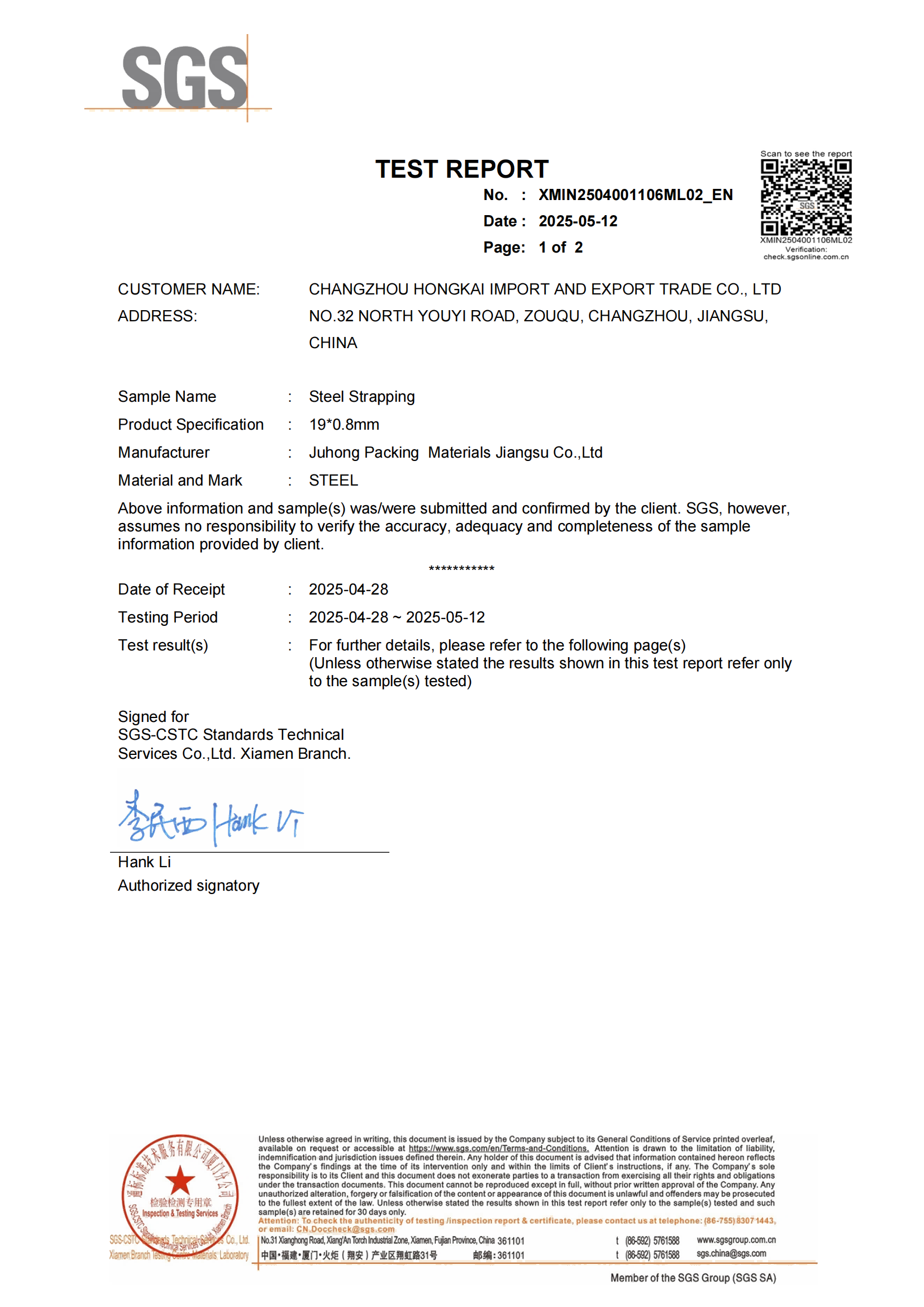

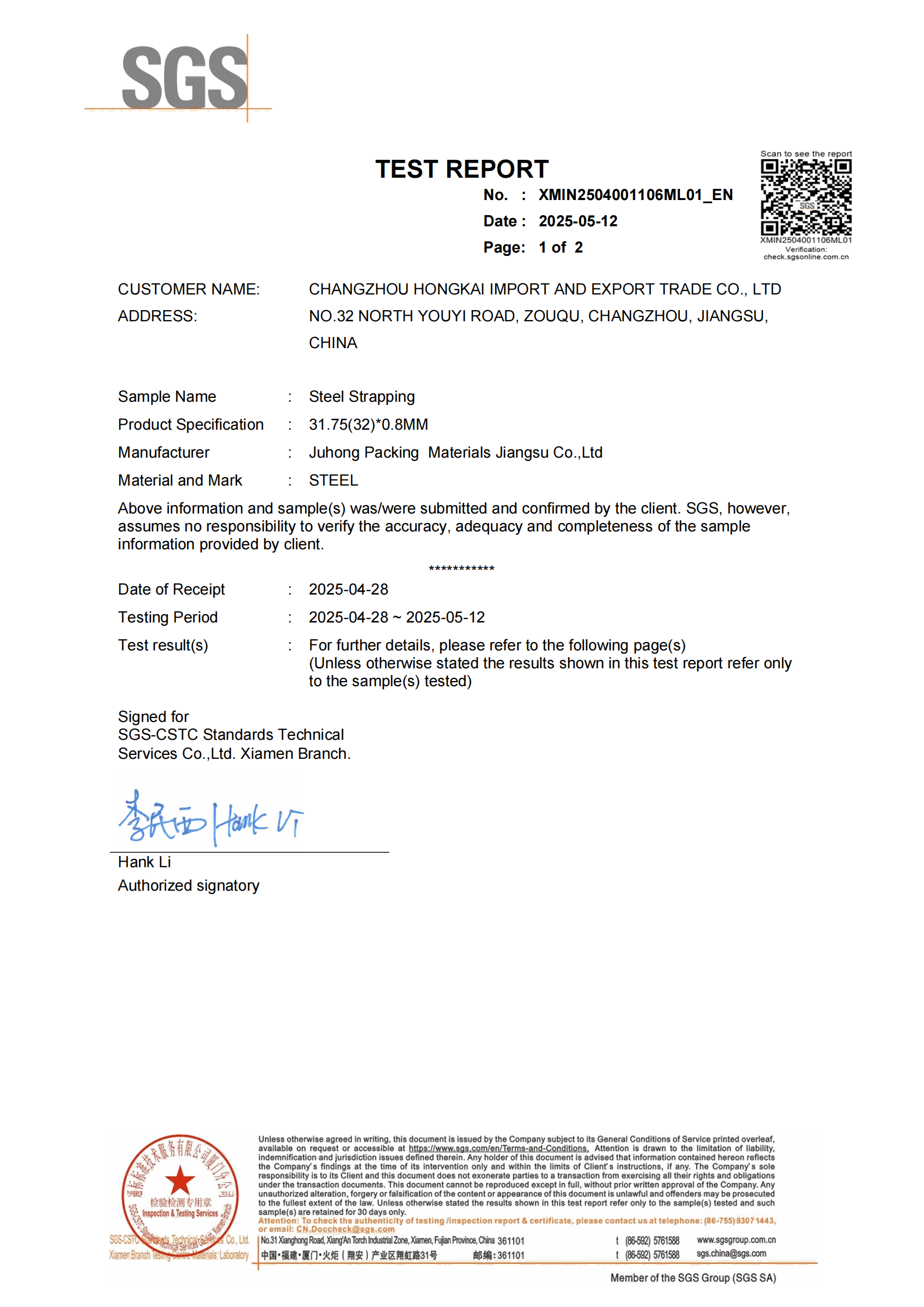

Juhong Steel strapping SGS EU standard Test Report.pdf

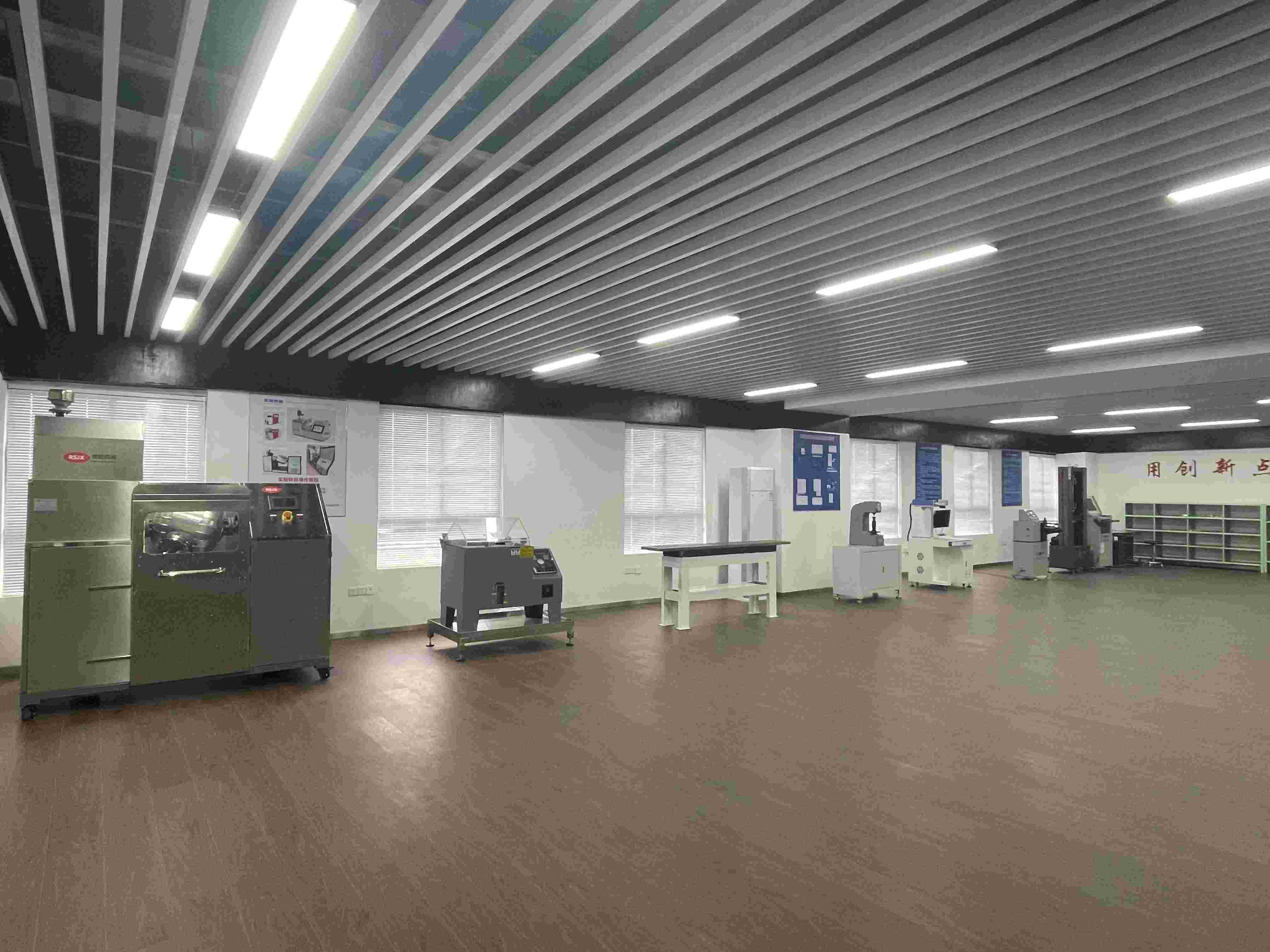

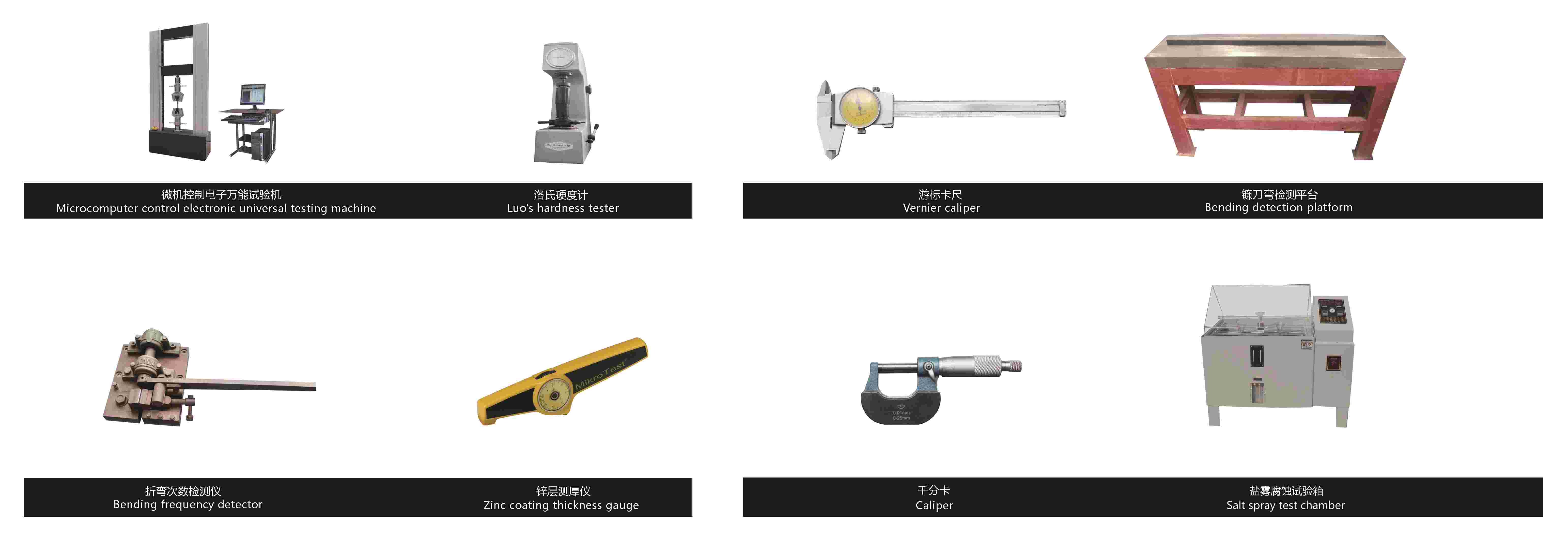

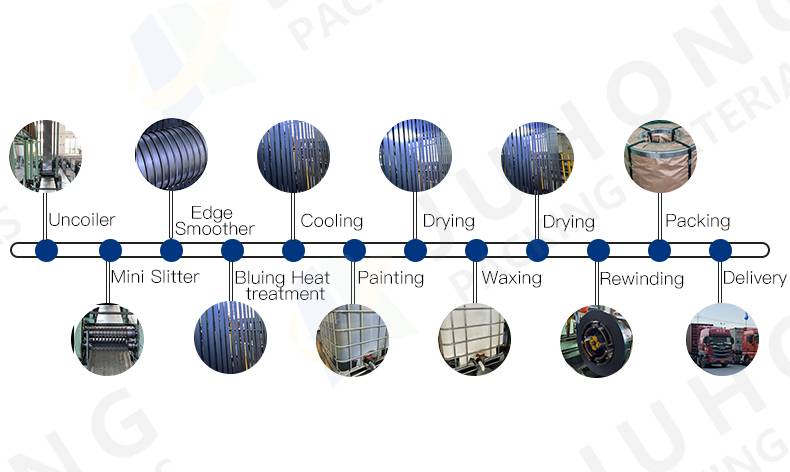

As a leading domestic manufacturer of packing materials, our facility boasts an annual production capacity of 60,000 tons of steel straps,In order to better control our quality, our factory has established a steel strap testing room. We will conduct regular spot checks on steel bangding to ensure product quality. This enables our strapping resists breakage even under extreme tension, securing cargo integrity throughout rigorous handling processes.

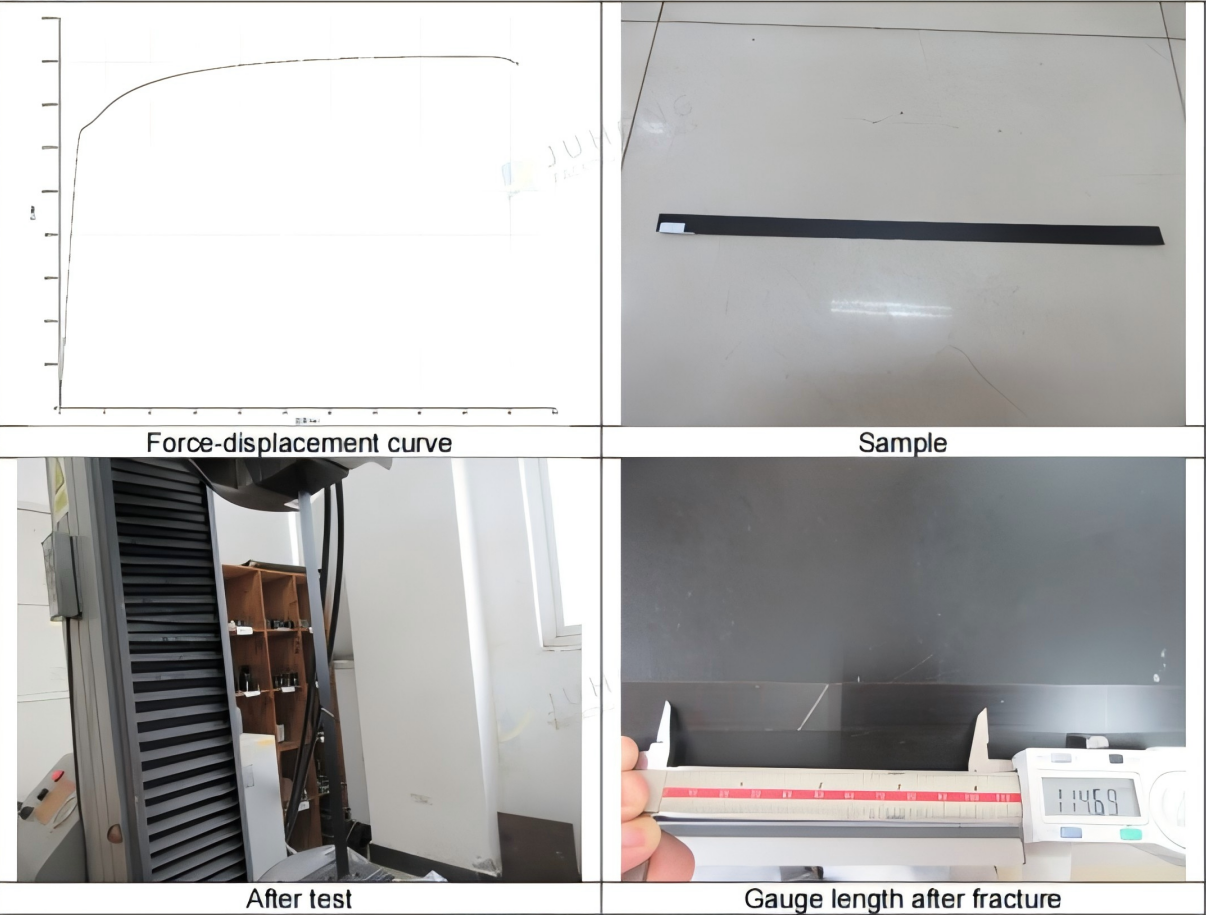

Test item | Specimen type | Specimen size ( mm ) | Tensile Strength (Rm) (MPa) | Elongation after fraclure(A100mm) L0=100mm(%) |
Result | Unmachined specimen | 18.99×0.790 | 1082 | 14.5 |
We guarantee that our quality will definitely meet your requirements, and we assure you that the goods you receive will match the expected quality. If there are any issues, we will take full responsibility.

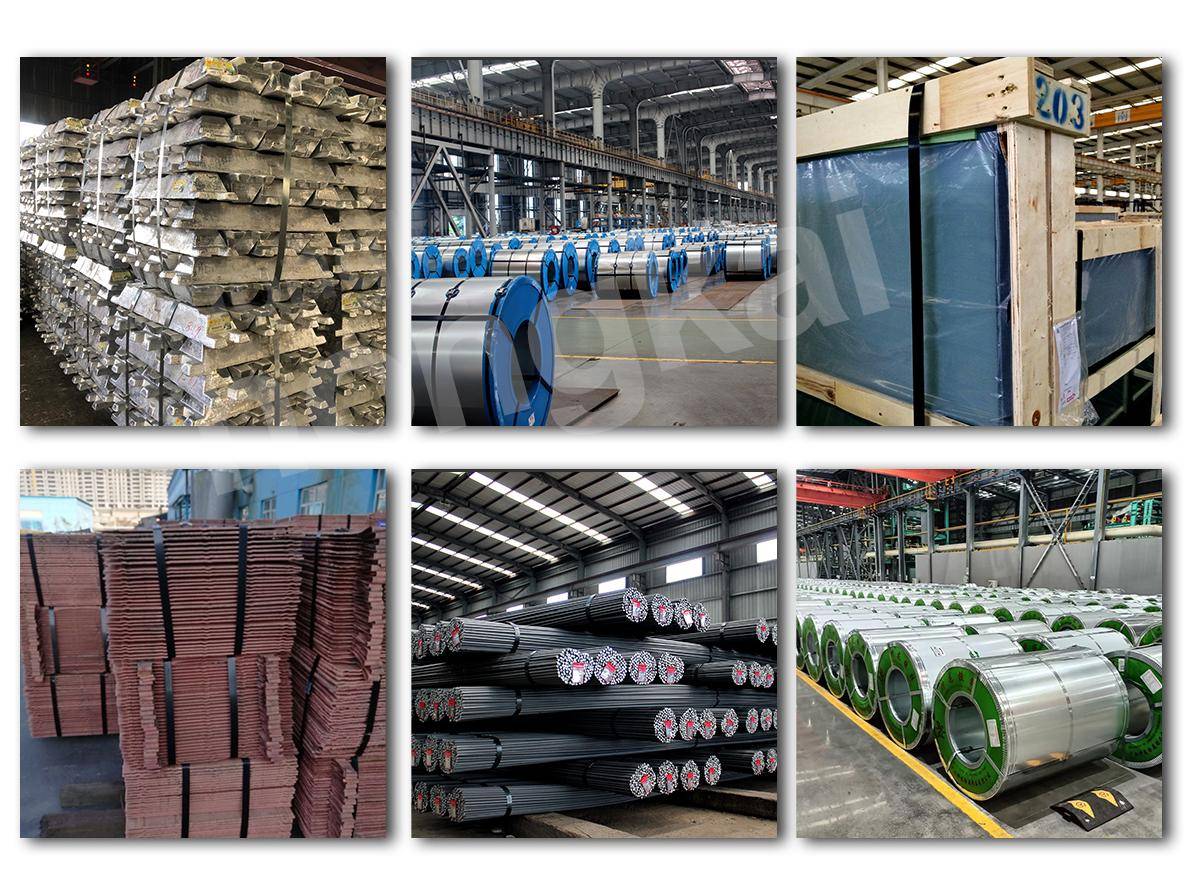

Because of its strong resis-tance to corrosion,durability andbeauty,painted steel strapping iswidely used in metallurgy,glass andnon-ferrous metal industry andother products packaging.

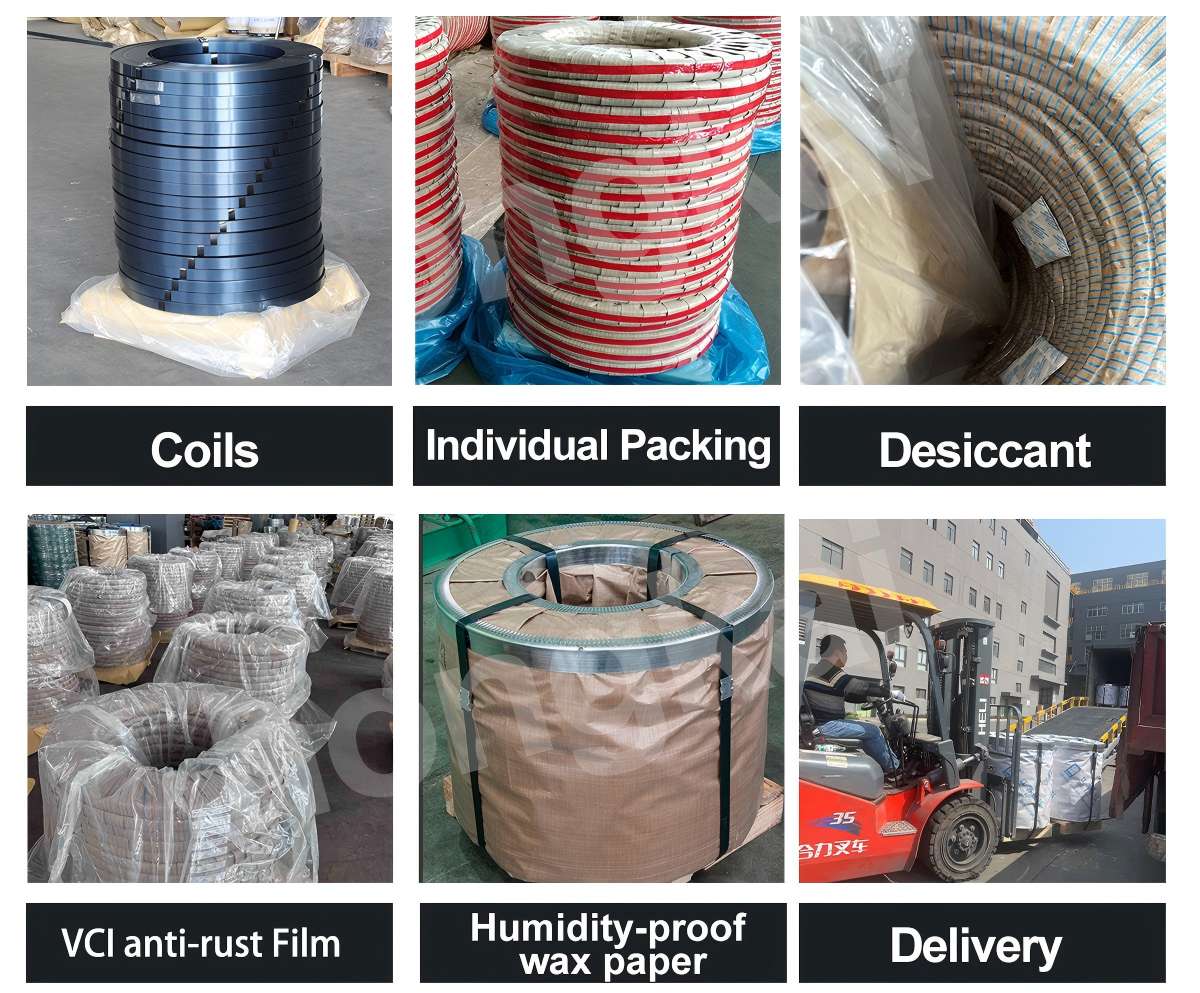

1.Individual packing (if required): For orders that require individual packing, the steel strapping rolls are individually wrapped with VCI (Vapor Corrosion Inhibitor) paper during the production process. After that, all the rolls are placed on the pallets.
2.External Wrapping and Drying Agent: The entire pallet of steel strapping is then wrapped with VCI anti-rust film, and metal anti-rust desiccants are placed to prevent corrosion during transit.
3.Final Protection and Reinforcement: The outermost layer is covered with anti-rust neutral or customized kraft paper, and the entire pallet is secured with four steel straps to ensure it remains intact during transportation.
4.Loading into Containers: All the pallets are carefully loaded into the shipping containers, ensuring they are neatly arranged for safe and efficient transport.

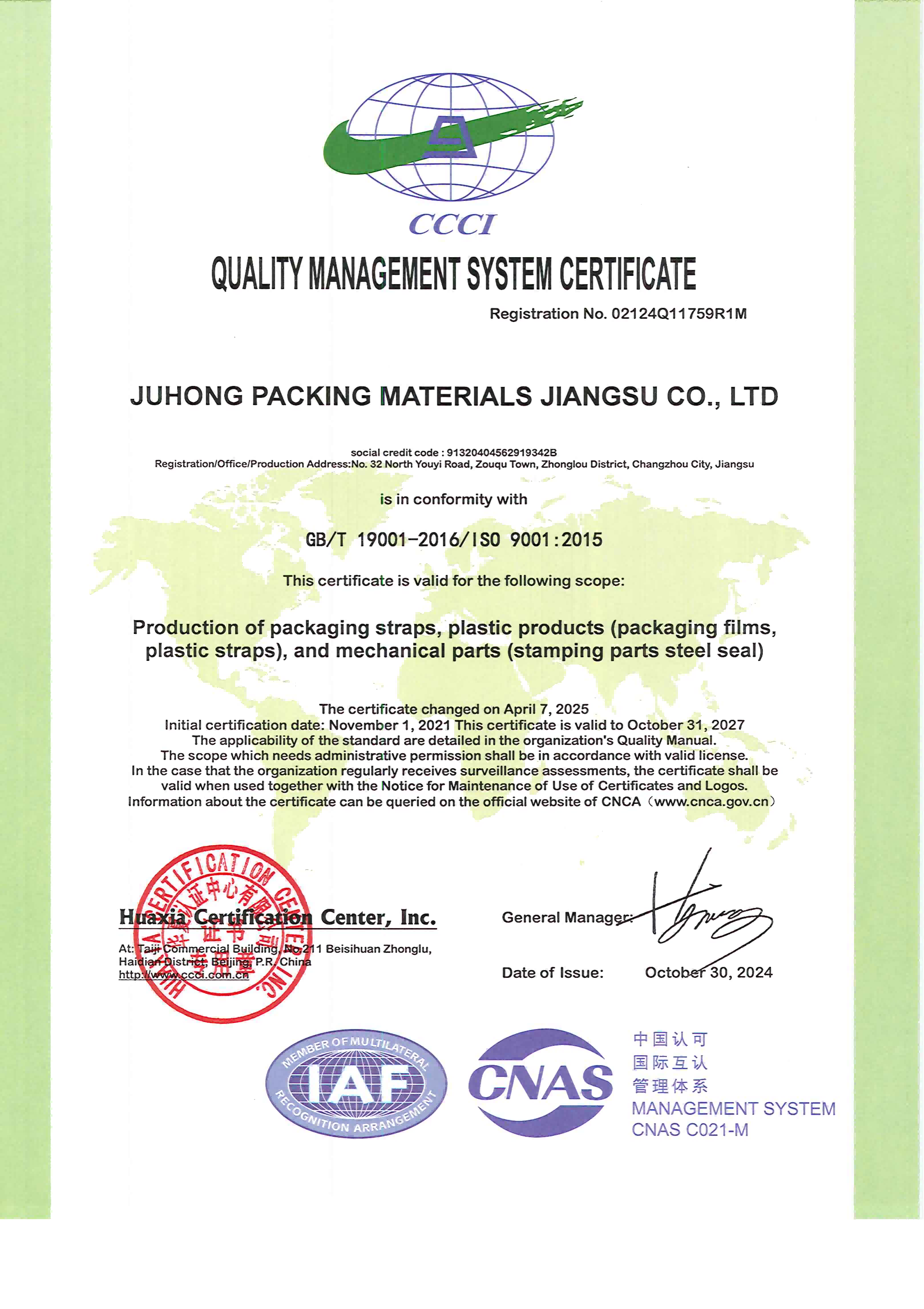

ISO9001

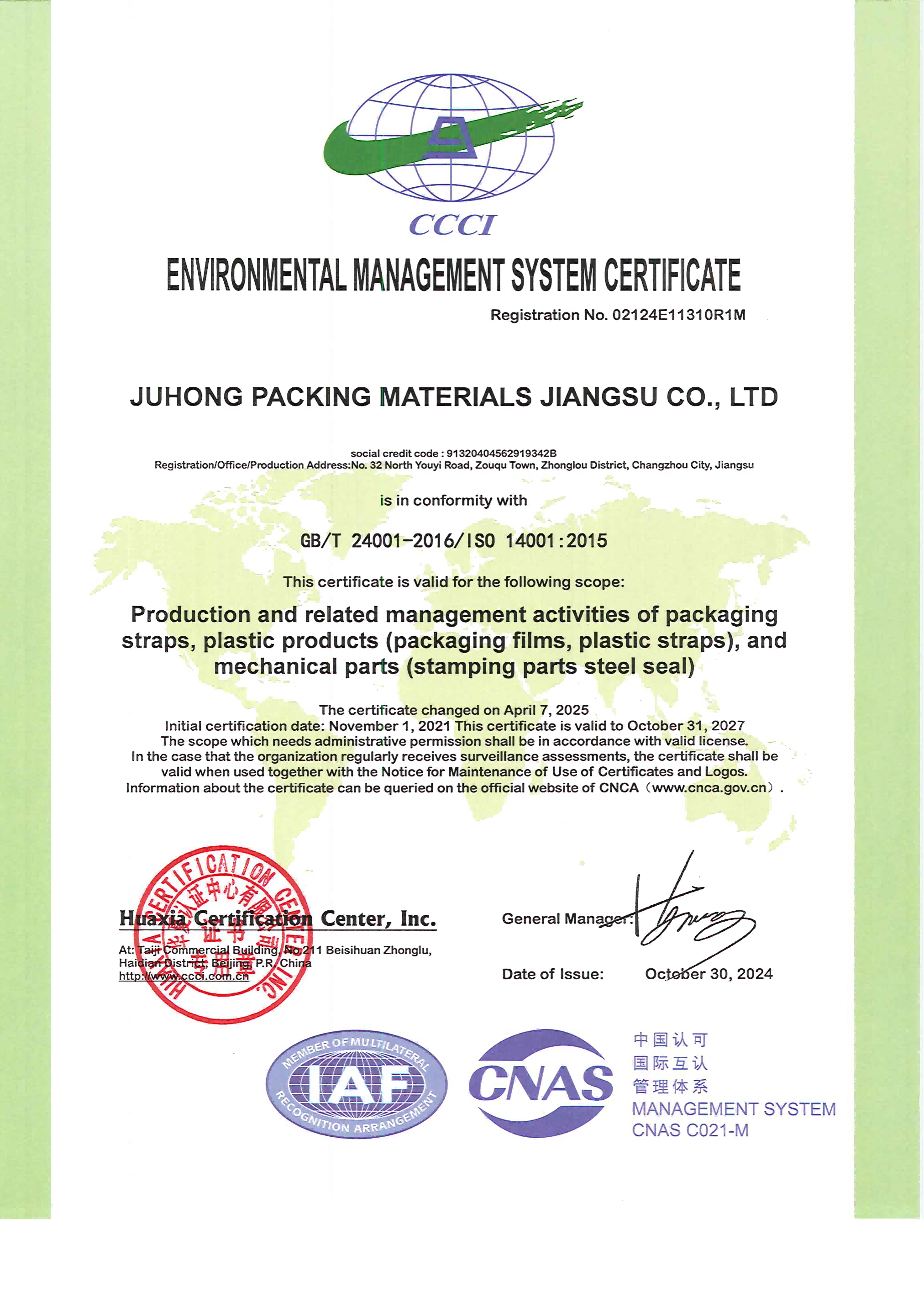

ISO14001

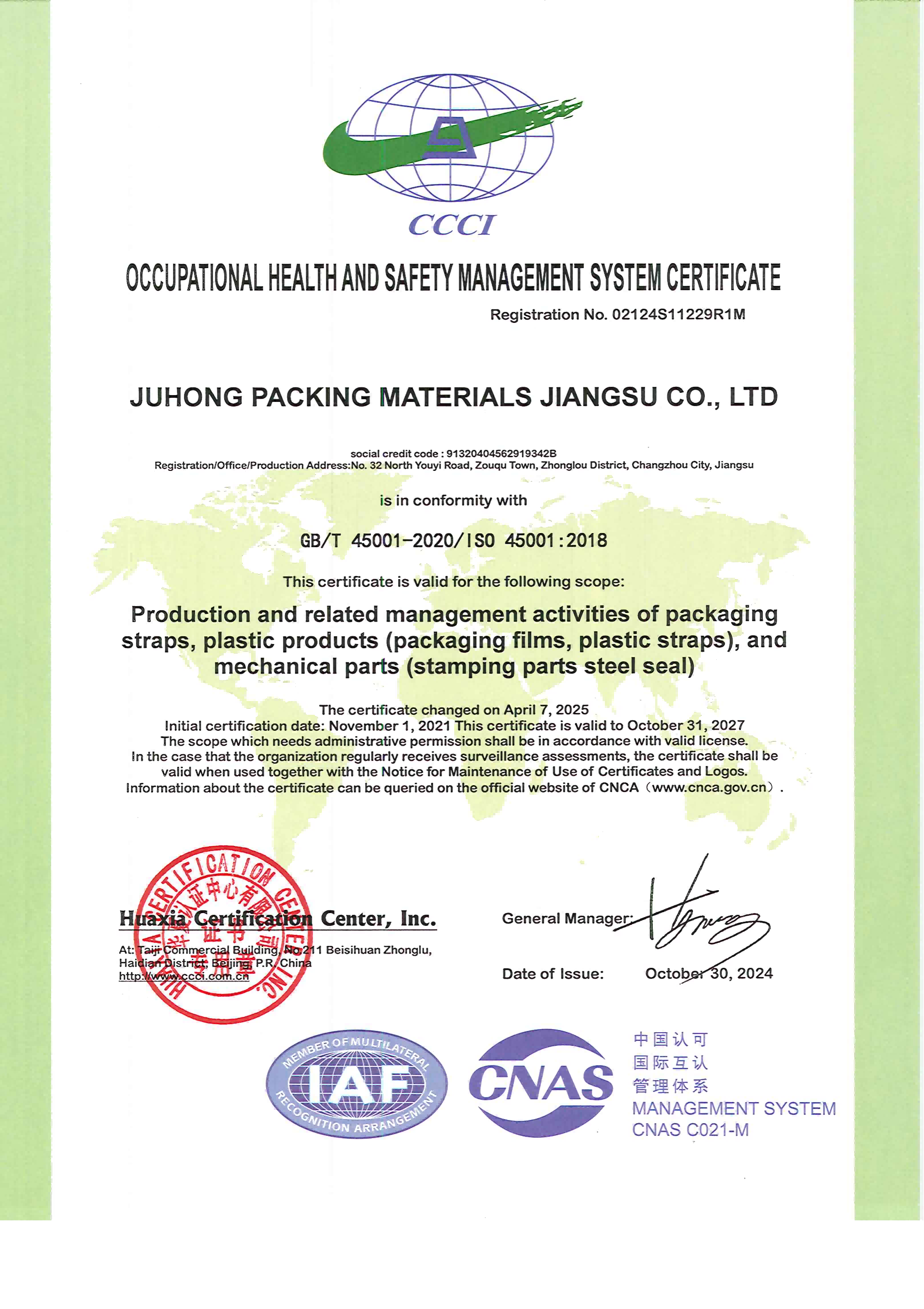

ISO45001
SGS Report
SGS Report
Q1: Is the sample free?
A: Yes, if you need, we can provide free samples
Q2: Are you factory direct sales?
A: Yes, we have our own factory. All of our products are with competitive price and excellent quality
Q3: Can our private logo/label be printed on the packaging?
A: Yes, your own private logo/label can be printed on the packaging upon your legal authorization, we support OEM service according to our clients' requirement for many years.
Q4:How does your company control quality?
A: we have built a modern quality management system which is in strict accordance with international standards. We have attained ISO9001, ISO 14001 and OHSAS 18001.
Q5: When can I get the price?
A:We usually quote within 24 hours after getting your inquiry if you are urgent to get the price Please call us or tell us by email so that we will take your inquiry as a priority.
Q6:Can you make other sizes and packaging for this product?
A:Yes, we can produce other sizes of products according to your requirements, usually our quotation includes ordinary packaging.If you need your own parcel, we can discuss in advance in order to get the solution.
Q7: Why should we buy from us, not from other suppliers?
A:We Juhong Packing Materials has 27 years of experience in the production of packing materials. As a leading domestic manufacturer of packing materials, our facility boasts an annual production capacity of 60,000 tons of steel straps, 300 million steel seals, 12,000 tons of polyester straps, and 12,000 tons of wrapping film. offering clients a comprehensive one-stop solution.
