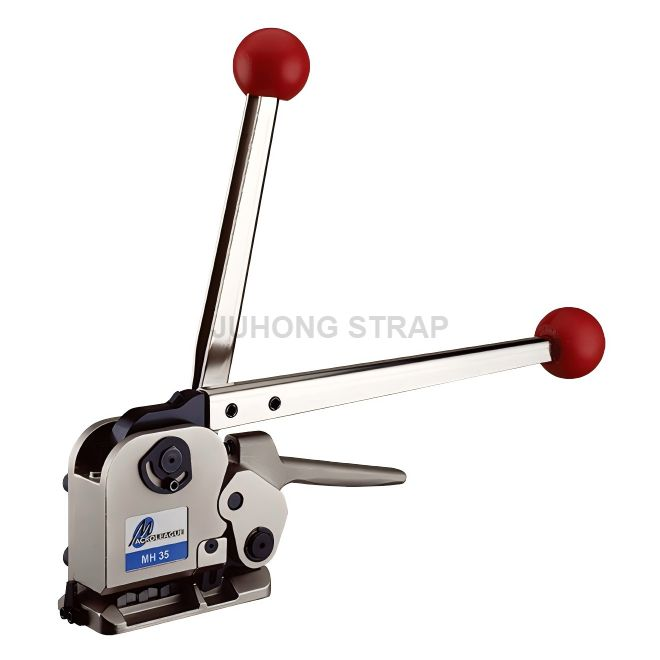

MH35 Manual Sealless Steel Strapping Tool

MH35 Manual Sealless Steel Strapping Tool

Professional-Grade Hand Tool for Secure Steel Strapping

The MH35 is a robust and reliable manual tool designed specifically for applying and tensioning steel strapping without the need for seals. Its innovative sealless joint technology saves on consumable costs while delivering exceptional strength, making it the ideal choice for industrial packaging, palletizing, and securing heavy loads for shipment.

Key Features & Benefits:

• ✅ SEALLESS JOINT TECHNOLOGY: Eliminates the need for costly metal seals. The tool creates a tight, self-locking joint with 80-85% sealing strength, reducing your consumables inventory and overall cost per strap.

• ✅ HIGH TENSION PERFORMANCE: Achieves a maximum tension force of up to 8,000 Newtons (N), ensuring your heavy loads are secured safely and reliably during transit and storage.

• ✅ ADJUSTABLE FOR MULTIPLE STRAPS: Easily adjustable to accommodate the most common steel strap widths: 16mm, 19mm, and 25mm with a thickness range of 0.55mm - 0.75mm. One tool for multiple applications.

• ✅ DURABLE & LIGHTWEIGHT: Constructed from high-quality materials for long-lasting performance in tough industrial environments. Weighs only 4.2 kg (9.26 lbs), reducing operator fatigue during extended use.

• ✅ SAFETY FIRST DESIGN: Includes built-in safety features. The tool requires two-hand operation during critical phases, helping to protect the user. Always follow all safety instructions provided in the manual.

• ✅ WIDE APPLICATION: The perfect tool for securing palletized goods, wooden crates, construction materials, metal coils, and other heavy-duty bundles in warehouses, logistics centers, and manufacturing facilities.

Technical Specifications:

How It Works (Simple 4-Step Process)

Feeding the strap

The strap is around the package.the strapping end is held tightly with the left hand and pulled firmly towards the operator with the right hand.

Tensioning the strap

Hold the tool with the right hand grasps the tenison lever and moves it back and forth to tension is attained.at the same time left hand being placed on the sealing handle.

Sealing the strap

After strap tension.the right hand hold in back position,push the sealing handle forward to sealing strap and backward into the initial position after completion of the sealing action.

Releasing the tool

After completion of the sealing action.The tool can be released from the seal.By liftiong handle the strap end be removed from the package.

Safety Information:

• Read the operation manual carefully before use.

• Always wear safety glasses, gloves, and protective footwear during operation.

• Never stand in line with the strap during tensioning.

• Keep hands clear of the tension wheel and strap path.

• Use only original spare parts to maintain tool integrity and warranty.

  What's Included:

1 x MH35 Strapping Tool

1 x Operation Manual & Spare Parts List

Support & Availability:

JUHONG offers full technical support to keep your operation running smoothly. This tool is backed by our customer service guarantee.
