Duro™
JUHONG
5/8", 3/4" ,1", 1-1/4"，2”
0.02" ,0.023", 0.028" ,0.031" ,0.035"
Steel Q235B-DB
Manual or Full Automatic
Durable
SGS,ISO
16,19,25,32
0.51,0.58,0.71,0.79,0.89
406mm
| Surface treatment: | |
|---|---|
When the value of the goods far exceeds that of the steel belt itself, safety redundancy is your greatest cost control，Whether it's precision machine tools, agricultural machinery or standard containers, Ridge offers protection that exceeds industry safety standards by 20%, allowing you to bid farewell to the cost of secondary reinforcement and sign waybills without any worries.
It is designed for demands that require metal straps with a common tensile strength grade of 980N/mm².

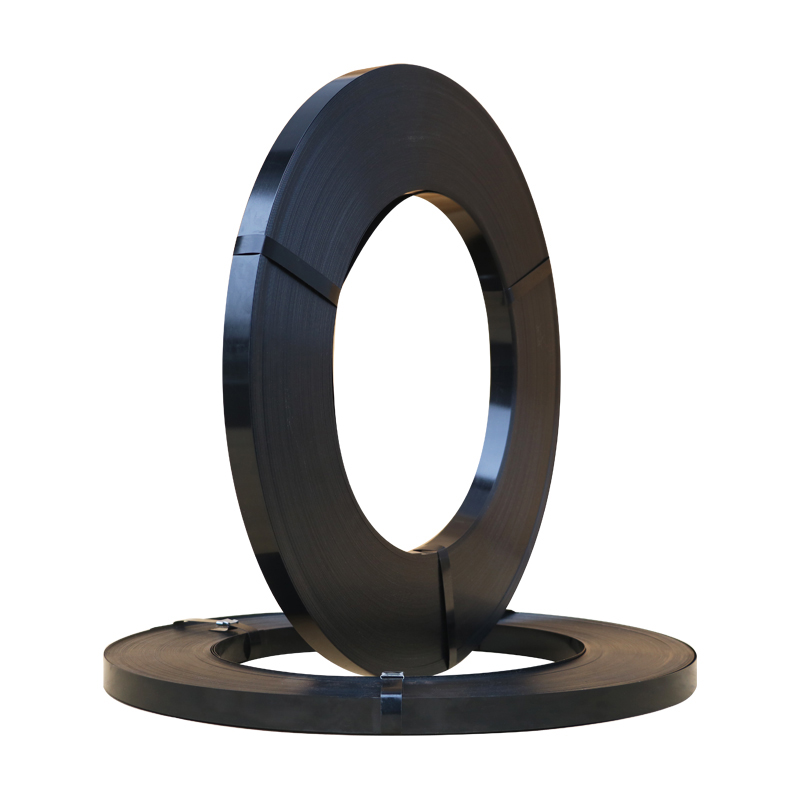

There are three surface treatment methods for our steel banding.
2 in Steel Strapping Band – Maximum Break Strength for Steel Coils, Machinery & Industrial Bundles
Low-Elongation High-Tensile Strap – Secure Load Stability Over Long-Distance Shipping
Industrial-Grade Metal Banding for Export-Ready Cargo: Warehouse, Container & Global Freight

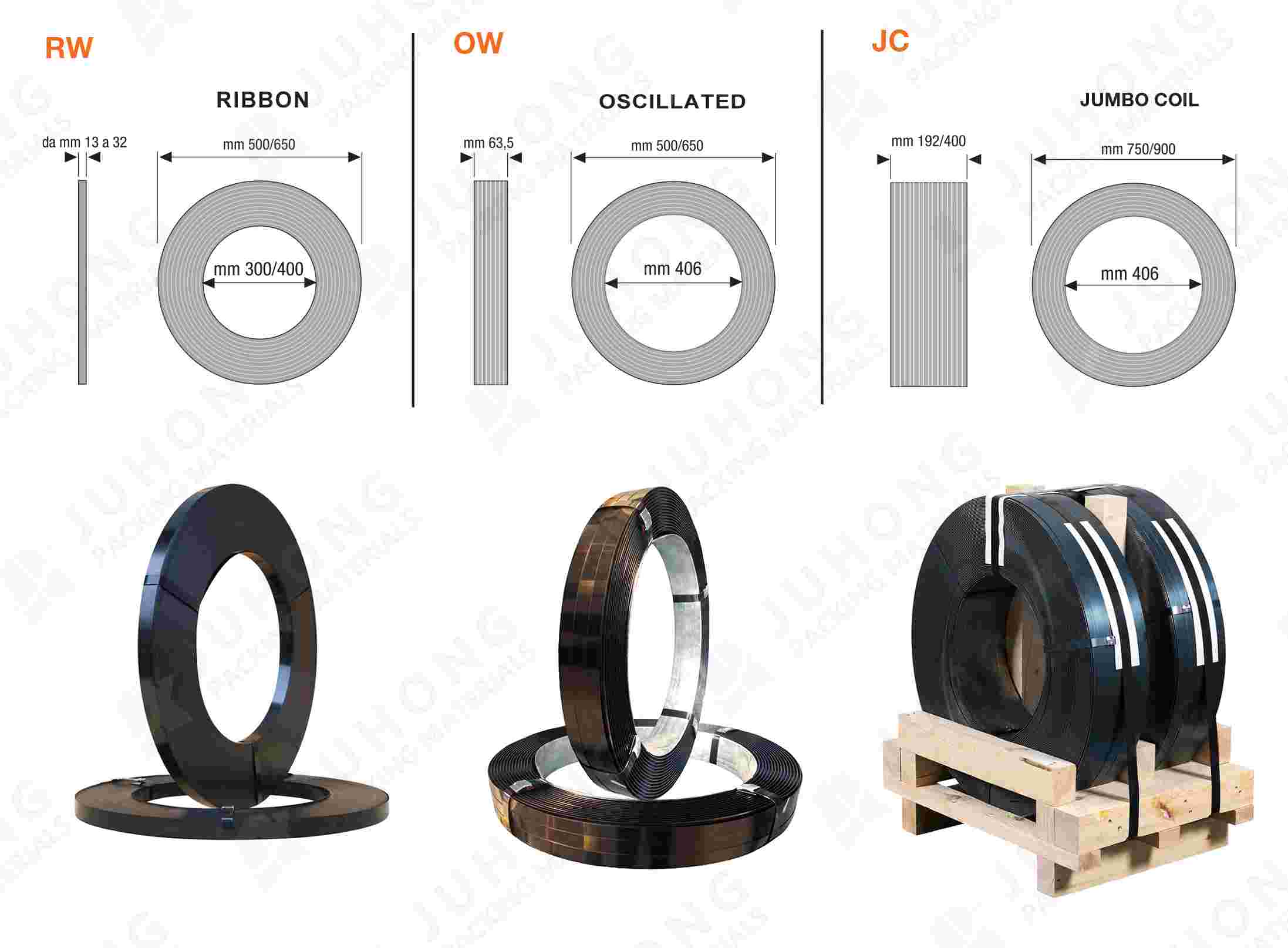

Ribbon wound coil steel strapping with a width 12.7mm/16mm/19mm is usually 25-30kgs per roll.25mm steel strapping:36-40kgs per rolls.32mm steel banding:45-50kgs per roll.around 1 ton per pallet.Ribbon is generally suitable for manual strapping tools and pneumatic strapping tools.
Oscillate wound coil steel strapping with a width 12.7mm/16mm/19mm is usually 40-50kgs per roll.12-18 rolls per pallet.Oscillated is generally suitable for manual strapping tools or pneumatic strapping tools or steel strapping machine.
Jumbo wound coil steel strapping with a width 32mm is usually 180kgs/280kgs/360kgs/400kgs/500kgs/1000kgs.Jumbo is generally suitable for steel strapping machine.
The dimensions and weights of the steel strips mentioned above are some of our more common standards. If you need other width dimensions or required weights, we can accept customization. Welcome to consult!
| JUHONG PACKING MATERIAL | Nexa™ | |||||
| Width | Thickness | Average Strength | ||||
| in | mm | in | mm | Ibs | N | N/mm² |
| 5/8 | 16 | 0.020 | 0.51 | 1799 | 7997 | 980 |
| 5/8 | 16 | 0.023 | 0.58 | 2046 | 9094 | 980 |
| 3/4 | 19 | 0.020 | 0.51 | 2136 | 9496 | 980 |
| 3/4 | 19 | 0.023 | 0.58 | 2429 | 10800 | 980 |
| 3/4 | 19 | 0.028 | 0.71 | 2974 | 13220 | 980 |
| 3/4 | 19 | 0.031 | 0.79 | 3309 | 14710 | 980 |
| 3/4 | 19 | 0.035 | 0.89 | 3728 | 16572 | 980 |
| 1 | 25 | 0.031 | 0.79 | 4354 | 19355 | 980 |
| 1 | 25 | 0.035 | 0.89 | 4905 | 21805 | 980 |
| 1-1/4 | 31.75 | 0.028 | 0.71 | 4970 | 22092 | 980 |
| 1-1/4 | 31.75 | 0.031 | 0.79 | 5530 | 24581 | 980 |
| 1-1/4 | 31.75 | 0.035 | 0.89 | 6230 | 27692 | 980 |
Dimensions Range: Available in a wide range of widths (9.5-50mm) and thicknesses (0.3-1.27mm).
Weight Range: Roll weights vary from 5kg mini rolls to 1000kg jumbo rolls.
Stable Tensile Strength and elongation rate: Engineered with multiple tensile mold, regular tensile, high tensile and low elongation, high tensile and high elongation. our strapping resists breakage even under extreme tension, securing cargo integrity throughout rigorous handling processes.
JuHong Packing materials steel strapping specification(1).pdf
Juhong Packing Materials' Brochure.pdf
Juhong Steel strapping SGS EU standard Test Report.pdf
ISO9001

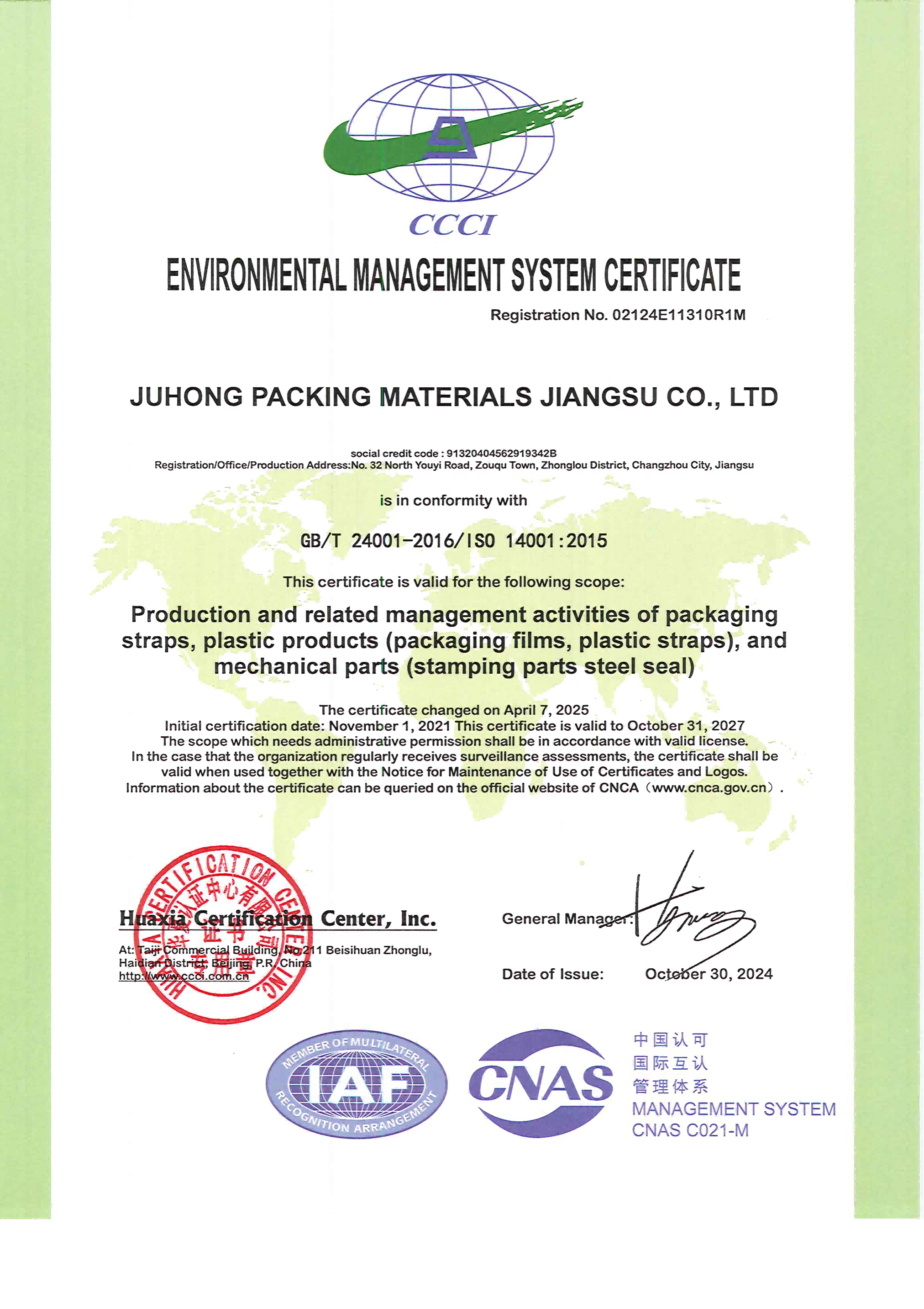

ISO14001
ISO45001

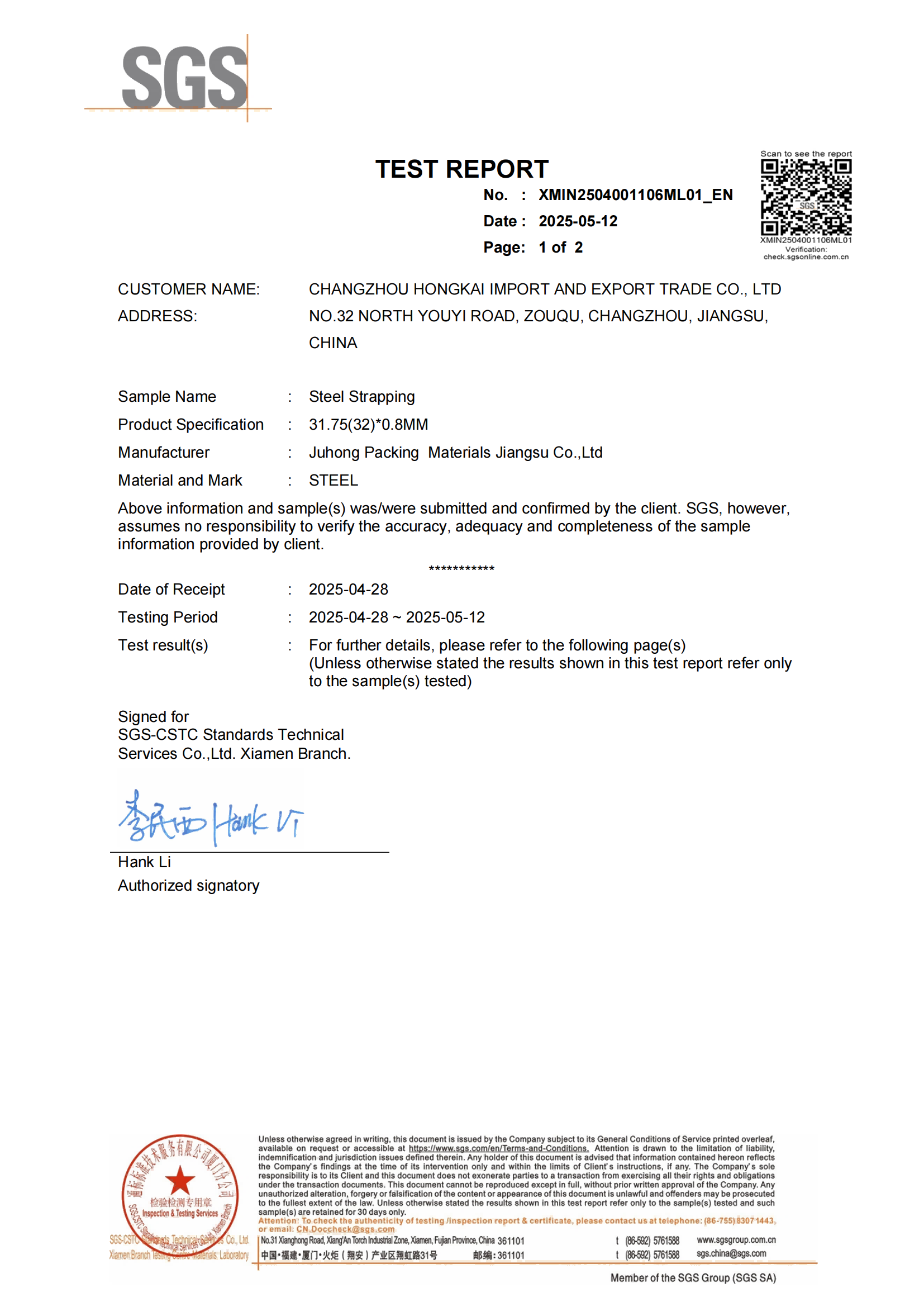

1-1/4 Steel Strapping SGS

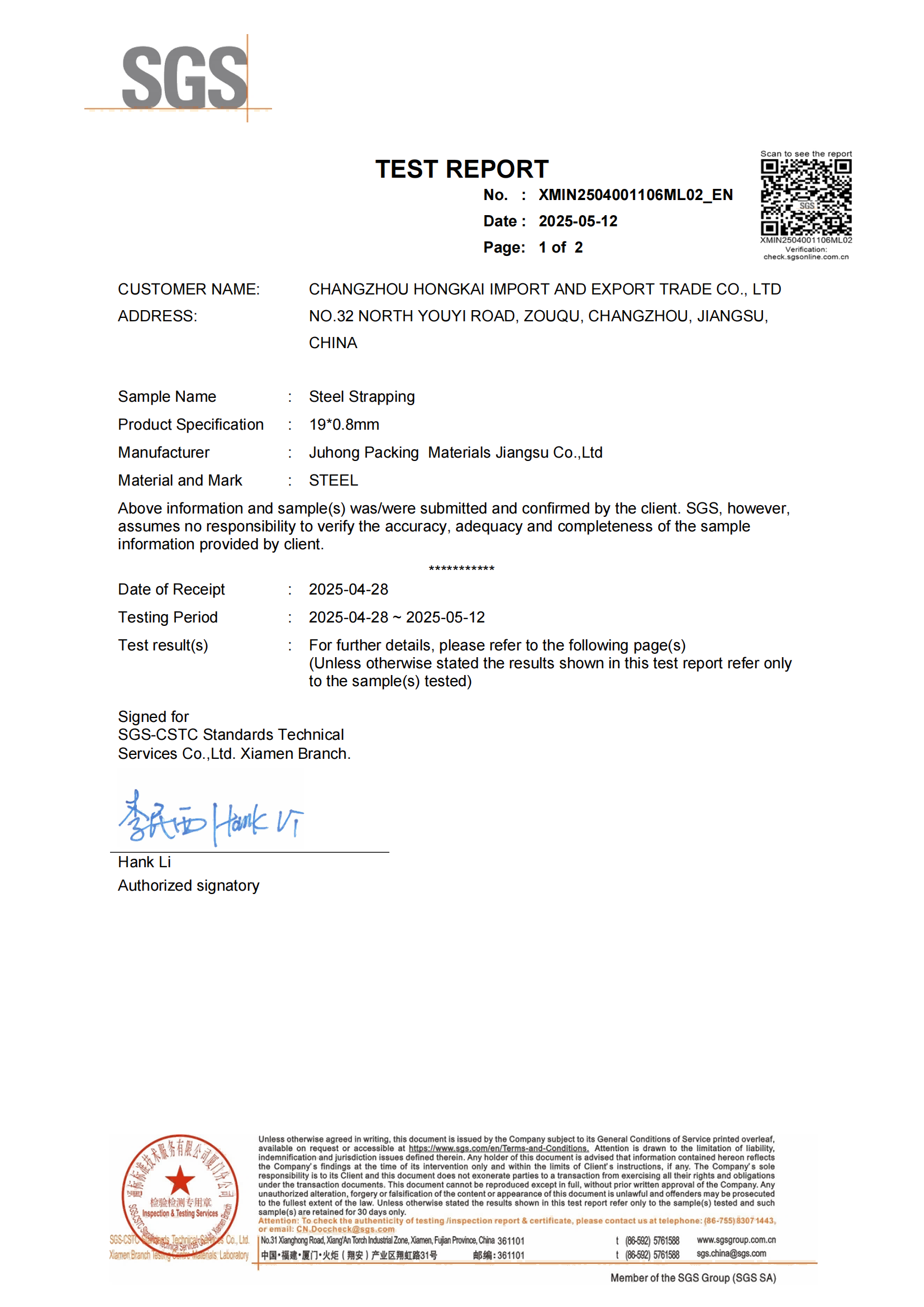

3/4 Steel Strapping SGS

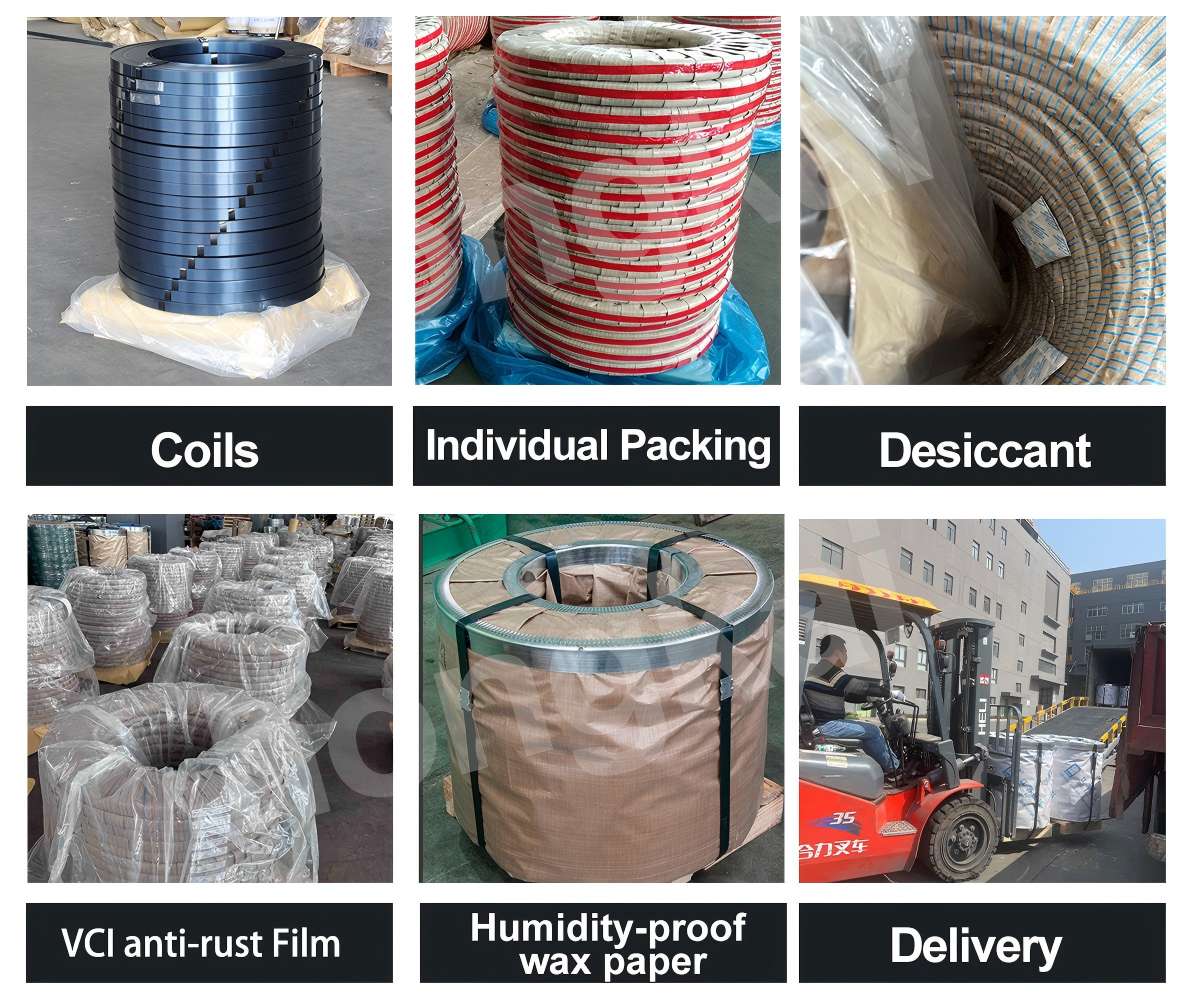

Sea-worthy packaging:Each pallet is equipped with metal rust-preventive desiccants inside,enveloped with VCI anti-rust film,covered with moisture-resistant wax paper externally,reinforced with four straps.Fixed on fumigation free wooden pallets or steel pallets.
A: Nexa Steel Strapping is a high-tensile steel banding strap with tensile strength around 980 MPa, designed to deliver maximum break strength and very low elongation, making it suitable for heavy-duty loads, industrial cargo, steel coils, machinery, construction materials, and export-grade packaging.
You should choose Nexa when your cargo is heavy, rigid, irregular, or destined for long-distance shipping / container export — situations where load stability, minimal stretch, and secure bundling are critical.
A: Nexa offers wide strap bands including 2 in steel strapping band (≈ 50 mm wide) — one of the highest-search-volume and most widely requested specifications. This wider band increases cross-sectional area, thereby boosting load-bearing and breaking strength, which is essential for securing heavy pallets, machinery, metal coils and large crates. The 2 in band reduces the number of straps needed per load, improves load stability, and is especially favored in export cargo and industrial shipments.

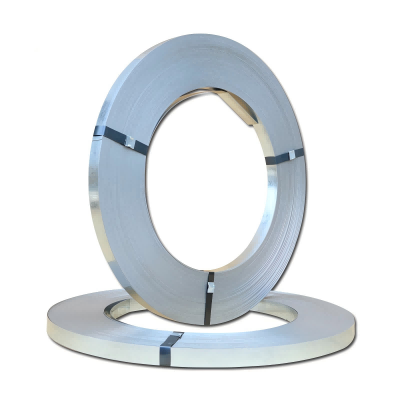

A: Nexa Steel Strapping can be supplied with several surface treatments: painted & waxed, or galvanized (zinc-coated) finish. For export shipments, sea freight, container transport, or humid/coastal destinations, galvanized steel banding is strongly recommended — the zinc coating offers superior corrosion and rust resistance, preserving strap integrity during long-term storage or transit. For standard warehouse, dry storage or short-distance shipments, painted & waxed finish may suffice. Custom coating options are also available for OEM / private-label orders.
A: Nexa Steel Strapping is offered in multiple coil/winding formats: ribbon-wound, oscillated-wound, and jumbo/bulk coils. Ribbon-wound coils are suitable for manual or pneumatic strapping tools for smaller bundles or pallet loads. Oscillated coils are ideal for semi-automatic or general packaging lines. Jumbo (bulk) coils are designed for large-volume orders, factory production, or heavy freight shipments — providing economical bulk supply for distributors or exporters.When selecting coil format, consider your tooling (manual / machine), load size/volume, and whether you need bulk supply for ongoing export shipments.
A: Nexa is widely used across industries such as metal processing & steel coils, machinery & heavy equipment, construction materials, timber and wood bundles, building materials, palletized export cargo, and industrial manufacturing.
It is especially preferred for heavy, rigid, or sharp-edged items (metal pipes, steel sheets, coils), where the superior tensile strength and minimal elongation of high-tensile steel banding ensure secure bundling and reduce risk of load shift, deformation, or strap failure — important in long-distance, containerized or overseas shipping.
A: Yes. As a manufacturer or supplier offering Nexa series steel strapping, custom orders are supported. You can specify strap width (e.g., 2 in), thickness/spec, coil format (bulk, jumbo, ribbon, oscillated), surface finish (galvanized, painted & waxed, custom coating), and packaging requirements (bulk coil packing, export-ready wrapping, palletization, moisture / rust protection). This flexibility makes Nexa an ideal solution for distributors, wholesalers, OEM clients, or large-volume exporters needing tailored banding solutions.
A: Because Nexa is high-tensile, proper handling is crucial to ensure safety and performance. Follow these recommendations:
Always use appropriate tensioners, sealers or automatic strapping machines — ensure tools are compatible with strap width (2 in) and thickness.
Wear proper personal protective equipment (PPE): cut-resistant gloves, safety glasses, and protective footwear to guard against sharp edges or strap recoil — especially when cutting or sealing.
Choose correct seal type (seals/clips/joints) — the joint/seal strength must match or exceed strap strength; a weak seal/joint undermines the strap’s load capacity.
For coated (galvanized / painted) straps — store coils in dry, humidity-controlled warehouses before use; avoid exposure to moisture / salt air to preserve coating and prevent rust.
A: Compared with PET or plastic strapping, high-tensile steel strapping like Nexa has significantly higher breaking strength, minimal elongation (keeping tension even under heavy load), and excellent rigidity — essential for heavy, sharp-edged, or bulky items (e.g. steel coils, machinery, construction materials) that require stable load containment.
Moreover, steel straps (especially galvanized) offer better resistance to environmental stress (rust, humidity, abrasion) than many plastic alternatives, making them more reliable for export, container shipping, and long-distance logistics.
