UltiMax™
JUHONG
3/4",1-1/4"
0.031"
(Q195)550-700Mpa / (Q235)680-780Mpa / (Q345)780-880Mpa /(DB460)880-980Mpa / High tensile steel strapping 1000+Mpa
Manual or Full Automatic
Durable
SGS,ISO
blue,black ,galvanized
19,32
0.79
406mm
| Surface treatment: | |
|---|---|
In demanding packaging and shipping applications — such as steel coils, non-ferrous metal bundles, glass slabs, or heavy construction materials — ordinary steel strapping may crack, break or lose tension under shock or vibration. By contrast, high-tensile steel strapping with high elongation absorbs impact, maintains hold and ensures load integrity.

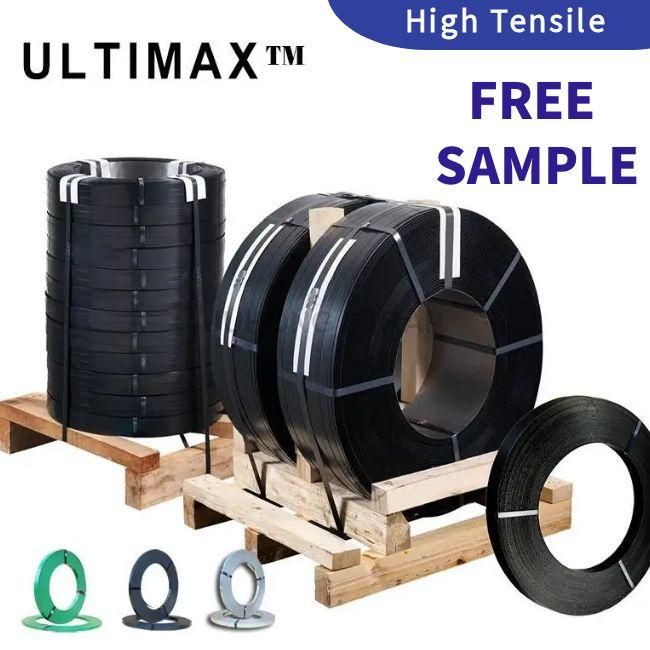

At JUHONG, our UltiMax™ line is engineered to deliver both superior tensile strength and elevated elongation, giving you a dual advantage: high break resistance and the ability to stretch under load without failure.
We build our UltiMax™ product in accordance with the leading industry standards:
ASTM D3953-15 “Standard Specification for Strapping, Flat Steel and Seals” — covers flat steel strapping and seals used in closing, bundling, palletizing, car-loading and more.
EN 13246:2001 “Packaging — Specification for tensional steel strapping” — defines dimensions and mechanical properties (tensile strength, elongation) of tensional steel strapping.
| JUHONG PACKING MATERIAL | UltiMax™ | |||||
| Width | Thickness | Average Strength | ||||
| in | mm | in | mm | Ibs | N | N/mm² |
| 3/4 | 19 | 0.031 | 0.79 | 3444 | 15310 | 1020 |
| 1-1/4 | 31.75 | 0.031 | 0.79 | 5755 | 25584 | 1020 |
Weight Range: Roll weights vary from 5kg mini rolls to 1000kg jumbo rolls.
Stable Tensile Strength and elongation rate: Engineered with multiple tensile mold, regular tensile, high tensile and low elongation, high tensile and high elongation. our strapping resists breakage even under extreme tension, securing cargo integrity throughout rigorous handling processes.
Demand the highest level of security? Ridge™ High Tensile Steel Strapping is engineered for heavy-duty packaging. With superior break strength, it confidently secures steel coils, heavy machinery, construction beams, and high-value shipments ,where failure is not an option,Invest in Ridge for maximum load integrity and minimized risk.
It is designed for demands that require metal straps with a common tensile strength grade of 1080N/mm².
There are three surface treatment methods for our steel banding.
Ribbon wound coil steel strapping with a width 12.7mm/16mm/19mm is usually 25-30kgs per roll.25mm steel strapping:36-40kgs per rolls.32mm steel banding:45-50kgs per roll.around 1 ton per pallet.Ribbon is generally suitable for manual strapping tools and pneumatic strapping tools.
Oscillate wound coil steel strapping with a width 12.7mm/16mm/19mm is usually 40-50kgs per roll.12-18 rolls per pallet.Oscillated is generally suitable for manual strapping tools or pneumatic strapping tools or steel strapping machine.
Jumbo wound coil steel strapping with a width 32mm is usually 180kgs/280kgs/360kgs/400kgs/500kgs/1000kgs.Jumbo is generally suitable for steel strapping machine.
The dimensions and weights of the steel strips mentioned above are some of our more common standards. If you need other width dimensions or required weights, we can accept customization. Welcome to consult!
| Series | Standard | Tensile Classification | Tensile Strength(MPa) | Application |
| UltiMax | ASTM D3953 &EN 13246 (Global Standards) | High Tensile & High Elongation | 1020Mpa | Critical Export Freight & Heavy Machinery Transport, Hot-Rolled Coils (adapts to thermal shrinkage), High-Strength Cables, Steel Strand, Transformers, and Silicon Steel. |
| Nexa | GB/T 25820-2025 (China Standard) | High Tensile & Low Elongation | 980Mpa | High Strength, Rigid Cargo Bundling (where minimal movement is expected). |
| Pivot / Duro | GB/T 25820-2025 (China Standard) | Medium Tensile | 830-930Mpa | General Heavy-Duty Industrial Bundling & Medium Loads. |
| Terra / Ridge | GB/T 25820-2025 (China Standard) | Regular Tensile | 650-750Mpa | Light-to-Medium Pallets and General Carton Packaging. |
JuHong Packing materials steel strapping specification(1).pdf
Juhong Packing Materials Brochure.pdf
Juhong Steel strapping SGS EU standard Test Report.pdf
ISO9001
ISO14001
ISO45001
1-1/4 Steel Strapping SGS
3/4 Steel Strapping SGS
Sea-worthy packaging:Each pallet is equipped with metal rust-preventive desiccants inside,enveloped with VCI anti-rust film,covered with moisture-resistant wax paper externally,reinforced with four straps.Fixed on fumigation free wooden pallets or steel pallets.
Aluminium ingots & non-ferrous metal bundles: Ensures secure bundling for transport and export.
Glass products & heavy construction materials: Absorbs impact and vibration in transit.
Palletised or unitised loads for export freight: Global shipping demands high reliability; UltiMax™ delivers.
27 years of manufacturing experience in steel strapping industry.
Global logistics shipping from China, serving over 3,000 B2B customers including Fortune 500 companies.
Free sample rolls offered; video factory inspection available.
Custom colour/finish and size options; MOQ 3 Tons
Environmentally friendly and recyclable materials — aligned with global sustainability trends.
Supports industry standards (ASTM, EN) ensuring safety, reliability and customer peace of mind.
A: UltiMax is engineered as a high-tensile, high-elongation steel strapping system designed to match or surpass performance of leading high-grade steel straps — including Signode Magnus and USLM series, widely used globally for heavy-duty packaging and lifting/securing of heavy industrial cargo. Signode Magnus/USLM straps are cold-rolled and heat-treated medium-carbon steel, providing high tensile strength (often in range of 950–1050 MPa or higher), excellent shock-resistance, and suitability for the most demanding loads (steel coils, heavy pipes, bulk cargo in exports).
UltiMax mirrors these critical properties — offering high tensile strength, high elongation (shock absorption), and heavy-load stability — but often with more competitive pricing and supplier flexibility. For buyers seeking a reliable alternative to Signode’s high-end straps (for heavy cables, transformers, dense metal goods, export shipments), UltiMax presents a cost-effective, export-ready “equivalent or alternative” solution without compromising on load security, compliance, or packaging quality.
A: Yes — UltiMax is designed to meet the stringent requirements typical of high-tensile steels used in heavy-duty industrial strapping. Signode’s Magnus straps, for example, are known for their cold-rolled + heat-treated medium-carbon steel, delivering very high tensile strength and shock resistance suitable for the heaviest-duty applications.
Similarly, UltiMax offers high break-strength, stable elongation under load, and durable performance under stress — making it suitable for heavy, dense, or high-mass cargo (steel wire bundles, heavy transformers, thick cables, dense metal components) under export or domestic transport.
A: UltiMax is particularly recommended for industries and cargo requiring maximum strength, rigidity, and load stability — especially heavy-duty / high density / high mass / high-value items. Typical applications include:
Metal products: steel coils, pipes, wire-rope bundles, structural metal goods
Electrical equipment & cables: large high-tensile cables, transformer cores, heavy wiring bundles
Heavy machinery & equipment parts, industrial components, heavy-duty crates
Dense cargo with high volume/weight per unit (e.g. lead-acid battery assemblies, dense metal slabs, dense composite blocks)
Export and international shipping: containerized cargo, long-distance freight, harsh environment transport where shock, vibration, handling stress, and corrosion resistance matter
Compared with regular steel or plastic/PET strapping — which may lack sufficient tensile strength, rigidity, or shock resistance — UltiMax (Magnus/USLM-class) ensures safer, more reliable securing for heavy or extreme cargo.
A：Yes, UltiMax™ is manufactured to comply with the most stringent global specifications, including ASTM D3953-15 (US Standard) and EN 13246 (European Standard), ensuring its reliability for international export freight. Furthermore, Juhong Packaging is actively processing AAR certification for UltiMax™, confirming its adherence to the rigorous standards required for safe North American rail shipment.
A:To ensure maximum durability for global transport, UltiMax™ Steel Strapping is available with several high-performance finishes:
Blue Tempered & Waxed
Black Painted & Waxed
Galvanized (offering the highest level of corrosion resistance for marine and harsh weather conditions)
A:UltiMax™ is produced by Juhong Packing Materials, a leading, ISO-certified China manufacturer with a robust, large-scale production capacity. We function as a global packaging supplier and support efficient factory-direct logistics and global shipping, offering competitive pricing and reliable supply for large industrial clients worldwide.
A: UltiMax is particularly suited for industries dealing with high-density, heavy, rigid or sharp-edged loads — such as steel manufacturing (wire, coils, strands), electrical components (transformers, cable spools), lead-acid battery blocks, heavy machinery parts, structural or construction materials, and any export cargo requiring maximum load security. Compared to plastic or PET strapping, UltiMax offers far higher tensile strength, minimal elongation under load, better edge resistance, and greater reliability under shock, vibration or temperature variations — crucial when shipping heavy, industrial battery assemblies, dense metal components, or high-volume cargo overseas.
A: When securing heavy loads with high-tensile steel strapping, it's vital to use proper tensioning tools and correct sealing/clipping methods to avoid over-tensioning (which can damage cargo) or under-tensioning (leading to shifting loads). Given the high strength and limited stretch, always inspect strap edges for burrs, ensure seals or clips are compatible and properly crimped, and wear appropriate personal protective equipment (PPE) — gloves, safety glasses — especially when cutting or handling straps under tension. For coated (galvanized) straps, store coils in dry, humidity-controlled environment pre-use to maintain corrosion protection.
A: UltiMax is ideal when shipping or storing goods that combine high mass density / heavy weight, compact volume, sharp edges or irregular shapes, and potentially exposure to heat, vibration or long-distance transport stress — such as high-strength cable coils, lead-acid battery blocks, steel wire bundles, heavy machinery cores, transformer stacks, silicon-steel laminations, etc. In such demanding conditions, standard straps or plastic/PET banding may risk deformation, strap failure, or load shifting — whereas UltiMax's high-tensile strength and high elongation with proper sealing ensure stable, secure bundling and long-term load integrity.
