Stainless Steel Banding for Cable, Pipe and Signage Fastening
JUHONG supplies stainless steel banding, matching buckles, and manual banding tools for securing cables, pipes, insulation, signage, and nameplates. Available in AISI 201, 304, and 316 grades, this corrosion-resistant fastening system is suitable for general outdoor, industrial, coastal, and marine applications. Supplied for wholesale, distributor, and bulk B2B orders.

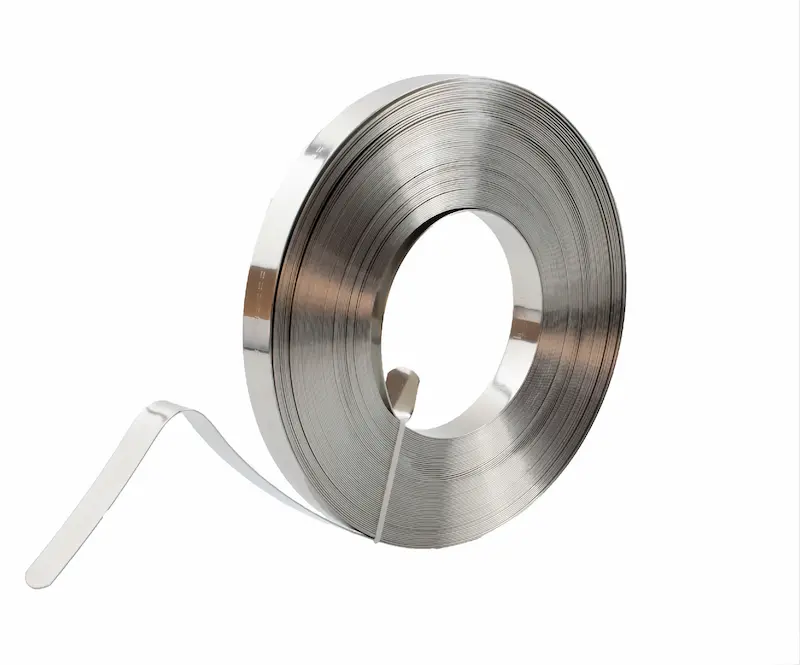

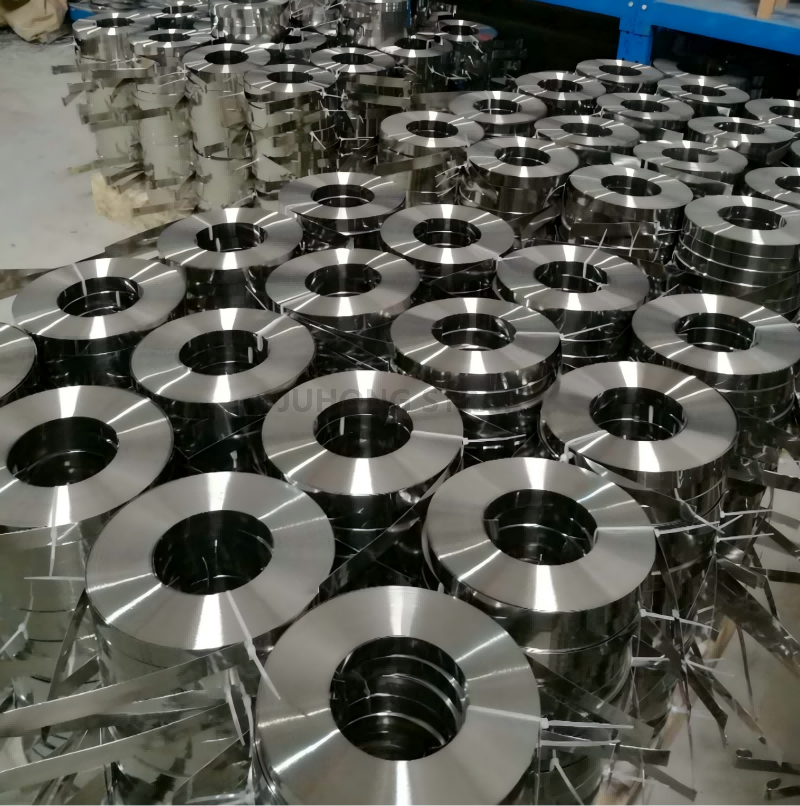

Stainless steel banding is a narrow, coiled stainless steel band used with a matching buckle and banding tool to fasten cables, pipes, insulation jacketing, signs, and identification plates. It provides a durable, corrosion-resistant fastening method for outdoor, industrial, coastal, and marine environments where plastic ties, adhesives, or conventional clamps may not provide sufficient service life.
JUHONG supplies stainless steel banding material in AISI 201, 304, and 316 grades, together with compatible stainless steel buckles and manual tensioning and cutting tools. Standard widths range from 1/4 inch to 3/4 inch, with grade selection based on the required corrosion resistance, operating environment, and fastening load.
This product is intended for bulk B2B buyers, importers, wholesalers, and distributors. Buyers should confirm the grade, width, thickness, quantity, buckle requirement, and application before requesting a quotation.
Stainless Steel Banding Grades, Standard Sizes, and Test Results
Compare available stainless steel banding sizes and mechanical test results across AISI 201, 304, and 316 grades, plus a high-strength alloy option. The tables below list each model's width, thickness, coil length, roll weight, maximum load, tensile strength, yield strength, and elongation to help buyers select corrosion-resistant banding for cable, pipe, insulation, signage, and coastal and marine fastening applications.
AISI 201 Stainless Steel Banding Sizes and Mechanical Properties
AISI 201 stainless steel banding is available in five standard models, with widths from 1/4" to 3/4" and model-specific thickness and mechanical performance values. Compare the dimensions, tensile strength, yield strength, elongation, and maximum load below to select a suitable model for your fastening requirements.
AISI 201 Models, Dimensions, and Load Ratings
Model
Width
(mm)
Thickness (mm)
Length (mm)
Tensile Strength (MPa)
Maximum Load (kN)
Yield Strength (MPa)
Elongation (%)
YT-01101
1/4" (6.4 mm)
0.65 mm
30 mm
≥515
2.1
≥260
50
YT-01102
3/8" (9.5 mm)
0.65 mm
30 mm
≥515
3.2
≥260
50
YT-01103
1/2" (12.7 mm)
0.74 mm
30 mm
≥515
4.8
≥260
50
YT-01104
5/8" (15.88 mm)
0.74 mm
30 mm
≥515
6.0
≥260
50
YT-01105
3/4" (19.05 mm)
0.74 mm
30 mm
≥515
7.2
≥260
50
AISI 304 Stainless Steel Banding Sizes and Mechanical Properties
AISI 304 stainless steel banding is available in five standard models, with widths from 1/4" to 3/4" and model-specific thickness and mechanical performance values. Compare the dimensions, tensile strength, yield strength, elongation, and maximum load below to select a suitable model for your fastening requirements.
AISI 304 Models, Dimensions, and Load Ratings
The table below compares the standard values and test results for each AISI 304 stainless steel banding model.
Model
Width
(mm)
Thickness (mm)
Length (mm)
Tensile Strength (MPa)
Maximum Load (kN)
Yield Strength (MPa)
Elongation (%)
YT-01201
1/4" (6.4 mm)
0.50 mm
30 mm
≥515
1.6
≥205
40
YT-01202
3/8" (9.5 mm)
0.76 mm
30 mm
≥515
3.7
≥205
40
YT-01203
1/2" (12.7 mm)
0.76 mm
30 mm
≥515
4.9
≥205
40
YT-01204
5/8" (15.88 mm)
0.76 mm
30 mm
≥515
6.2
≥205
40
YT-01205
3/4" (19.05 mm)
0.76 mm
30 mm
≥515
7.45
≥205
40
AISI 316 Stainless Steel Banding Sizes and Mechanical Properties
AISI 316 stainless steel banding is available in five standard models covering widths from 1/4" to 3/4". The specifications below show the thickness, coil length, roll weight, and mechanical performance values for each model, allowing buyers to compare the available options before requesting a quotation.
AISI 316 Models, Dimensions, and Load Ratings
The table below compares the standard values and test results for each AISI 316 stainless steel banding model.
Model
Width
(mm)
Thickness (mm)
Length (mm)
Tensile Strength (MPa)
Maximum Load (kN)
Yield Strength (MPa)
Elongation (%)
YT-01301
1/4" (6.4 mm)
0.50 mm
30 mm
≥515
1.6
≥205
40
YT-01302
3/8" (9.5 mm)
0.50 mm
30 mm
≥515
2.4
≥205
40
YT-01303
1/2" (12.7 mm)
0.50 mm
30 mm
≥515
3.3
≥205
40
YT-01304
5/8" (15.88 mm)
0.50 mm
30 mm
≥515
4.1
≥205
40
YT-01305
3/4" (19.05 mm)
0.50 mm
30 mm
≥515
4.1
≥205
40
HL High-Strength Stainless Steel Banding Sizes and Mechanical Properties
The HL high-strength stainless steel banding range includes five models in widths from 1/4" to 3/4". The table below compares the dimensions, tensile strength, yield strength, elongation, and maximum load of each model to help buyers evaluate the required size and mechanical performance.
HL High-Strength Models, Dimensions, and Load Ratings
The table below compares the standard values and test results listed for each HL high-strength stainless steel banding model.
Model
Width
(mm)
Thickness (mm)
Length (mm)
Tensile Strength (MPa)
Maximum Load (kN)
Yield Strength (MPa)
Elongation (%)
YT-01401
1/4" (6.4 mm)
0.65 mm
30 mm
≥655
2.7
≥205
40
YT-01402
3/8" (9.5 mm)
0.65 mm
30 mm
≥655
4.0
≥205
40
YT-01403
1/2" (12.7 mm)
0.65 mm
30 mm
≥655
6.2
≥205
40
YT-01404
5/8" (15.88 mm)
0.75 mm
30 mm
≥655
7.8
≥205
40
YT-01405
3/4" (19.05 mm)
0.75 mm
30 mm
≥655
9.3
≥205
40
Stainless Steel Banding Applications by Industry
Cable and Pipe Fastening
Cable banding and pipe banding are used to secure cables, wire bundles, pipes, and protective coverings in power, telecom, and utility installations. The adjustable band-and-buckle system can accommodate different diameters and irregular shapes.
Marine and Coastal Applications
Marine-grade stainless steel banding is used for cable, hose, and pipe fastening in coastal facilities, shipboard systems, and marine splash zones. AISI 316 is generally preferred where salt or chloride exposure is a major concern.

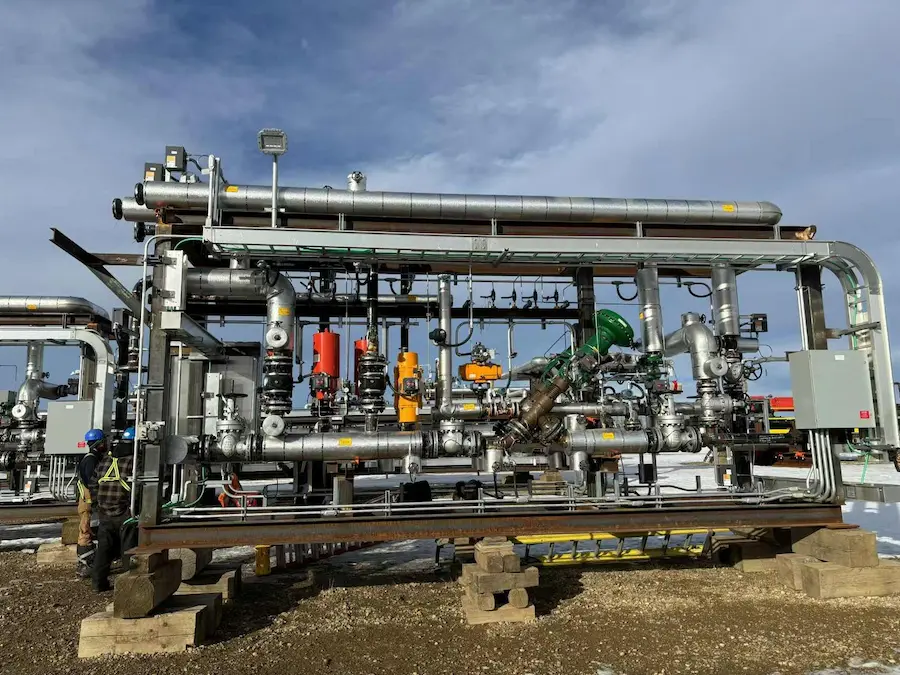

HVAC and Insulation Jacketing
Banding for pipe insulation helps hold metal jacketing and insulation materials around pipes, ducts, and industrial equipment. It provides a durable alternative to fastening materials that may age or weaken outdoors.

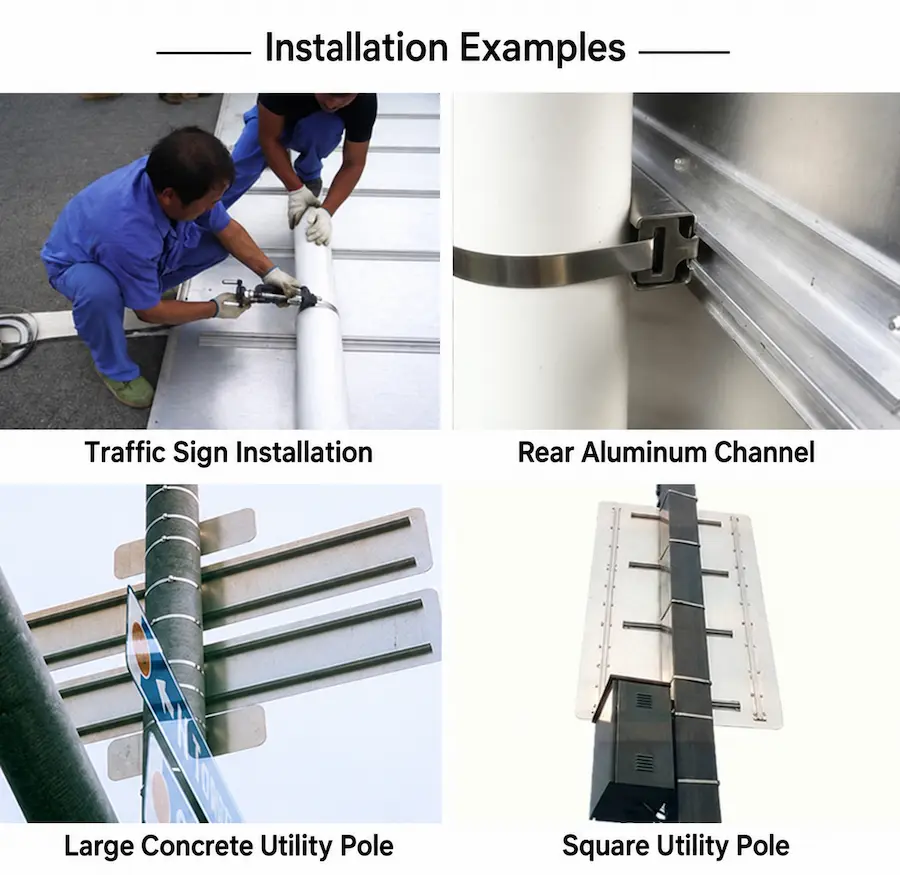

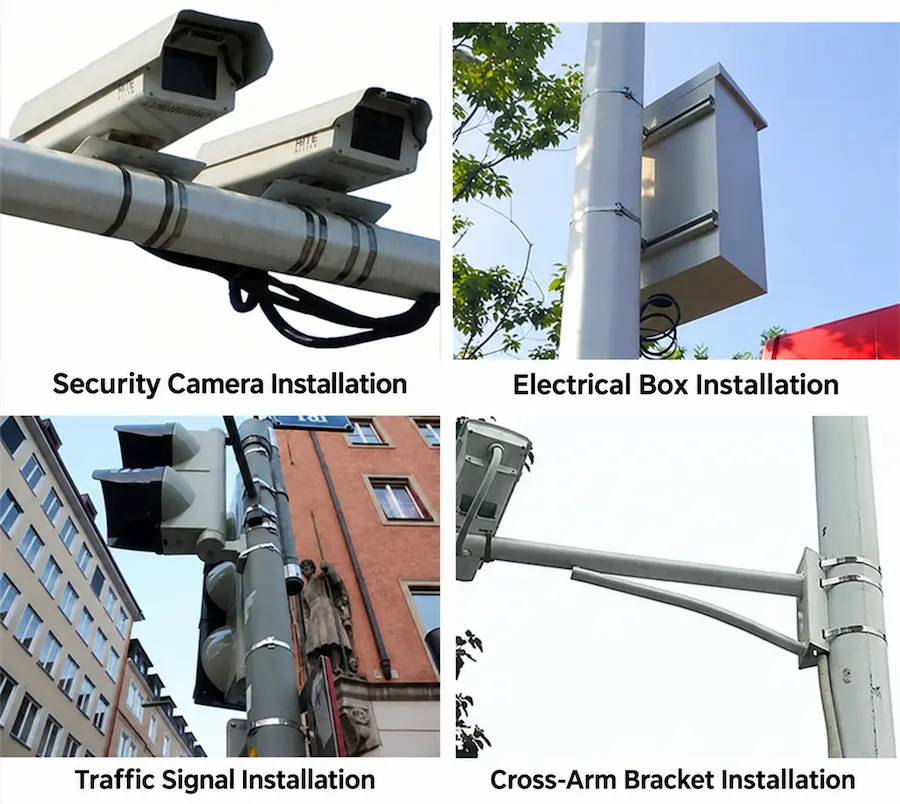

Signage and Nameplate Installation
Stainless metal banding can be used to mount traffic signs, advertising panels, identification plates, and equipment tags to poles or structures without drilling directly into the supporting surface.
Chemical and Industrial Environments
Corrosion-resistant banding is suitable for pipework, cable trays, and equipment fastening in industrial environments. For exposure to acids, alkalis, elevated temperatures, or specific chemicals, buyers should provide the medium, concentration, temperature, and exposure duration before grade selection.
Automotive and Equipment Fastening
Stainless steel straps and bands can secure hoses, cables, and protective components where a conventional fixed-diameter clamp is unsuitable. Suitability should be checked against the required geometry, vibration, and fastening load.

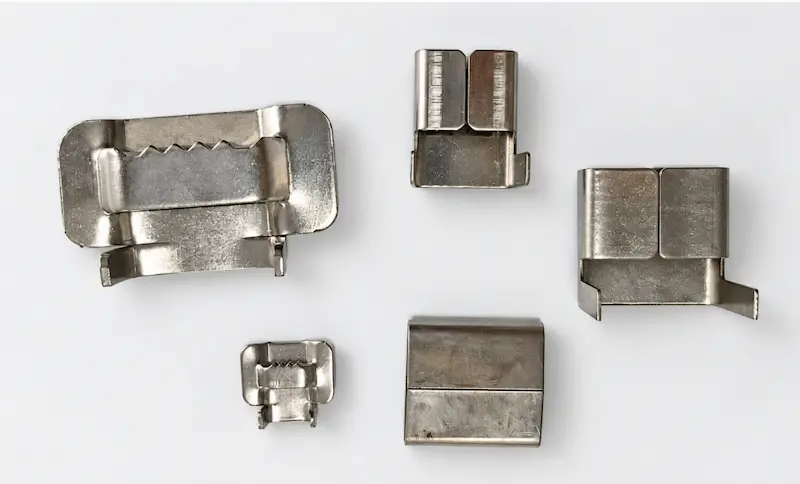

Stainless Steel Buckles and Seals
Stainless steel buckles and seals are used with matching stainless steel banding to complete the fastening system. Available options include ear-lock buckles, L-type wing seals, and closed seals. Select the buckle or seal according to the band width, thickness, and installation method.
Stainless Steel Ear-Lokt Buckles
Stainless steel ear-lock buckles are used with matching band widths to form secure fastening assemblies. The buckle is installed after the band has been wrapped and tensioned, creating a compact connection for cable, pipe, insulation, and signage applications.
Standard buckle sizes are available to match 3/8", 1/2", 5/8", and 3/4" bands. Buckle material, dimensions, and joint strength should be selected according to the band grade, width, and intended environment.
Model
Width
(mm)
Thickness (mm)
Length (mm)
Tensile Strength (MPa)
Maximum Load (kN)
Yield Strength (MPa)
Elongation (%)
YT-03101
28 mm
1.0 mm
16 mm
≥800
4.0
≥515
220
YT-03102
28 mm
1.0 mm
16 mm
≥800
4.0
≥515
220
YT-03103
31 mm
1.2 mm
22.5 mm
≥800
9.6
≥515
220
YT-03104
35 mm
1.2 mm
22.5 mm
≥800
9.6
≥515
220
YT-03105
35 mm
1.5 mm
22.5 mm
≥800
11.4
≥515
220
YT-03106
41 mm
1.5 mm
23.5 mm
≥800
11.4
≥515
220

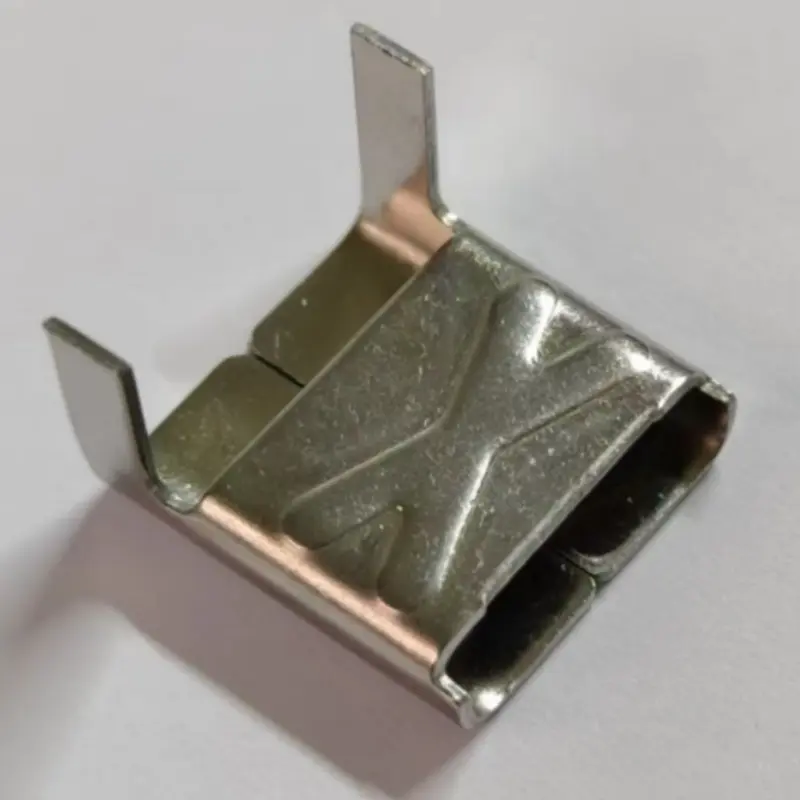

Stainless Steel L-Type Wing Seals
Stainless steel L-type wing seals, also called banding clips, use fold-over wings to secure the band. They can be used with stainless steel banding for fastening around poles, pipes, and other structures.

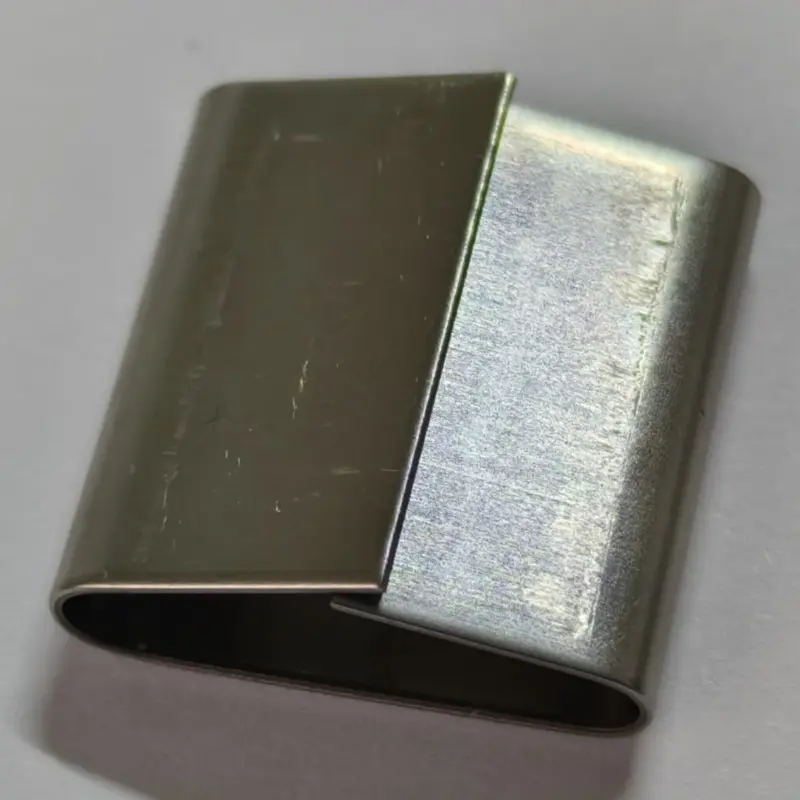

Stainless Steel Closed Seals
Stainless steel closed seals have a sleeve-style design through which the band is threaded before tensioning and sealing. Buyers should confirm the band width, thickness, and required sealing tool before ordering.
A buckle intended for one band width should not be substituted for another. Additional stainless steel buckle or clip configurations may be available for specific projects; buyers can send a drawing, sample, OEM reference, or required band size for confirmation.
Manual Stainless Steel Banding Tools
The four manual stainless steel banding tools below combine tensioning and cutting for installing banding with matching buckles or self-locking stainless steel cable ties. The available working range differs by model, so buyers should compare the band width, thickness, joint type, and required tension before selection.

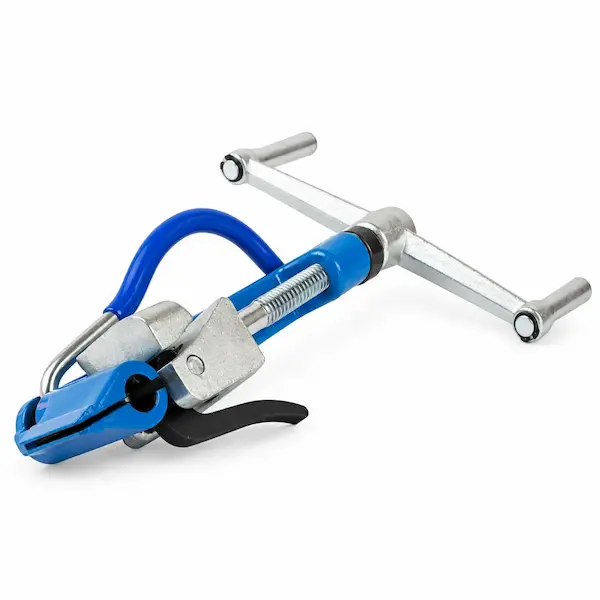

YT-06001 integrates manual tensioning and cutting for stainless steel banding used with buckles or buckle-mounted ties. It supports band widths from 8 to 25 mm and thicknesses up to 1.0 mm. Tested maximum pull: 12 kN; cutting durability: at least 3,000 cycles.

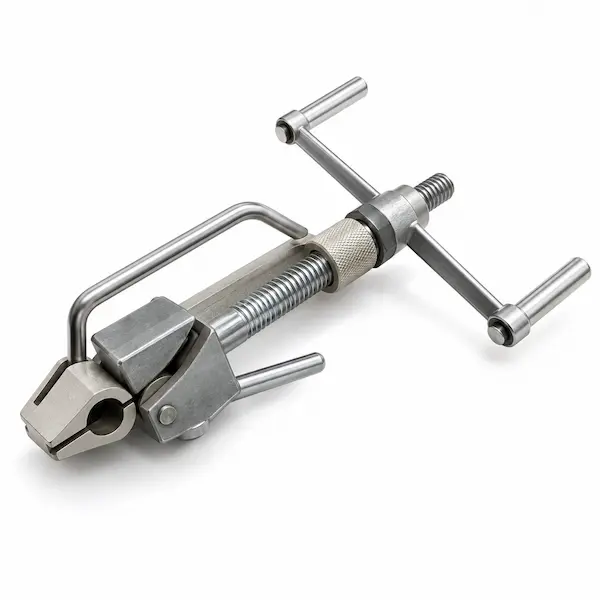

YT-06002 Wide-Range Stainless Steel Banding Tool
YT-06002 is a manual metal banding tool with integrated tensioning and cutting. It supports band widths from 8 to 32 mm and thicknesses up to 1.2 mm. Tested maximum pull: 18 kN; cutting durability: at least 3,000 cycles.

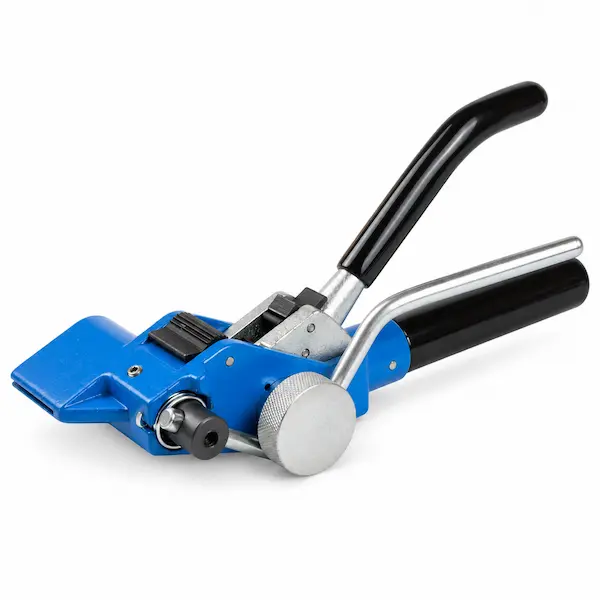

YT-06003 LQA Ratchet-Type Banding Tool for Self-Locking Ties
YT-06003 is designed for tensioning and cutting self-locking stainless steel cable ties. It supports widths from 8 to 20 mm and thicknesses up to 0.8 mm. Tested maximum pull: 8 kN; cutting durability: more than 3,000 cycles.
YT-06004 Manual Metal Banding Tensioner and Cutter
YT-06004 combines tensioning and cutting for buckle-fastened stainless steel banding. It supports band widths from 8 to 23 mm and thicknesses from 0.25 to 1.0 mm, with a recommended tension of 10 kN. Tested maximum pull: 12 kN; cutting durability: at least 5,000 cycles.
The tools use a high-strength carbon-steel body and a tool-steel blade. To confirm tool compatibility before ordering, provide the band width, thickness, buckle or locking type, and required installation tension.
How to Match Stainless Steel Banding, Buckles, and Tools
A reliable fastening system depends on the compatibility of the band, buckle, and installation tool. Selecting each component separately without checking the complete system may reduce joint reliability.
1. Select the Stainless Steel Grade
Choose AISI 201 for cost-sensitive general outdoor use, AISI 304 for humid and general industrial environments, or AISI 316 for coastal, marine, and chloride-exposed applications.
2. Confirm Band Width and Thickness
Select the stainless strap size according to the fastening diameter, expected load, available installation space and required safety margin. Wider banding generally provides greater load capacity, but thickness and material grade must also be considered.
3. Match the Buckle to the Band
The buckle must match the band width and should be compatible with the selected stainless steel grade and environment. An incorrectly sized buckle can reduce joint security or prevent proper installation.
4. Choose a Compatible Banding Tool
Confirm that the manual banding tool supports the selected band width and thickness. The recommended operating range is more important than the tool's absolute maximum cutting capacity.
Component
Information Buyers Should Confirm
Stainless steel banding
Grade, width, thickness, and coil quantity
Stainless steel buckle
Matching width, material, and joint requirement
Banding tool
Supported width, thickness, and tension requirement
Application
Cable, pipe, insulation, signage, marine or industrial use
Environment
Humidity, salt, chemicals, and operating temperature

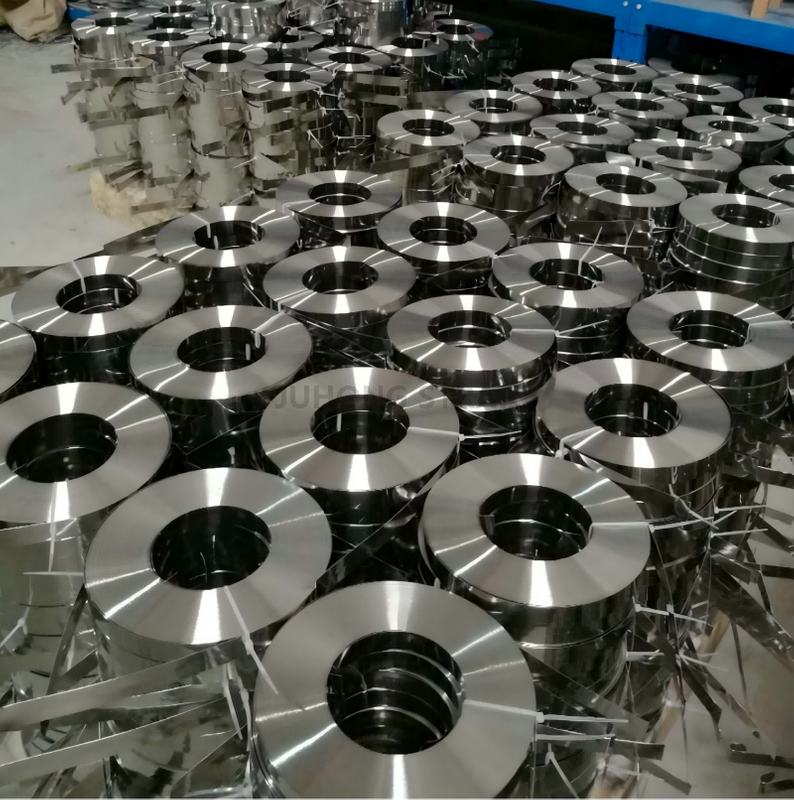

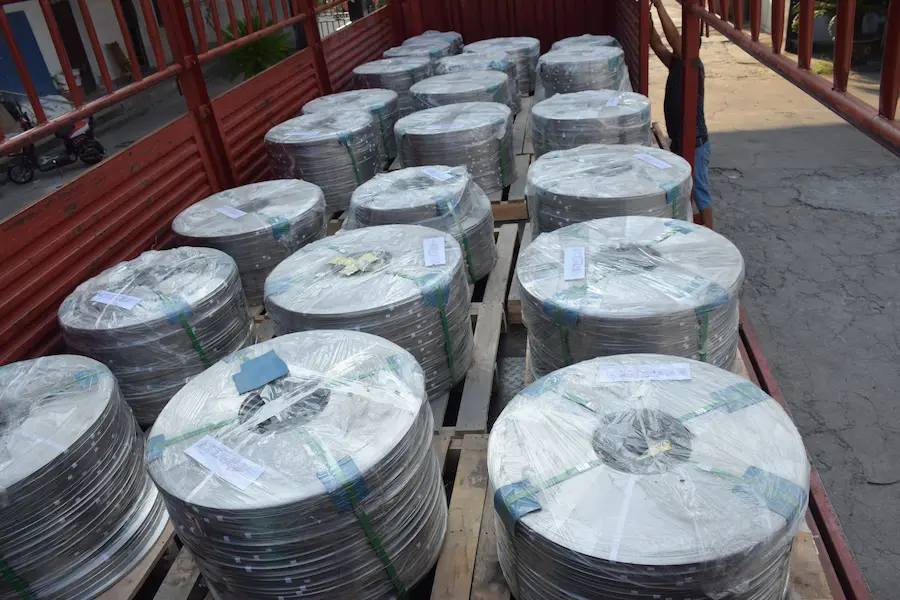

Stainless Steel Banding Packaging Options

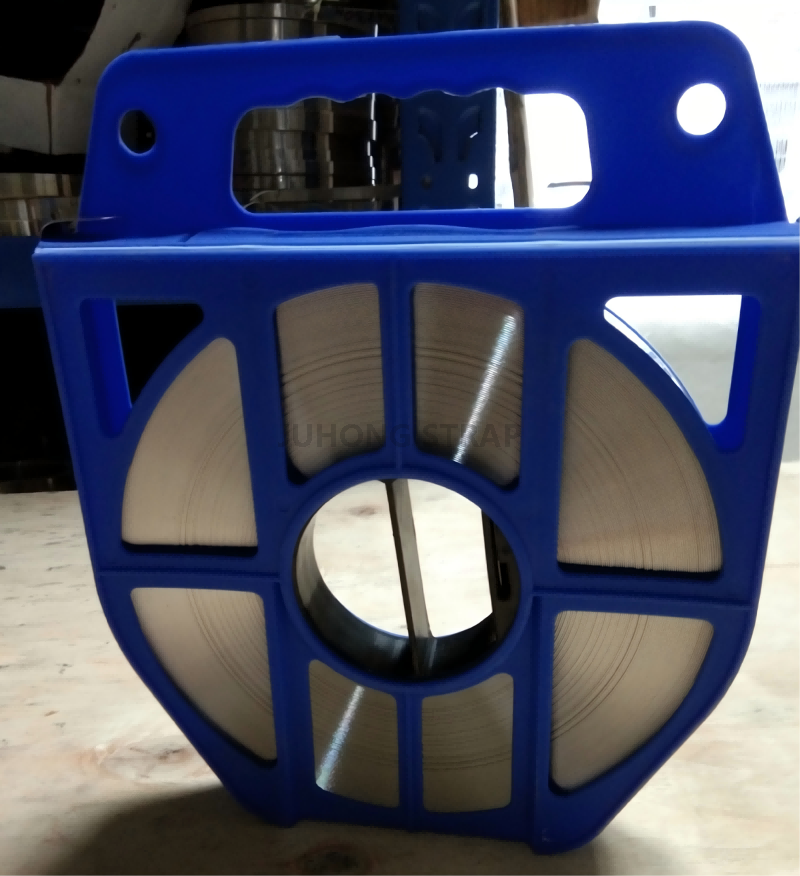

Standard coils are supplied in 30.5 m lengths. Carton-box and plastic-dispenser packaging options are available depending on the material and product configuration. Matching buckles are available in boxes of 100 pieces.
Importers and distributors should confirm the following before ordering:
Required packaging style
Number of rolls per carton
Buckle quantity per box
Net and gross weight
Carton dimensions
Pallet requirements
Shipping marks or private-label packaging
Final packing details should be confirmed according to the selected grade, band size, buckle type, and order quantity.
Stainless Steel Banding vs. Heavy-Duty Steel Strapping
This stainless steel banding system is designed for fastening cables, pipes, insulation, and signs with matching buckles and installation tools. For securing steel coils, timber, construction materials, or heavy export loads, use heavy-duty carbon steel strapping instead.
Stainless Steel Banding
Heavy-Duty Steel Strapping
Used for cables, pipes, insulation, and signs
Used for steel coils, timber, construction materials, and heavy pallets
Selected primarily for corrosion resistance and installation environment
Selected primarily for load restraint, tensile strength, and transport conditions
Used with stainless steel buckles and banding tools
Used with steel strapping seals or sealless strapping tools
Commonly supplied in narrow 30.5 m coils
Supplied in ribbon, oscillated-wound, or jumbo coils
If your application is steel coil, timber, brick, metal bundle, or export-pallet securing, see JUHONG's heavy-duty steel strapping range instead.
Why Source Stainless Steel Banding Through JUHONG?
JUHONG Packing Materials has served industrial packaging buyers since 1997. This product is offered as part of our broader industrial packaging and fastening supply range for overseas distributors, importers, and bulk users.
Buyers can source the banding, matching buckles, and compatible tools through one quotation and specification-confirmation process. Existing customers may also consolidate these products with the following packaging materials when appropriate:
Steel strapping for steel coils, timber, construction materials, and heavy cargo
PET strapping for palletized loads requiring high retained tension.
Stretch film for pallet containment and surface protection.
Strapping seals for carbon steel strapping systems; stainless steel banding uses the matching Ear-Lokt buckles shown above.
Our team helps buyers confirm:
The appropriate 201, 304, or 316 stainless steel grade
Band width, thickness, and coil quantity
Matching stainless steel buckle size
Compatible manual banding tool
Packaging and private-label requirements
Destination-market documentation requirements
Bulk Stainless Steel Banding Orders and Customization
Standard sizes and selected custom specifications are available for bulk orders. Send us your required grade, width, thickness, and quantity for confirmation. Before requesting a stainless steel banding quotation, please provide:
Required stainless steel grade
Band width and thickness
Required quantity or number of coils
Application and operating environment
Matching buckle requirement
Manual banding tool requirement
Destination country and delivery term
Stainless Steel Banding FAQs
What Is Stainless Steel Banding Used For?
Stainless steel banding, also called stainless steel strapping, is used with matching buckles and installation tools to fasten cables, pipes, insulation jacketing, signs, and identification plates. It is different from the heavy-duty carbon steel strapping used to secure steel coils, timber, construction materials, and export loads.
How Do I Choose Between AISI 201, 304 and 316 Stainless Steel Banding?
AISI 201, 304, and 316 stainless steel banding differ in material composition, mechanical properties, and corrosion resistance. Selection should be based on the operating environment, required fastening load, band dimensions, and compatibility with the buckle and installation tool. For exposure to salt, chemicals, or elevated temperatures, provide the specific service conditions for confirmation.
What Sizes of Stainless Steel Banding Are Available?
Available widths include 1/4" (6.4 mm), 3/8" (9.5 mm), 1/2" (12.7 mm), 5/8" (15.88 mm) and 3/4" (19.05 mm). Standard coils are 30.5 m long. Available thicknesses vary according to the material grade, width, and model.
What Buckle Do I Need for Stainless Steel Banding?
The buckle width must match the selected stainless steel banding width. Available ear-lock buckle sizes include 3/8" (9.5 mm), 1/2" (12.7 mm), 5/8" (15.88 mm) and 3/4" (19.05 mm). Provide the band width, thickness, and material grade when requesting a matching buckle.
What Tool Is Used to Install Stainless Steel Banding?
A manual banding tool is used to tension and cut the band during installation. Available models support different band widths, thicknesses, and joint configurations. Confirm the band dimensions and buckle or locking type before selecting the tool.
Can Stainless Steel Banding, Buckles and Tools Be Ordered Together?
Yes. JUHONG can supply stainless steel banding with matching Ear-Lokt buckles and compatible manual installation tools for bulk orders. Provide the required grade, width, thickness, and quantity so the components can be checked together.
Are Custom Stainless Steel Banding Specifications Available?
Selected custom specifications may be available for bulk orders. Please provide the required material grade, width, thickness, quantity, and application for confirmation.
What Information Is Required for a Stainless Steel Banding Quotation?
Please provide the required material grade, band width, thickness, coil quantity, application, operating conditions, buckle requirement, tool requirement, and destination. If the exact specification is unknown, send a photo, drawing, sample dimensions, or existing model reference for review.
