Steel Strapping Manufacturer Since 1997

1. Meet Chinese (GB), European(EN), American(ASTM) standard
2. Comprehensive one-stop solution for packing materials; Supplier of Fortune 500
3. Rebust quality control progress; professional intl sales team
Request a Quote

Why Choose Juhong Steel Strapping?

China's Leading Steel Strapping Manufacturer
| Your Global Industrial Partner
01.



Full Surface Treatment Types


Blue Steel Strapping,Black Painted & Waxed Steel Strapping,and Galvanized Steel Strapping for corrosion resistance and durability.
02.



Strength Flexibility


Standard steel strap to High-Tensile steel strap , our strapping adapts seamlessly to diverse load requirements, from lightweight pallets to heavy-duty industrial shipments cargo.
03.



Tailored Solutions


We can help you select the metal strapping that are suitable for your industry. Additionally, we can also provide OEM services.
04.



Direct Factory Advantage


Large-scale production ensures competitive pricing and fast delivery
05.



Free Sample & High Quality


We guarantee that our quality will definitely meet your requirements, and we assure you that the goods you receive will match the expected quality. If there are any issues, we will take full responsibility.
06.



Supplier of Fortune 500


We take pride in being a preferred supplier to numerous Fortune 500 companies worldwide, with a clientele exceeding 3000 both domestically and internationally.



Our Steel Strapping Products

Can't Find Ideal Steel Strapping For Your Industries?

What Is Steel Strapping?

Steel strapping is also known as metal strapping,It has a much higher breaking strength, however, which can be indispensable for heavy and heaviest packages,Our steel banding undergoes a proprietary deburring process, ensuring smooth, rounded edges that eliminate the risk of cuts or abrasions during handling. This feature not only enhances operator safety but also minimizes damage to packaged goods.

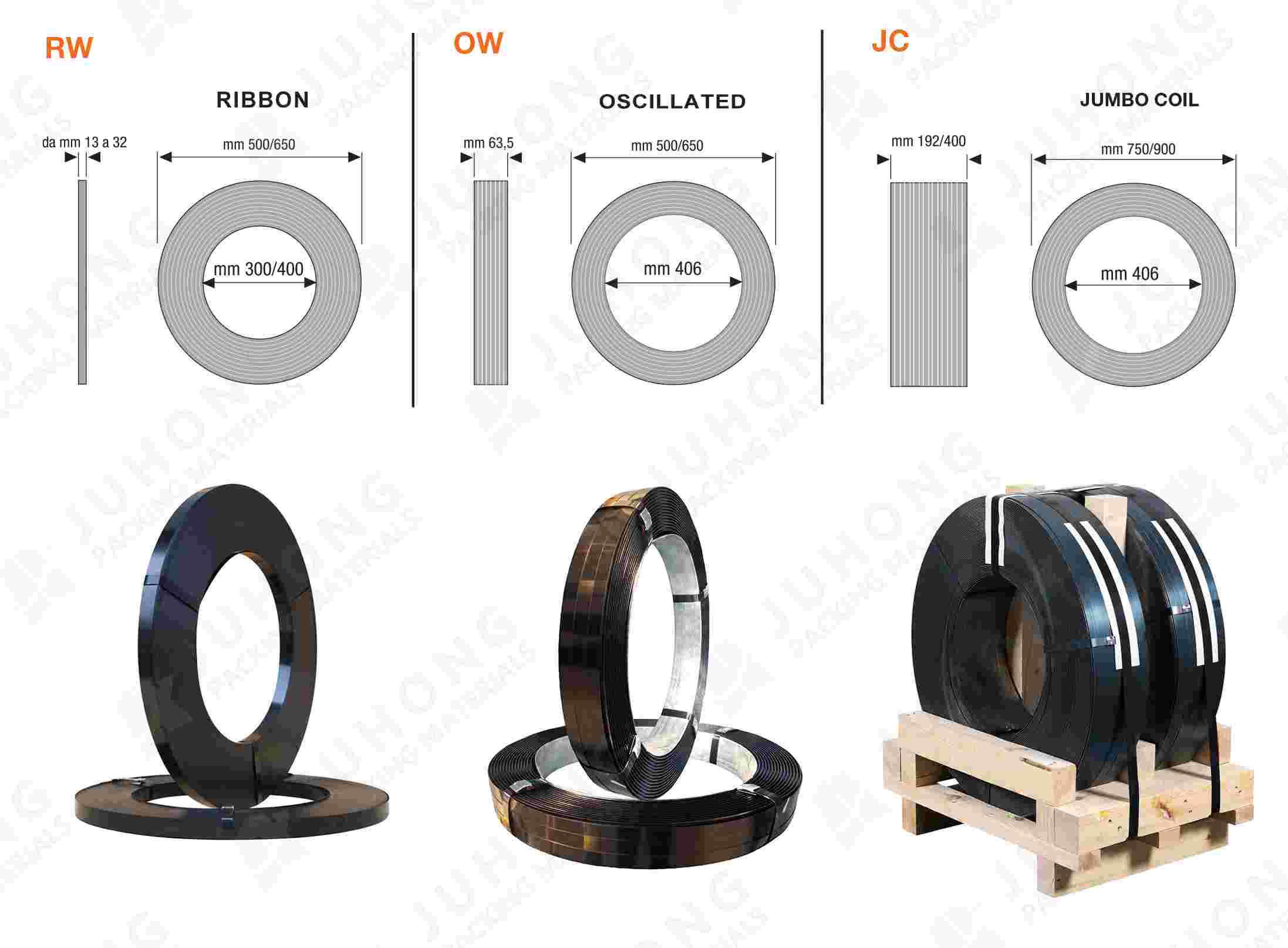

Steel Strapping Wind Way





Ribbon Wound (RW)


Ribbon wound coil steel strapping with a width 12.7mm/16mm/19mm is usually 25-30kgs per roll.
25mm steel strapping: 36-40kgs per rolls.32mm steel banding: 45-50kgs per roll.around 1 ton per pallet.
Surface teatment: Blue Tempered & Waxed, Black/Green Painted and Waxed,cold rolled,and Galvanized,Ribbon is generally suitable for manual strapping tools and pneumatic strapping tools.



Oscillated Wound (OW)


Oscillate wound coil steel strapping with a width 12.7mm/16mm/19mm is usually 40-50kgs per roll.12-18 rolls per pallet.
Surface teatment :Blue Tempered & Waxed, Black/Green Painted and Waxed,cold rolled,and Galvanized,Oscillated is generally suitable for manual strapping tools or pneumatic strapping tools or steel strapping machine.






Jumbo Coil ( JC )


Jumbo wound coil steel strapping with a width 32mm is usually 180kgs/280kgs/360kgs/400kgs/500kgs/1000kgs.
Surface teatment :Blue Tempered & Waxed，Black/Green Painted and Waxed,cold rolled,and Galvanized,Jumbo is generally suitable for steel strapping machine.



wind way of steel strapping(1)

Steel Strapping Specifications

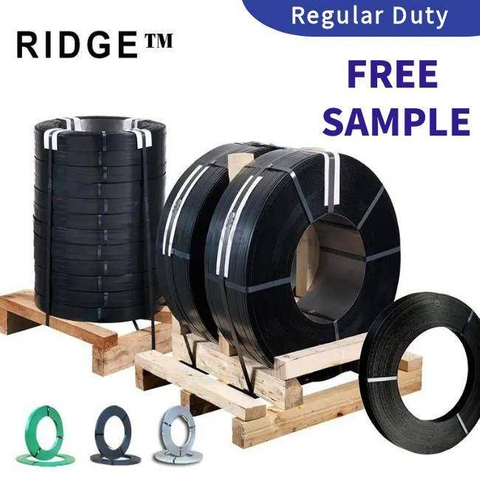

JUHONG PACKING MATERIALS Terra Ridge Pivot Duro Nexa juhong-logo-white
Width Thickness Average Strength Average Strength Average Strength Average Strength Average Strength Length/Weight Coil
in mm in mm lbs N N/mm² lbs N N/mm² lbs N N/mm² lbs N N/mm² lbs N N/mm² ft/lb m/kg Winding
 1/2 12.7 0.015  0.38  706  3137  650  / / / / / / / / / / / / 39.2  26.5  M/R
 1/2 12.7 0.020  0.51  947  4210  650  1093  4858  750  1209  5376  830  1282  5700  880  1428  6347  980  29.4  19.8  M/R/O/J
 1/2 12.7 0.023  0.58  1077  4788  650  1243  5525  750  1375  6114  830  1458  6482  880  1624  7219  980  25.6  17.2  M/R/O/J
 5/8 16 0.015  0.38  889  3952  650  / / / / / / / / / / / / 29.6  20.0  M/R
 5/8 16 0.020  0.51  1193  5304  650  1377  6120  750  1524  6773  830  1615  7181  880  1799  7997  980  23.6  15.9  M/R/O/J
 5/8 16 0.023  0.58  1357  6032  650  1566  6960  750  1733  7702  830  1837  8166  880  2046  9094  980  20.5  13.8  M/R/O/J
 3/4 19 0.020  0.51  1417  6299  650  1635  7268  750  1809  8043  830  1918  8527  880  2136  9496  980  19.6  13.2  M/R/O/J
 3/4 19 0.023  0.58  1611  7163  650  1859  8265  750  2058  9147  830  2182  9698  880  2429  10800  980  17.1  11.5  M/R/O/J
 3/4 19 0.028  0.71  1973  8769  650  2276  10118  750  2519  11197  830  2671  11871  880  2974  13220  980  14.2  9.6  M/R/O/J
 3/4 19 0.031  0.79  2195  9757  650  2532  11258  750  2803  12458  830  2971  13209  880  3309  14710  980  12.5  8.4  M/R/O/J
 3/4 19 0.035  0.89  2473  10992  650  2853  12683  750  3157  14035  830  3348  14881  880  3728  16572  980  11.1  7.5  M/R/O/J
1     25 0.031  0.79  2888  12838  650  3332  14813  750  3688  16393  830  3910  17380  880  4354  19355  980  9.5  6.4  M/R/J
1     25 0.035  0.89  3253  14463  650  3754  16688  750  4154  18468  830  4405  19580  880  4905  21805  980  8.5  5.7  M/R/J
1 1/4 31.75 0.028  0.71  3296  14653  650  3803  16907  750  4209  18710  830  4463  19837  880  4970  22092  980  8.5  5.7  M/R/J
1 1/4 31.75 0.031  0.79  3668  16304  650  4232  18812  750  4683  20818  830  4965  22073  880  5530  24581  980  7.4  5.0  M/R/J
1 1/4 31.75 0.035  0.89  4132  18367  650  4768  21193  750  5276  23454  830  5594  24867  880  6230  27692  980  6.7  4.5  M/R/J
UltiMax HT
Width Thickness Average Strength Elongation Length/Weight Coil
in mm in mm lbs N N/mm² % (L=100mm ) ft/lb m/kg Winding
 3/4 19 0.031 0.79 3444  15310  1020 ≥10% 12.5 8.4 R/O/J
1 1/4 31.75 0.031 0.79 5755  25584  1020 ≥10% 7.4 5 R/O/J
* M=Mini wound, R=Ribbon wound, O=Oscillated wound, J=Jumbo wound

Surface Treatment of Steel Strapping

Placeholder Image

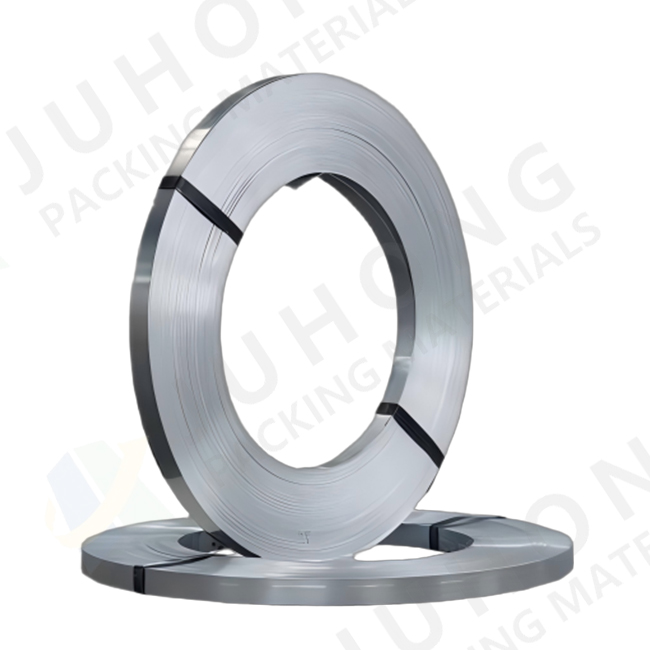

Bright/Cold Rolled


Bright steel strapping is cold rolled , process without heat treated and metal surface (silver-gray), It offers high cost performance and reduces procurement costs.

Placeholder Image

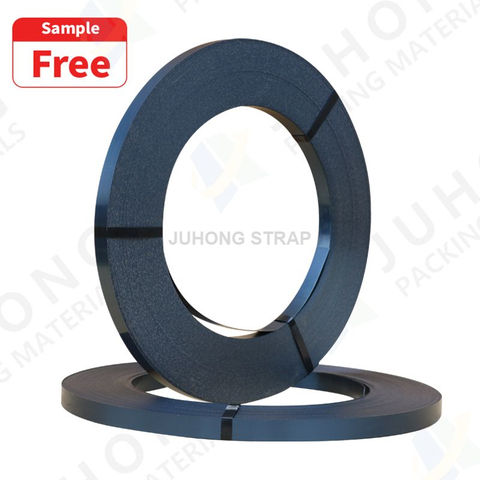

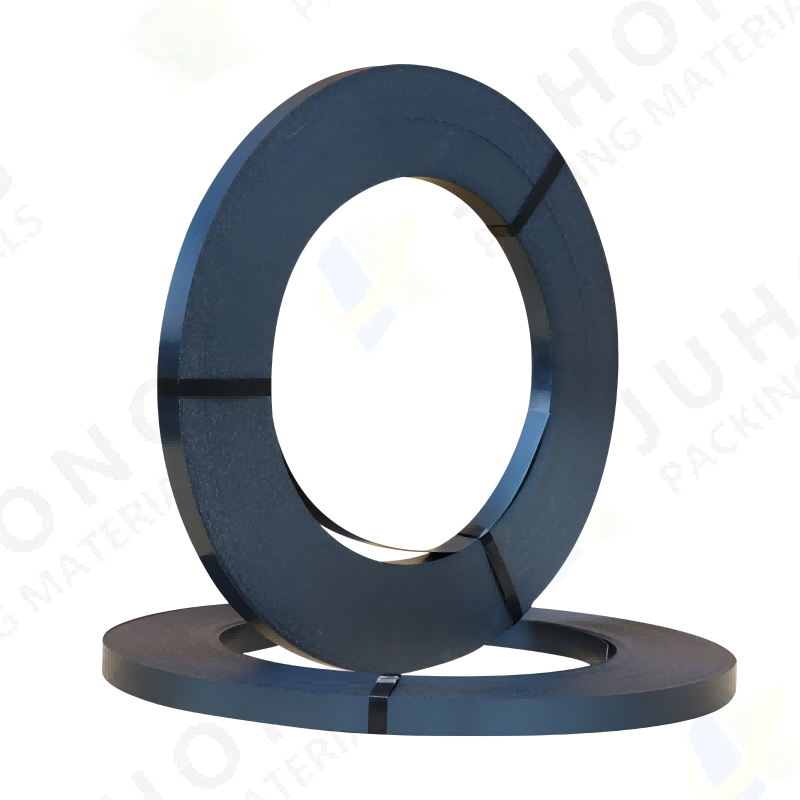

Blue Tempered & Waxed


Blue steel strapping adopts a special non-leadheat treatment process. At the same time, the formation of bluing film on the surface of the steel strapping and then coated a layer of water wax to form the double protection. It has excellent anti-corrosion performance to ensure long-lasting durability. Smooth and burr-free edges ensure safe handling.

Placeholder Image

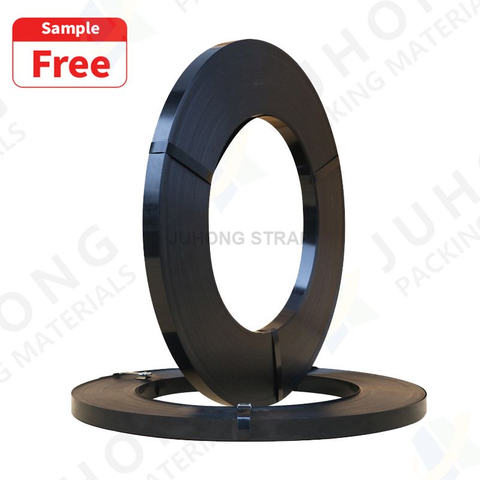

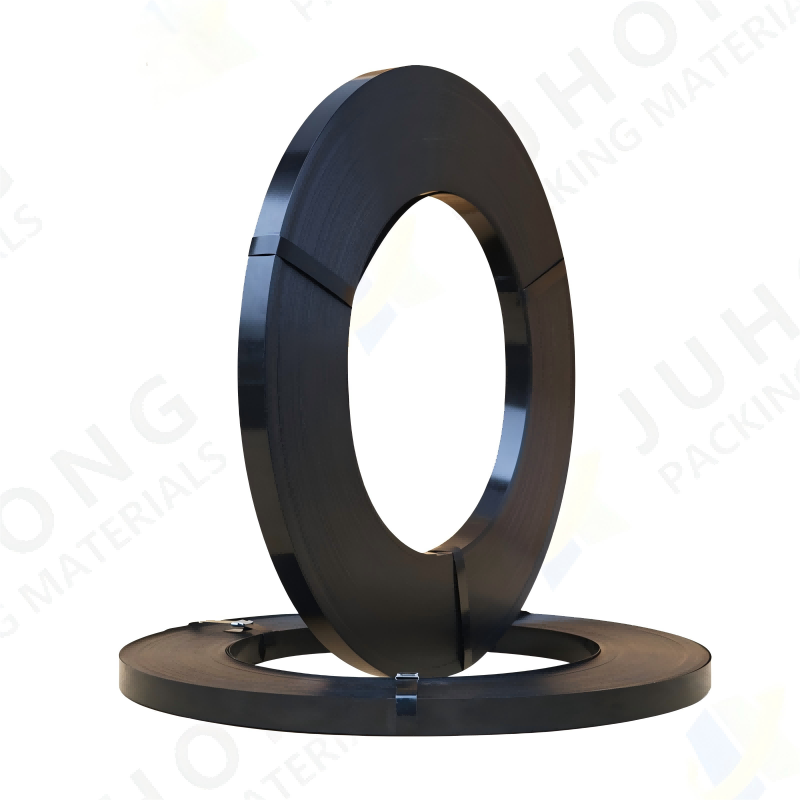

Black Painted & Waxed


Black Steel Strapping combines a high-quality coating with a uniform wax seal, delivering dual defense for exceptional corrosion resistance. Widely applied in demanding environments for bundling, securing, and transporting goods, it ensures safety and reliability.

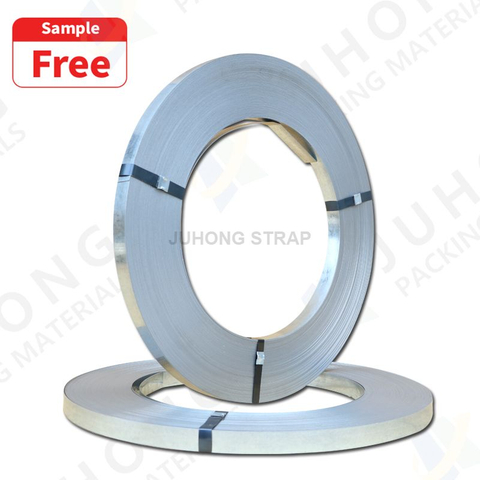

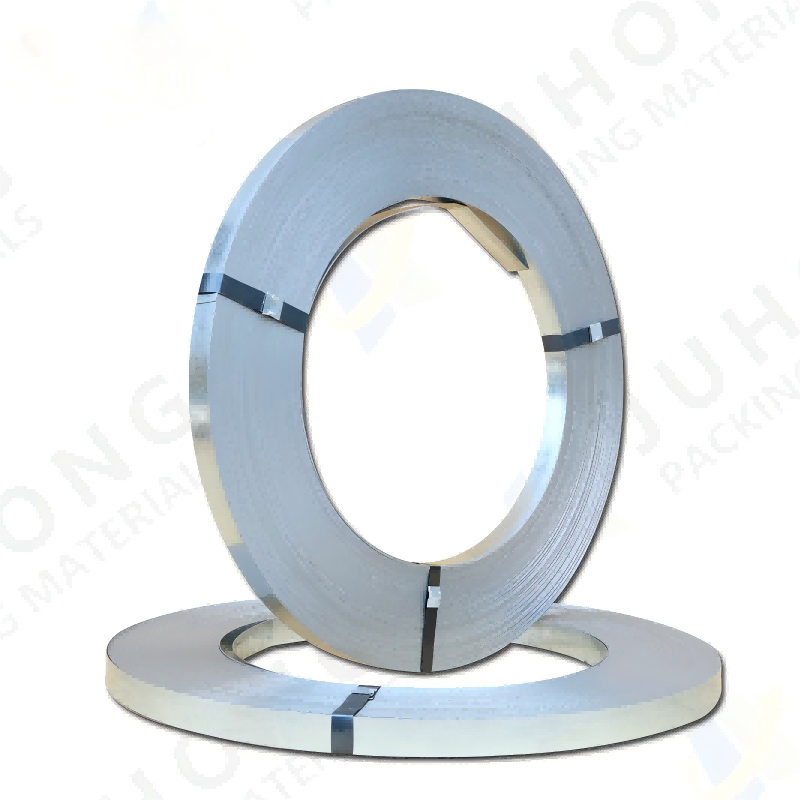

Placeholder ImageHot dip Galvanized


Galvanized steel strapping is cold rolled and a layer of zinc Hot dip plating on the surface,our company has used independent re-search and development technology The super corrosion re-sistant propertyof alumi-num-zinc coated steel strap completely solves the common problem of the stainless steel strapping in a short term play the role in anti-corrosion.

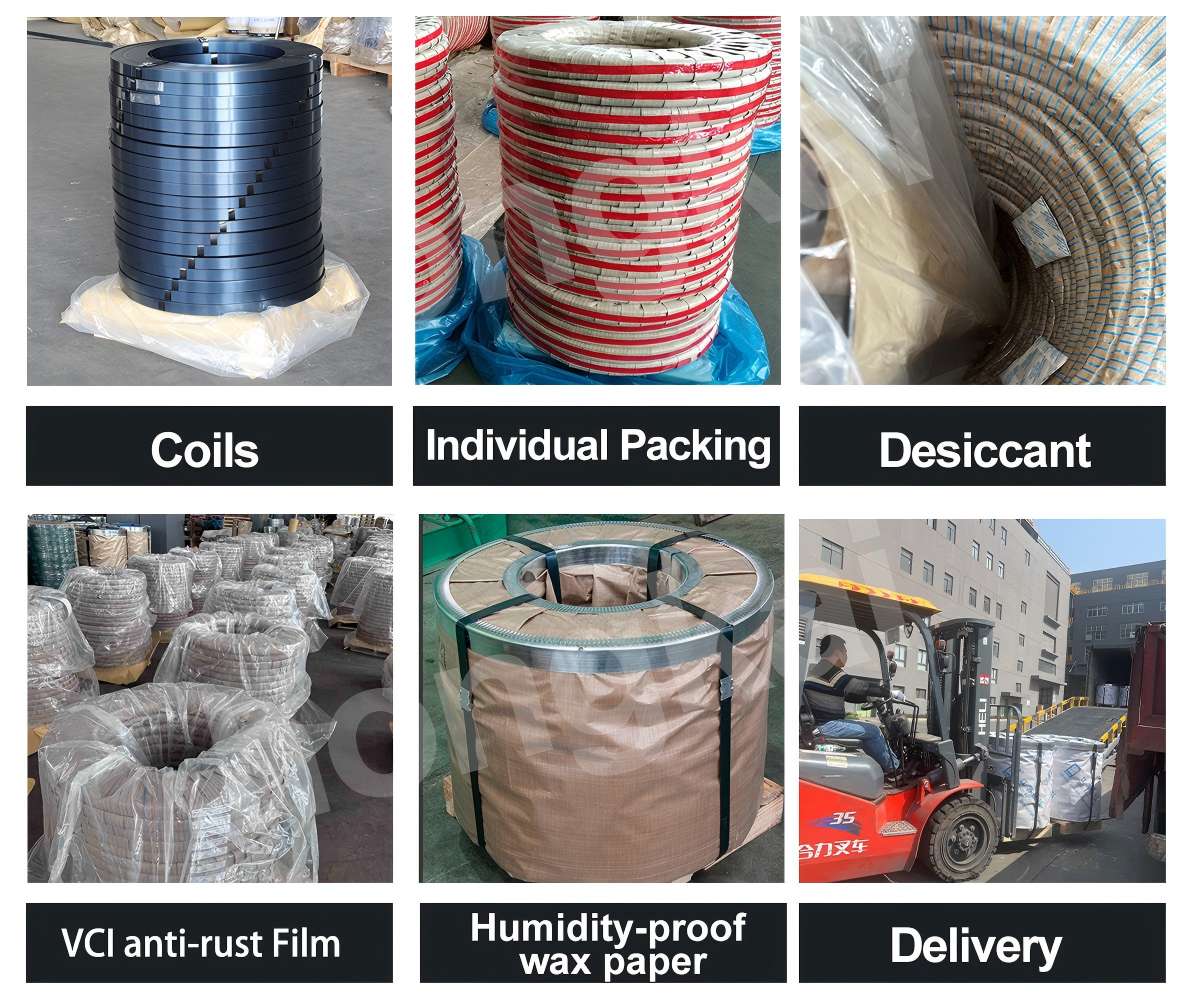

Steel Strapping of Packaging

Steel strapping packaging





Individual Packing (if required)


For orders that require individual packing, the steel strapping rolls are individually wrapped with VCI (Vapor Corrosion Inhibitor) paper during the production process. After that, all the rolls are placed on the pallets.






External Wrapping and Drying Agent


The entire pallet of steel strapping is then wrapped with VCI anti-rust film, and metal anti-rust desiccants are placed to prevent corrosion during transit.







Final Protection and Reinforcement


The outermost layer is covered with anti-rust neutral or customized kraft paper, and the entire pallet is secured with four steel straps to ensure it remains intact during transportation.





Loading into Containers


All the pallets are carefully loaded into the shipping containers, ensuring they are neatly arranged for safe and efficient transport.

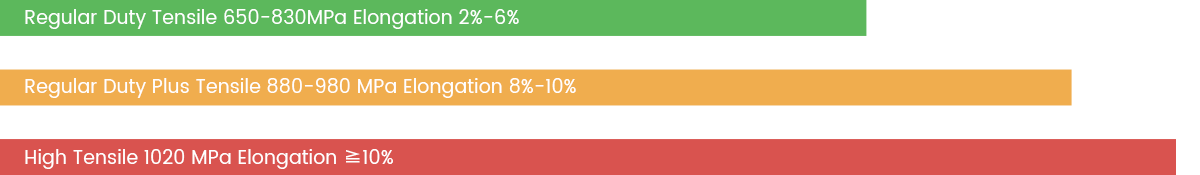

How To Choose The Right Steel Strapping?

Strength Grade Matching
How-To-Choose-The-Right-Steel-Strapping

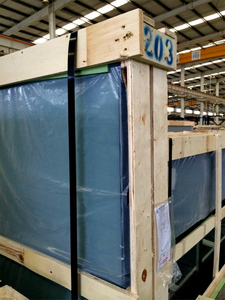

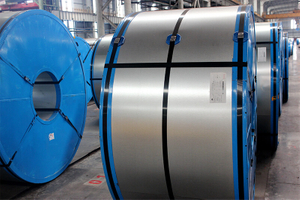

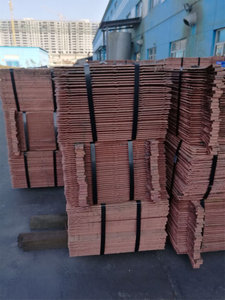

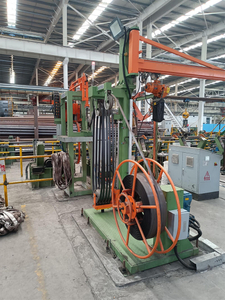

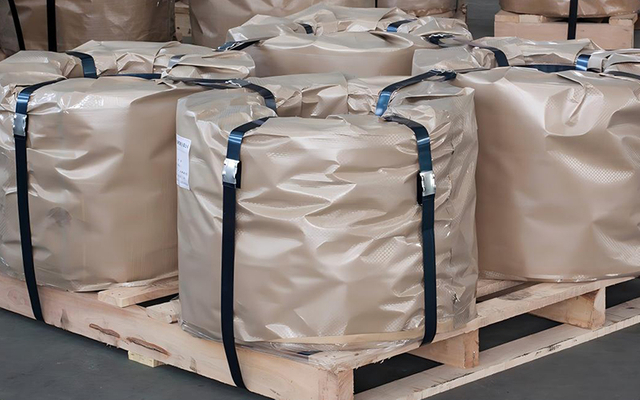

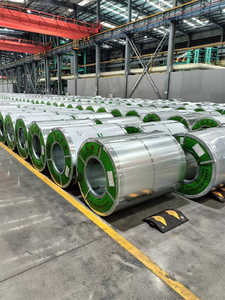

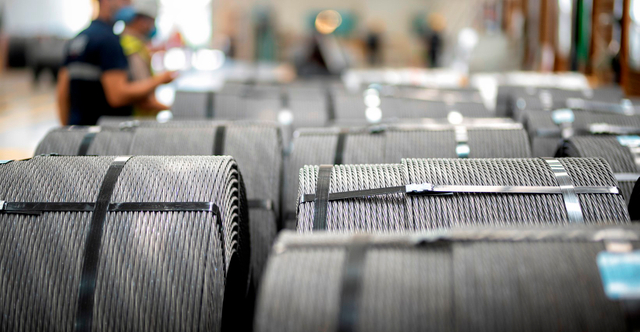

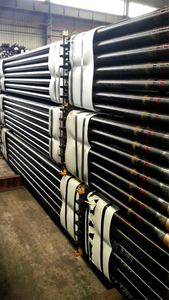

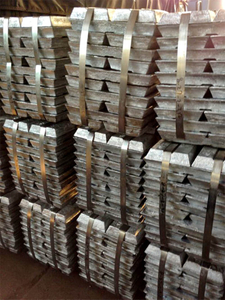

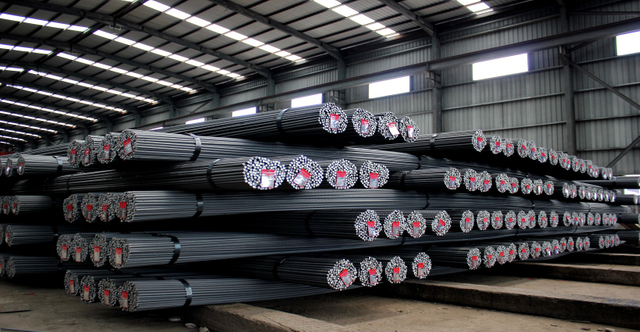

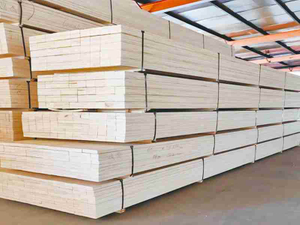

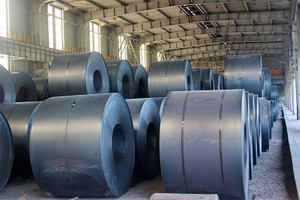

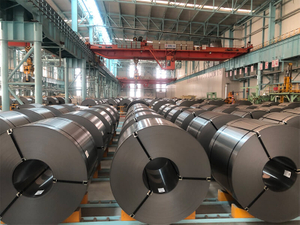

Steel Strapping Application

Our steel  straps are used in various sectors, from construction to logistics, ensuring safety and efficiency. Discover the diverse applications of our products.
JUHONF-packing-materials-factory

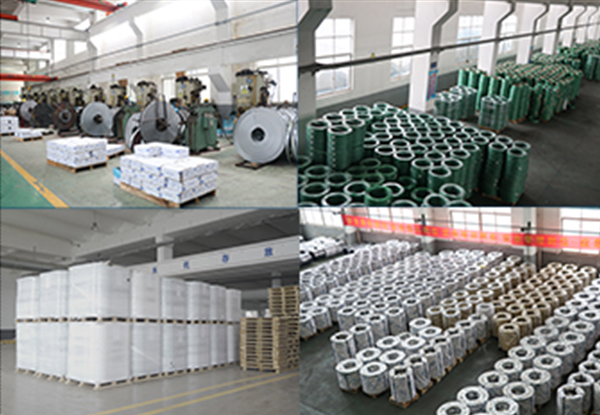

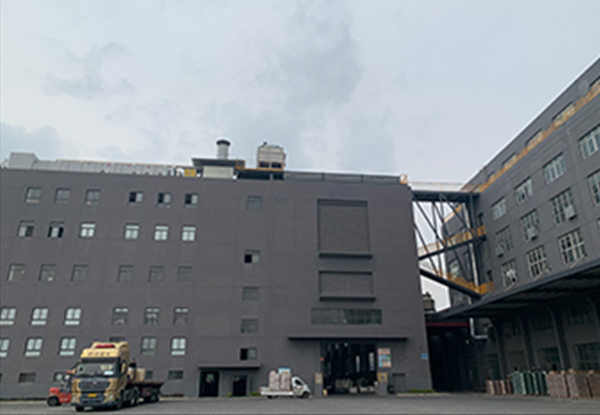

JUHONG: Your Steel Strapping Supplier

As a leading manufacturer of steel straps in the country, our facilities boast an impressive annual production capacity, including 60,000 tons of steel straps, 300 million steel seals, 12,000 tons of polyester straps, and 12,000 tons of wrapping film. What sets us apart is our unique position as the sole company in China that integrates the production of steel straps, polyester straps, PE wrapping film, and steel seals, offering our clients a comprehensive suite of services.

Jiangsu Juhong Strapping Manufacturing upholds a relentless spirit of innovation, consistently pushing the boundaries of our industry. Our commitment to elevating product quality and providing top-notch services has earned us widespread recognition from consumers and high praise within the industry.

Juhong in Figures

We take pirde in manufacturing top quality production of packing materials and we ar alwasys fortoward-looking.
 20000+m² 23+Production lines
27 years of production experience
1

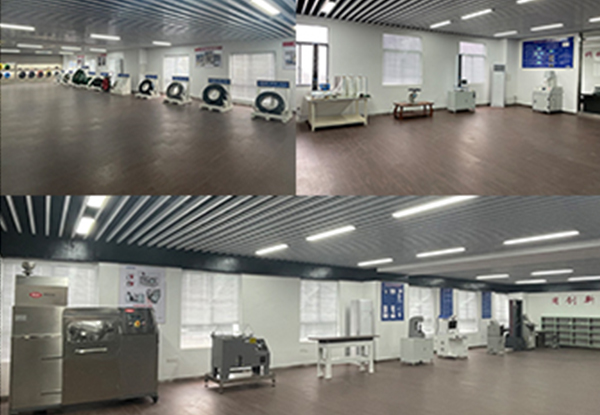

 500m² R&D QC&QA Center
Product research and development as well as product quality control
2
   Provide one-stop service The only company in China that integrates the production of steel straps, polyester straps, PE packaging films and strapping seals
3
 35+ Certificates
Rich Certificates for system and products
The-certificate-obtained-by-Juhong

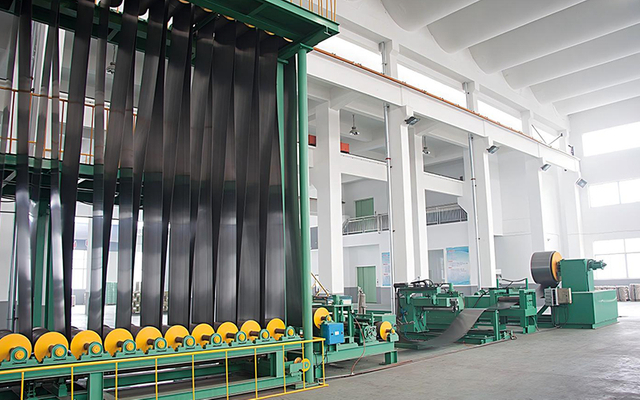

Steel Strapping Production Process

  • 1
    1.Uncoiler
  • 2

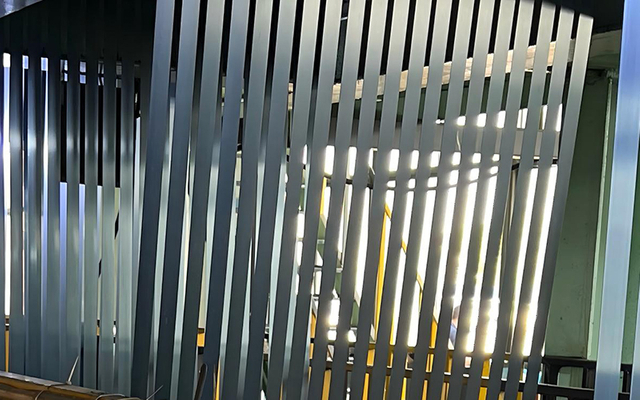

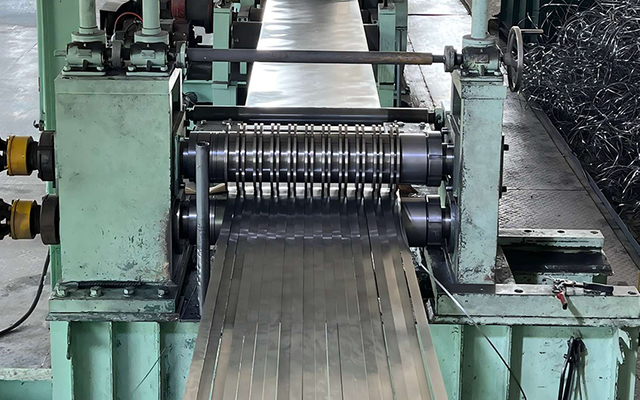

    2.Mini Slitter
  • 3
    3.Edge Smoother
  • 4

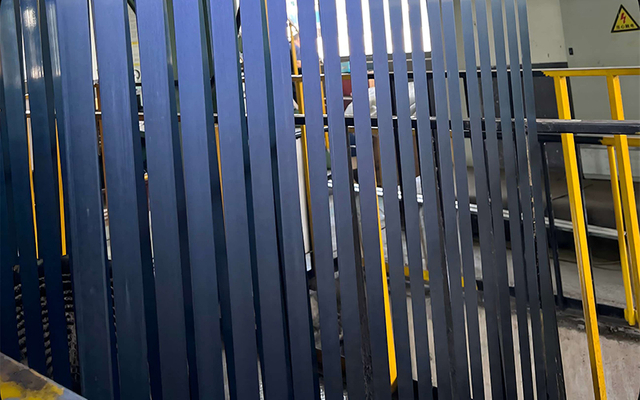

    4.Bluing Heat treatment
  • 5
    5.Cooling
  • 6
    6.Painting
  • 7
    7.Drying
  • 8

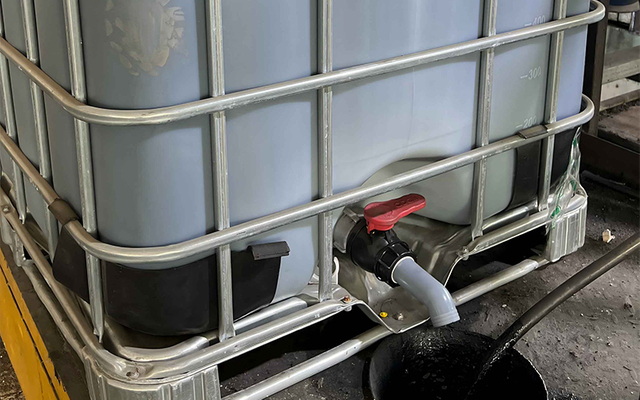

    8.Waxing
  • 9
    9.Drying

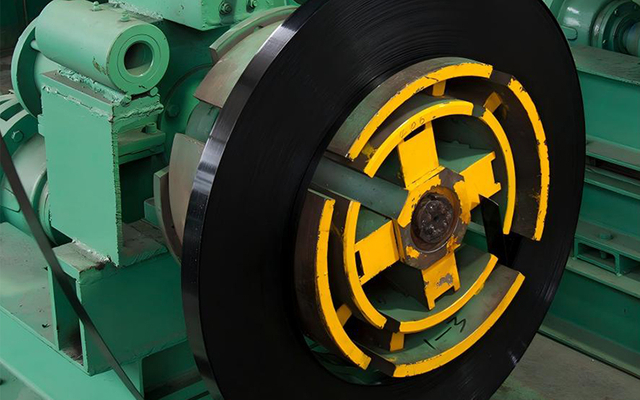

  • 10-Rewinding
    10 Rewinding
  • 11
    11.Packing
  • 12
    12.Delivery
Smooth edge with burr removal: Our steel strapping undergoes a proprietary deburring process, ensuring smooth, rounded edges that eliminate the risk of cuts or abrasions during handling. This feature not only enhances operator safety but also minimizes damage to packaged goods.

Our Customers Around The World

partner

Steel Strapping FAQ

  • Q Is the sample free?

    A Yes, if you need, we can provide free samples.

  • Q Are you factory direct sales?

    A Yes, we have our own factory. All of our products are with competitive price and excellent quality.

  • Q Can our private logo/label be printed on the packaging?

    A Yes, your own private logo/label can be printed on the packaging upon your legal authorization, we support OEM service according to our clients' requirement for many years.

  • Q How does your company control quality?

    A We have built a modern quality management system which is in strict accordance with international standards. We have attained ISO9001, ISO 14001 and OHSAS 18001.

  • Q When can I get the price?

    A We usually quote within 24 hours after getting your inquiry if you are urgent to get the price Please call us or tell us by email so that we will take your inquiry as a priority.

  • Q Can you make other sizes and packaging for this product?

    A Yes, we can produce other sizes of products according to your requirements, usually our quotation includes ordinary packaging.If you need your own parcel, we can discuss in advance in order to get the solution.

  • Q Why should we buy from us, not from other suppliers?

    A We Juhong Packing Materials has 27 years of experience in the production of packing materials. As a leading domestic manufacturer of packing materials, our facility boasts an annual production capacity of 60,000 tons of steel straps, 300 million steel seals, 12,000 tons of polyester straps, and 12,000 tons of wrapping film. offering clients a comprehensive one-stop solution.
